| SAP Material Number | 4051092 |
| ISO Catalog Number | E2FIX100505RHP |
| ANSI Catalog Number | E2FIX100505RHP |
| Grade | KCU10 |

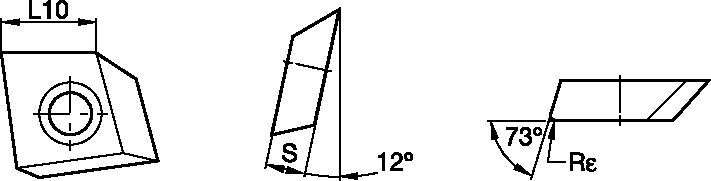

| [L10] Insert Cutting Edge Length | 10.5000 mm |
| [L10] Insert Cutting Edge Length | .4134 in |
| [S] Insert Thickness | 5.0000 mm |
| [S] Insert Thickness | .1970 in |
| [Rε] Corner Radius | 0.5000 mm |
| [Rε] Corner Radius | .0197 in |
Composition: An advanced multilayer PVD coating over a very deformation-resistant unalloyed carbide substrate. The new and improved coating improves edge stability with wide range speed and feed capabilities.
Application: The KCU10™ grade is ideal for finishing to general machining of most workpiece materials at a wide range of speed and feed capabilities. Excellent for machining most steels, stainless steels, cast irons, non-ferrous materials, and super alloys with improved edge toughness and higher cutting speed/feed capability.
