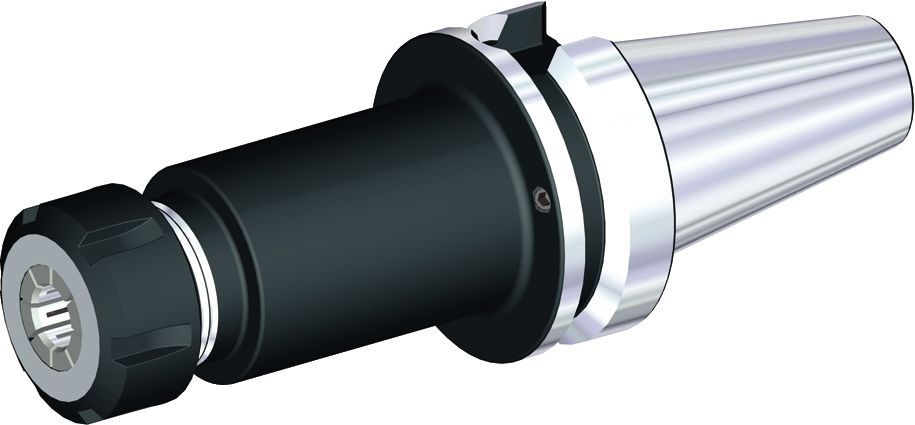

ER™ • BTKV40 Form B/AD
ER™ • BTKV40 Form B/AD
ER™ • BTKV40 Form B/AD
ER™ • BTKV40 Form B/AD
Select the files you wish to request
Downloads
Request {{cadTool}} format
{{cadTool}} format is not available

ER™ • BTKV40 Form B/AD

ER™ • BTKV40 Form B/AD

Metric
Inch
SAP Material Number 3857126
ISO Catalog Number BTKV40BER40080M
ANSI Catalog Number BTKV40BER40080M
[CST] Catalog Collet Series ER40
[D11] Lock Nut Diameter 63 mm
[D11] Lock Nut Diameter 2.48 in

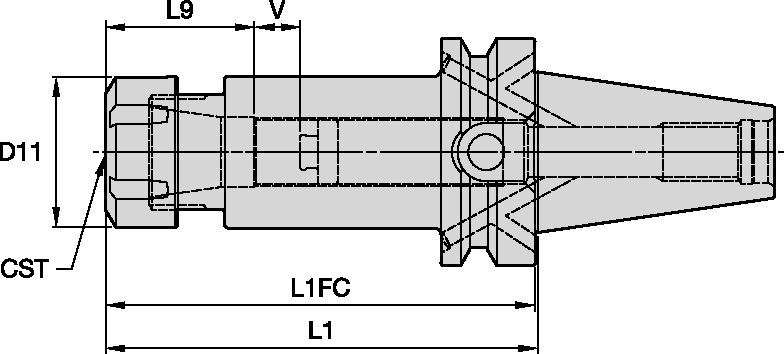

[L1] Gage Length 80 mm
[L1] Gage Length 3.15 in
Gage Length Face Contact [L1FC] 78.99 mm
Gage Length Face Contact [L1FC] 3.11 in
[L9] Clamping Length 52 mm
[L9] Clamping Hole Length 2.05 in
[V] Adjustment Range 9 mm
[V] Adjustment Range .3543 in
Weight Kilograms 1.39
Counter Bore Collet Torque Nm 176
Straight Collet Torque Nm 176
Stop Screw ID Drive Size 4 mm & 5/32
See all Product Variants

Uses and application

  • Shank - Cylindrical  PlainShank - Cylindrical Plain
  • Collet - ER DIN 6499Collet - ER DIN 6499
  • Axial Adjustment - EndAxial Adjustment - End
  • Drilling - Through CoolantDrilling - Through Coolant
  • Shank - Cylindrical with SquareShank - Cylindrical with Square
  • Shank - SK BT Taper Face ContactShank - SK BT Taper Face Contact
  • ER Solid ColletER Solid Collet
  • 100042741100042741
  • Shank - Screw-OnShank - Screw-On
  • Shank - M16 DrawbarShank - M16 Drawbar

Features and benefits

  • Grip (2:1 advantage).

Machine Side

loading...

Workpiece Side

loading...

Spare Parts for ER™ • BTKV40 Form B/AD

Spare Part
    STOP SCREW STOP SCREW
    STOP SCREW
    Spare Part
      COOLANT STOP SCREW COOLANT STOP SCREW
      COOLANT STOP SCREW
      Spare Part

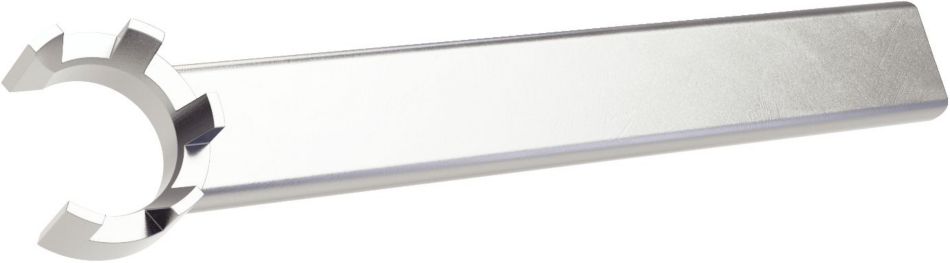

        WRENCH WRENCH
        WRENCH
        Spare Part
          10 V FORM B COOLANT SCREWS - COATED 10 V FORM B COOLANT SCREWS - COATED
          10 V FORM B COOLANT SCREWS - COATED
          Spare Part

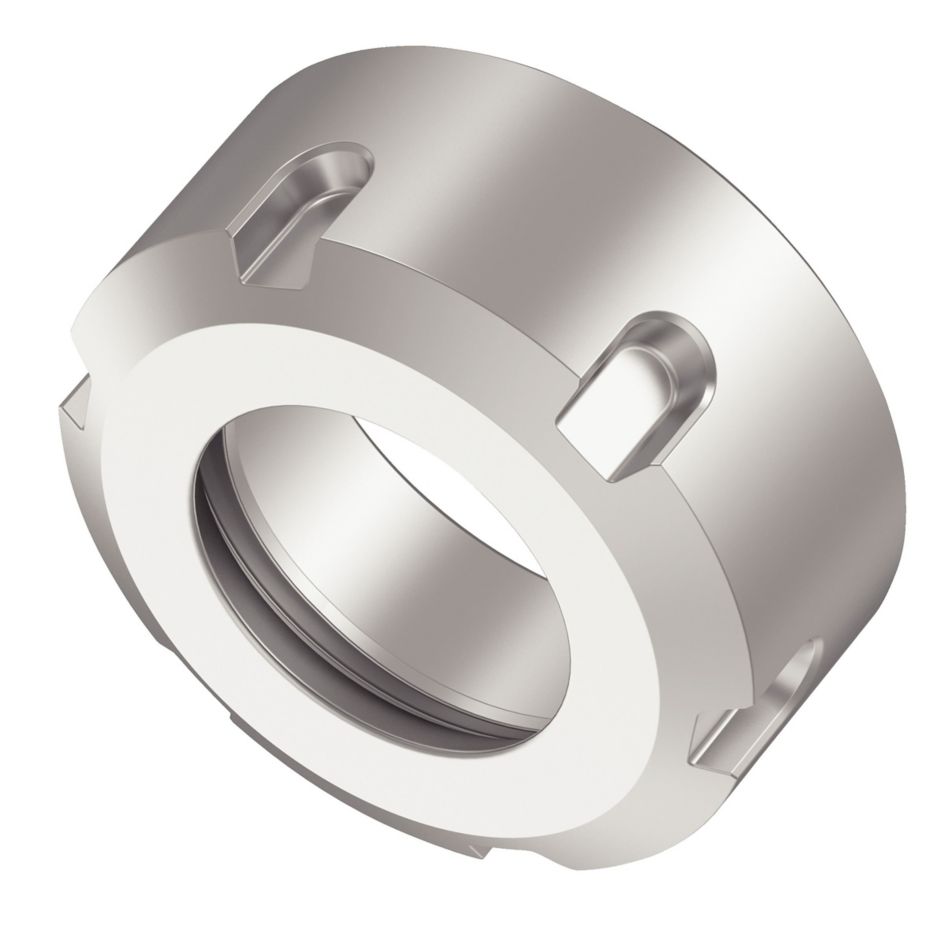

            ER40 Solid Lock Nut ER40 Solid Lock Nut
            ER40 Solid Lock Nut
            Spare Part
              ER40 Bearing Locknut ER40 Bearing Locknut
              ER40 Bearing Locknut
