FBX • Long • Taper Flange Mount
FBX • Long • Taper Flange Mount
Metric
Inch
| SAP Material Number | 6669818 |
| ISO Catalog Number | KSEMX6000FBX150BTF46M |
| ANSI Catalog Number | KSEMX6000FBX150BTF46M |

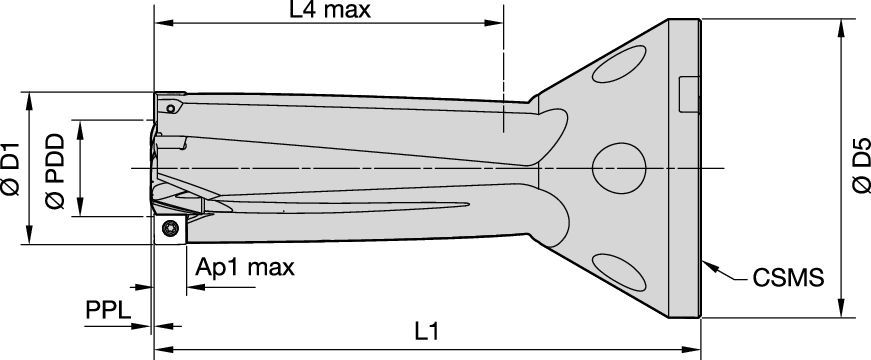

| [D1] Drill Diameter M | 60.0000 |
| [D1] Drill Diameter M | 2.362 |
| [PDD] Pilot Drill Cut Diameter | 38.0000 |
| [PDD] Pilot Drill Cut Diameter | 1.497 |
| DRL_PILOT_PROTRUSION_L_M | 0.2000 |
| DRL_PILOT_PROTRUSION_L_I | .0073 |
| [L1] Insert Gage Length | 215.0000 |
| [L1] Insert Gage Length | 8.461 |
| [L4] Maximum Drilling Depth | 150.0000 |
| [L4] Maximum Drilling Depth | 5.905 |
| [D5] Maximum Body Diameter | 117.4750 |
| [D5] Maximum Body Diameter | 4.625 |
| [SSC] Insert Seat Size | 10 |
Uses and application
Drilling: Convex
Drilling: X-Offset
Drilling
Drilling: Inclined Entry
Counter Boring
Drilling: Half-Cylindrical Drilling
Chain Drilling
Drilling: Flat Bottom
Plunge Milling
Workpiece Materials
P
Steel
M
Stainless Steel
K
Cast Iron
N
Non-Ferrous
S
High-Temp Alloys
H
Hardened Materials
Features and benefits
- Advanced drill body design for flat bottom drilling and plunging
- Two effective cutting edges in the center for maximum feed
- Four effective cutting edges on the outer diameter for highest productivity on plunging operations
- Interchangeable coolant nozzles in different sizes for optimized heat control
- Four flutes for reliable chip evacuation and highest tool stiffness
- BTF taper flange connection for maximum stability and flexibility
- Use the pocket seat size SSC to select a suitable center insert
Machine Side
loading...
Workpiece Side
loading...
Spare Parts for FBX • Long • Taper Flange Mount
Spare Part
COOLANT NOZZLE SCREW- 1.40MM HOLE
Spare Part
CLAMP SCR M6 / M6 x 32
Spare Part
KSEM INSERT FBX 38,000MM
Spare Part
INSERT SCR M3.5-0.6 x 8.9 T15
Spare Part
SCREW DRIVER FOR KSEM 10XD SW 3
Spare Part
TORX-WRENCH TX15
Spare Part
SCREW DRIVER FOR KSEM SW 3
Spare Part
Spare Part ANTI-SEIZE LUBRICANT
