HARVI™ III • Taper Ball Nose • 6 Flutes • Plain Shank • Inch

Name: HARVI™ III • Taper Ball Nose • 6 Flutes • Plain Shank • Inch
SKU: 5970230
Rating: 0 (0 reviews)

HARVI™ III Solid Carbide End Mill for 5-axis machining to Significantly Increase Output and Decrease Machining Time

Material Number5970230

ISO Catalog IDUJBE0375J6CPANSI Catalog IDUJBE0375J6CP

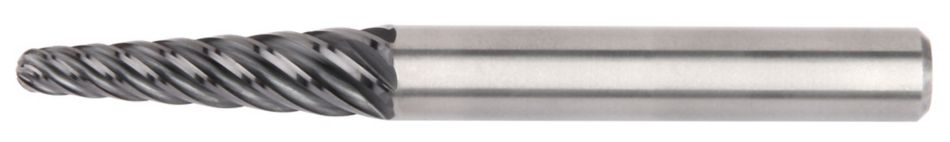

HARVI™ III - Taper Ball Nose - 6 Flutes - Plain Shank - Inch 5970230 - Kennametal

Open expanded view

Generic representation

List Price

$567.87/each

Discount

Your Price

/each

In StockThis item is no longer availableLonger Delivery

Material Pricing Group

Contact our sales team to discover all of your pricing options

This item is no longer available

P Steel
M Stainless Steel
S High-Temp Alloys
H Hardened Materials
Trochoidal Milling
Corner Style: Tapered Ball Nose
Side Milling/Shoulder Milling: Ball Nose
3D Profiling
Tool Dimensions: Flute Configuration: 6
Helix Angle: 38°

Overview
Application Data
Downloads
Compatible Parts Machine Side
Reviews
Q&A

Metric

Inch

Material Number	5970230
ISO Catalog ID	UJBE0375J6CP
ANSI Catalog ID	UJBE0375J6CP
Grade	KCSM15
Adapter Style Machine Side	Straight-Cylindrical
[AP1MAX] 1st Maximum Cutting Depth	39.688 mm
[AP1MAX] 1st Maximum Cutting Depth	1.5625 in
[L2] Head Length	50.001 mm
[L2] Head Length	1.9685 in
[LS] Shank Length	76.999 mm
[LS] Shank Length	3.0315 in
[KRA] ANSI Approach Angle	4
[Z] Number of Flutes	6
[D1] Effective Cutting Diameter	9.525 mm
[D1] Effective Cutting Diameter	0.375 in
[D] Adapter / Shank / Bore Diameter	15.875 mm
[D] Adapter / Shank / Bore Diameter	0.625 in
[L] Overall Length	127 mm
[L] Overall Length	5 in

See all Product Variants

Workpiece Materials

Steel
Stainless Steel
High-Temp Alloys
Hardened Materials

Uses and application

Trochoidal Milling
Corner Style: Tapered Ball Nose
Side Milling/Shoulder Milling: Ball Nose
3D Profiling
Tool Dimensions: Flute Configuration: 6
Helix Angle: 38°

Grades

KCSM15

Coated carbide grade with thick PVD coating and optimized chemistry
and process for increased wear resistance. Outstanding protection in milling stainless steel to mitigate crater, DOCN (depth-of-cut notching), and flank wear. Excellent performance up to 52 HRC.

Features and benefits

Versatile solid carbide end mill for 5-axis machining of steels, stainless steel, and high-temperature alloys.
Six flutes in ball nose section and taper section for highest metal removal rates.
Two taper angles for a broad range of applications.
HARVI™ III taper ball nose end mills feature unequal flute spacing for chatter-free machining at highest feed rates.
Centre cutting for plunging and ramping operations.

Create Solution to calculate Feeds and Speeds

After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.

Application Data

HARVI III • UJBE • Ball Nose • Unequal Flute Spacing • Roughing

Material Group				KCSM15A		Recommended feed per tooth (IPT = inch/th) for side milling.
				Cutting Speed vc SFM			D1 Diameter
				Cutting Speed vc SFM		frac.	1/8	3/16	1/4	5/16	3/8	7/16	1/2	5/8	3/4	1	1 1/4
		ap	ae	min	max	dec.	.1250	.1875	.2500	.3125	.3750	.4375	.5000	.6250	.7500	1.0000	1.2500
P	0	Ap max	0.4 x D	490	660	IPT	0.0009	0.0013	0.0018	0.0023	0.0027	0.0031	0.0034	0.0039	0.0044	0.0049	0.0049
	1	Ap max	0.4 x D	490	660	IPT	0.0009	0.0013	0.0018	0.0023	0.0027	0.0031	0.0034	0.0039	0.0044	0.0049	0.0049
	2	Ap max	0.4 x D	460	620	IPT	0.0009	0.0013	0.0018	0.0023	0.0027	0.0031	0.0034	0.0039	0.0044	0.0049	0.0049
	3	Ap max	0.4 x D	390	520	IPT	0.0007	0.0011	0.0015	0.0020	0.0023	0.0026	0.0029	0.0034	0.0039	0.0045	0.0048
	4	Ap max	0.4 x D	300	490	IPT	0.0007	0.0010	0.0014	0.0017	0.0020	0.0023	0.0026	0.0030	0.0034	0.0039	0.0040
	5	Ap max	0.4 x D	200	330	IPT	0.0006	0.0009	0.0012	0.0016	0.0018	0.0021	0.0023	0.0027	0.0031	0.0036	0.0039
	6	Ap max	0.4 x D	160	250	IPT	0.0005	0.0008	0.0010	0.0013	0.0015	0.0017	0.0019	0.0022	0.0025	0.0028	0.0029
M	1	Ap max	0.4 x D	300	380	IPT	0.0007	0.0011	0.0015	0.0020	0.0023	0.0026	0.0029	0.0034	0.0039	0.0045	0.0048
	2	Ap max	0.4 x D	200	260	IPT	0.0006	0.0009	0.0012	0.0016	0.0018	0.0021	0.0023	0.0027	0.0031	0.0036	0.0039
	3	Ap max	0.4 x D	200	230	IPT	0.0005	0.0008	0.0010	0.0013	0.0015	0.0017	0.0019	0.0022	0.0025	0.0028	0.0029
S	1	Ap max	0.4 x D	160	300	IPT	0.0007	0.0011	0.0015	0.0020	0.0023	0.0026	0.0029	0.0034	0.0039	0.0045	0.0048
	2	Ap max	0.4 x D	80	160	IPT	0.0004	0.0006	0.0008	0.0010	0.0012	0.0014	0.0015	0.0018	0.0021	0.0024	0.0026
	3	Ap max	0.4 x D	80	130	IPT	0.0004	0.0006	0.0008	0.0010	0.0012	0.0014	0.0015	0.0018	0.0021	0.0024	0.0026
	4	Ap max	0.4 x D	160	200	IPT	0.0005	0.0008	0.0011	0.0014	0.0017	0.0019	0.0021	0.0025	0.0028	0.0033	0.0036
H	1	Ap max	0.4 x D	260	460	IPT	0.0007	0.0010	0.0014	0.0017	0.0020	0.0023	0.0026	0.0030	0.0034	0.0039	0.0040

HARVI III • UJBE • Ball Nose • Unequal Flute Spacing • Roughing

Material Group				KCSM15A		Recommended feed per tooth (IPT = inch/th) for side milling.
				Cutting Speed vc SFM			D1 Diameter
				Cutting Speed vc SFM		frac.	1/8	3/16	1/4	5/16	3/8	7/16	1/2	5/8	3/4	1	1 1/4
		ap	ae	min	max	dec.	.1250	.1875	.2500	.3125	.3750	.4375	.5000	.6250	.7500	1.0000	1.2500
P	0	Ap max	0.06 x D	940	1250	IPT	0.0011	0.0016	0.0022	0.0028	0.0033	0.0037	0.0041	0.0047	0.0053	0.0059	0.0059
	1	Ap max	0.06 x D	940	1250	IPT	0.0011	0.0016	0.0022	0.0028	0.0033	0.0037	0.0041	0.0047	0.0053	0.0059	0.0059
	2	Ap max	0.06 x D	870	1180	IPT	0.0011	0.0016	0.0022	0.0028	0.0033	0.0037	0.0041	0.0047	0.0053	0.0059	0.0059
	3	Ap max	0.06 x D	750	1000	IPT	0.0009	0.0013	0.0018	0.0023	0.0027	0.0031	0.0035	0.0041	0.0046	0.0054	0.0058
	4	Ap max	0.06 x D	560	940	IPT	0.0008	0.0012	0.0017	0.0021	0.0025	0.0028	0.0031	0.0036	0.0040	0.0046	0.0048
	5	Ap max	0.06 x D	370	620	IPT	0.0007	0.0011	0.0015	0.0019	0.0022	0.0025	0.0028	0.0033	0.0037	0.0043	0.0047
	6	Ap max	0.06 x D	310	470	IPT	0.0006	0.0009	0.0012	0.0016	0.0018	0.0021	0.0023	0.0027	0.0030	0.0034	0.0035
M	1	Ap max	0.06 x D	560	720	IPT	0.0009	0.0013	0.0018	0.0023	0.0027	0.0031	0.0035	0.0041	0.0046	0.0054	0.0058
	2	Ap max	0.06 x D	370	500	IPT	0.0007	0.0011	0.0015	0.0019	0.0022	0.0025	0.0028	0.0033	0.0037	0.0043	0.0047
	3	Ap max	0.06 x D	370	440	IPT	0.0006	0.0009	0.0012	0.0016	0.0018	0.0021	0.0023	0.0027	0.0030	0.0034	0.0035
S	1	Ap max	0.06 x D	310	560	IPT	0.0009	0.0013	0.0018	0.0023	0.0027	0.0031	0.0035	0.0041	0.0046	0.0054	0.0058
	2	Ap max	0.06 x D	160	310	IPT	0.0005	0.0007	0.0010	0.0012	0.0015	0.0017	0.0018	0.0022	0.0025	0.0029	0.0032
	3	Ap max	0.06 x D	160	250	IPT	0.0005	0.0007	0.0010	0.0012	0.0015	0.0017	0.0018	0.0022	0.0025	0.0029	0.0032
	4	Ap max	0.06 x D	310	370	IPT	0.0006	0.0009	0.0013	0.0017	0.0020	0.0023	0.0026	0.0030	0.0034	0.0040	0.0043
H	1	Ap max	0.06 x D	500	870	IPT	0.0008	0.0012	0.0017	0.0021	0.0025	0.0028	0.0031	0.0036	0.0040	0.0046	0.0048

View MoreView Less

Tolerance

End Mill Tolerances
D1	tolerance	D	tolerance h6 + / -
All	+.000/- .002"	≤1/8"	+0/-.00024"
		1/8 1/4"	+0/-.00031"
		1/4 3/8"	+0/-.00035"
		3/8 23/32"	+0/-.00043"
		23/32 1-3/16"	0/.00051"

View MoreView Less

I have read and accepted the Terms & Conditions of use

CAD Drawings Models

Can’t find the file type you’re looking for?

Product data

SDS

Safety Data Sheets

Create Solution to find the perfect compatible parts for your tool.

Product Name

Material Number

ISO Catalog ID

ANSI Catalog ID
