      Inserts for KSSM 45° • SEKT-GP2

      Indexable Inserts

      SAP Material Number 2390259
      ISO Catalog Number SEKT1404AEENGP2
      ANSI Catalog Number SEKT443AEEN7GP2
      Grade KCK15

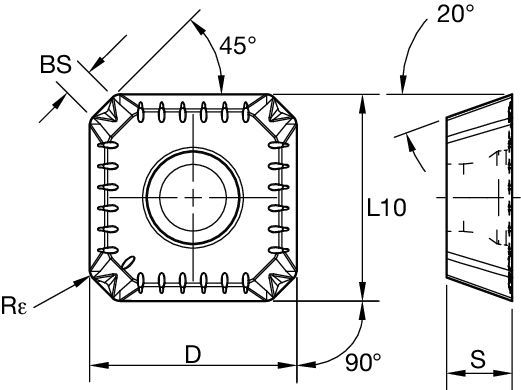

      [D] Insert IC Size 14.0000 mm
      [D] Insert IC Size .5512 in
      [BS] Corner Facet Length 2.6450 mm
      [BS] Corner Facet Length .1040 in
      [L10] Insert Cutting Edge Length 14.0000 mm
      [L10] Insert Cutting Edge Length .5512 in
      [Rε] Corner Radius 1.0000 mm
      [Rε] Corner Radius .0390 in
      [S] Insert Thickness 4.7630 mm
      [S] Insert Thickness .1875 in
      Average Chip Thickness [HM] 0.0510 mm
      Average Chip Thickness [HM] .0020 in
      Cutting Edges per Insert 4
      See all Product Variants

      Workpiece Materials

      K Cast Iron

      Machine Side


      Workpiece Side



      • KCK15

        Coated carbide grade with CVD multilayer coating (TiN/MT TiCN/Al2O3) and advanced Beyond™ post-coat treatment. KCK15 is a wear-resistant grade with balanced toughness for general milling of cast irons at higher speeds. Best results in dry, but can also be used wet.

        K Cast Iron
