KenCut™ KS • F3AU • Radiused • 3 Flutes • Weldon® Shank • Metric

KenCut™ KS Solid Carbide End Mill for Keyway Milling

Metric
Inch
SAP Material Number 4061087
ISO Catalog Number F3AU0480BDK38
ANSI Catalog Number F3AU0480BDK38
Grade KC643M
Adapter Style Machine Side Weldon

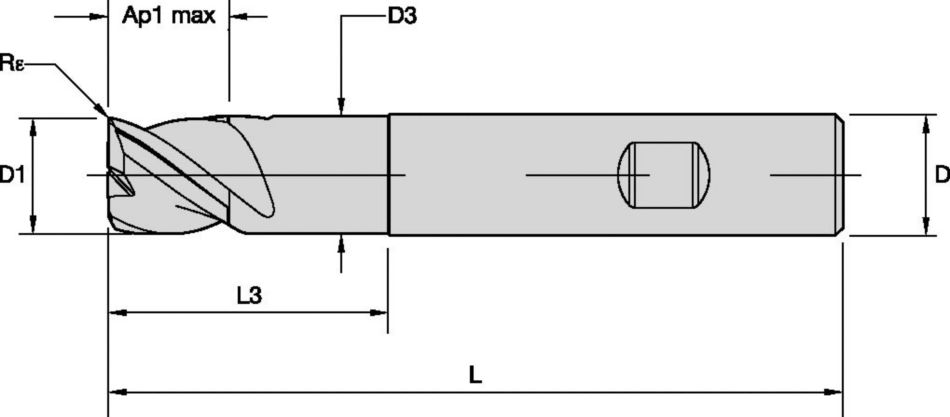

[D1] Effective Cutting Diameter 4.8 mm
[D1] Effective Cutting Diameter .189 in
[D] Adapter / Shank / Bore Diameter 6 mm
[D] Adapter / Shank / Bore Diameter .2362 in
[D3] Neck Diameter 4.71 mm
[D3] Neck Diameter .1854 in
[AP1MAX] 1st Maximum Cutting Depth 6 mm
[AP1MAX] 1st Maximum Cutting Depth .2362 in
[L3] Usable Length 16 mm
[L3] Usable Length .6299 in
[L] Overall Length 54 mm
[L] Overall Length 2.126 in
[Re] Corner Radius 0.2 mm
[Re] Corner Radius .0079 in
[Z] Number of Flutes 3
See all Product Variants
Create Solution to calculate Feeds & Speeds

Uses and application

  • Plunge MillingPlunge Milling
  • Ramping: BlankRamping: Blank
  • Slotting: Square EndSlotting: Square End
  • Side Milling/Shoulder Milling: Square EndSide Milling/Shoulder Milling: Square End
  • Tool Dimensions: Flute Configuration: 3Tool Dimensions: Flute Configuration: 3
  • Helix Angle: 38°Helix Angle: 38°
  • Corner Style: Corner RadiusCorner Style: Corner Radius

Workpiece Materials

P Steel
M Stainless Steel
K Cast Iron
S High-Temp Alloys
H Hardened Materials

Features and benefits

  • Keyway cutter for slot machining of shaft to hub connections.

  • For production of key slots according to ISO standards.

  • Roughing and finishing with one tool.

  • Center cutting for plunging and ramping operations.

  • Unequal flute spacing for chatter-free machining at highest feed rates.
