Drilling
Corner Style: Corner ChamferDownloaded file will be available after import in the {{cadTool}} tool library.

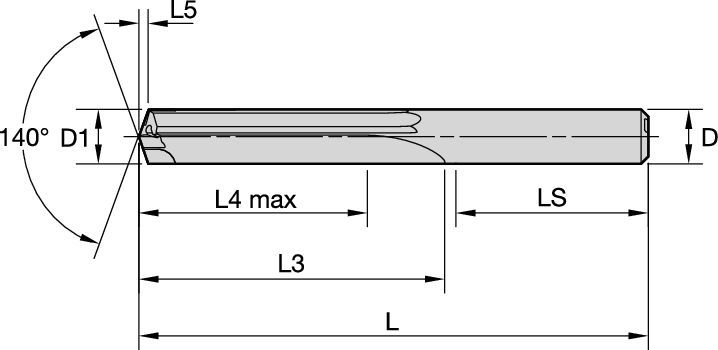

| Material Number | 6761199 |
| ISO Catalog ID | K467A02812SP |
| ANSI Catalog ID | K467A02812SP |
| Grade | KD1415 |
| [D1] Drill Diameter M | 7.1438 mm |
| [D1] Drill Diameter M | 0.2813 in |
| [L] Overall Length | 91.5 mm |
| [L] Overall Length | 3.6024 in |
| [L3] Flute Length | 50.5 mm |
| [L3] Flute Length | 1.9882 in |
| [L4] Maximum Drilling Depth | 40.3 mm |
| [L4] Maximum Drilling Depth | 1.5866 in |
| [L5] Drill Point Length | 1.2141 mm |
| [L5] Drill Point Length | 0.0478 in |
| [LS] Shank Length | 38.5 mm |
| [LS] Shank Length | 1.5157 in |
| [D] Adapter / Shank / Bore Diameter | 7.9375 mm |
| [D] Adapter / Shank / Bore Diameter | 0.3125 in |
DrillingCorner Style: Corner ChamferGrades
KD1415
PCD-tip brazed to carbide for general machining of aluminum with a low silicon content, non-ferrous heavy metals, and plastics. KD1415™ can be used at high cutting speeds and for continuous cutting, even where outstanding surface finishes are required. KD1415 is suitable for wet and dry machining.
Create Solution to calculate Feeds and Speeds
After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.
| Material |  |  | |||||||||
| Cutting Speed | Inch | ||||||||||
| Range | Recommended Feed Rate (f) by Diameter | ||||||||||
| Min | Starting Value | Max | 1/4 .250 | 5/16 .313 | 3/8 .375 | 1/2 .500 | 5/8 .625 | 3/4 .750 | |||
| N | 1 | 490 | 980 | 1970 | IPR | .004–.007 | .005–.008 | .006–.009 | .006–.009 | .007–.010 | .008–.011 |
| 2 | 490 | 820 | 1640 | IPR | .005–008 | .006–.009 | .006–.009 | .007–.010 | .008–.011 | .009–.012 | |
| 3 | 490 | 490 | 1310 | IPR | .004–.007 | .005–.008 | .006–.009 | .006–.009 | .007–.010 | .008–.011 | |
| 4 | 330 | 560 | 820 | IPR | .004–.007 | .005–.008 | .006–.009 | .006–.009 | .007–.010 | .008–.011 | |
| Material | |  | |||||||||
| Cutting Speed | Metric | ||||||||||
| Range | Recommended Feed Rate (f) by Diameter | ||||||||||
| Min | Starting Value | Max | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 | |||
| N | 1 | 150 | 300 | 600 | mm/r | 0,10–0,18 | 0,12–0,20 | 0,14–0,22 | 0,16–0,24 | 0,18–0,26 | 0,20–0,28 |
| 2 | 150 | 250 | 500 | mm/r | 0,12–0,20 | 0,14–0,22 | 0,16–0,24 | 0,18–0,26 | 0,20–0,28 | 0,22–0,30 | |
| 3 | 150 | 150 | 400 | mm/r | 0,10–0,18 | 0,12–0,20 | 0,14–0,22 | 0,16–0,24 | 0,18–0,26 | 0,20–0,28 | |
| 4 | 100 | 170 | 250 | mm/r | 0,10–0,18 | 0,12–0,20 | 0,14–0,22 | 0,16–0,24 | 0,18–0,26 | 0,20–0,28 | |
| Material | | | |||||||||
| Cutting Speed | Metric | ||||||||||
| Range | Recommended Feed Rate (f) by Diameter | ||||||||||
| Min | Starting Value | Max | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 | |||
| N | 1 | 150 | 300 | 600 | mm/r | 0,10–0,18 | 0,12–0,20 | 0,14–0,22 | 0,16–0,24 | 0,18–0,26 | 0,20–0,28 |
| 2 | 150 | 250 | 500 | mm/r | 0,12–0,20 | 0,14–0,22 | 0,16–0,24 | 0,18–0,26 | 0,20–0,28 | 0,22–0,30 | |
| 3 | 150 | 150 | 400 | mm/r | 0,10–0,18 | 0,12–0,20 | 0,14–0,22 | 0,16–0,24 | 0,18–0,26 | 0,20–0,28 | |
| 4 | 100 | 170 | 250 | mm/r | 0,10–0,18 | 0,12–0,20 | 0,14–0,22 | 0,16–0,24 | 0,18–0,26 | 0,20–0,28 | |
| nominal size range | D1 tolerance m7 | D tolerance h6 |
| 1–3 | 0,002/0,012 | 0,000/-0,006 |
| 3–6 | 0,004/0,016 | 0,000/-0,008 |
| 6–10 | 0,006/0,021 | 0,000/-0,009 |
| 10–18 | 0,007/0,025 | 0,000/-0,011 |
| 18–25,4 | 0,008/0,029 | 0,000/-0,013 |
| nominal size range | D1 tolerance m7 | D tolerance h6 |
| .0394–.1181 | .0001/.0005 | .0000/-.0002 |
| .0002/.0006 | .0000/-.0003 | |
| .0002/.0008 | .0000/-.0004 | |
| .0003/.0010 | .0000/-.0004 | |
| .0003/.0011 | .0000/-.0005 |
