KM-CLR-VDI • Right Angle


SAP Material Number 1145077
ISO Catalog Number KM40CLRLVDI4040
ANSI Catalog Number KM40CLRLVDI4040

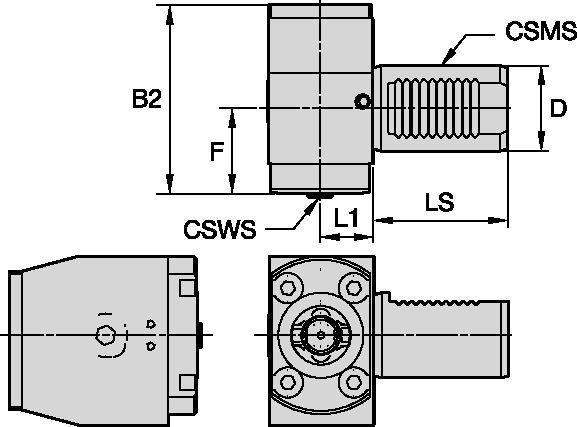

[CSWS] System Size Workpiece Side KM40
[CSMS] System Size Machine Side VDI40
[D] Adapter / Shank / Bore Diameter 40 mm
[D] Adapter / Shank / Bore Diameter 1.574 in
[F] F Dimension 40 mm
[F] F Dimension 1.575 in
[B2] Overall Width 88.5 mm
[B2] Overall Width 3.484 in
[L1] Gage Length 25 mm
[L1] Gage Length .9843 in
[LS] Shank Length 63 mm
[LS] Shank Length 2.48 in
Actuation Screw ID Drive Size 8 mm
See all Product Variants

Uses and application

  • Coolant - Through CoolantCoolant - Through Coolant
  • Shank: Cylindrical VDI DIN 69880Shank: Cylindrical VDI DIN 69880
