Trochoidal Milling
Through Coolant - Solid End Mill
Helical Milling
Ramping: 4°
Corner Style: Corner Radius
Side Milling/Shoulder Milling: Roughing
SAFE-LOCK ShankDownloaded file will be available after import in the {{cadTool}} tool library.
| Material Number | 6974940 |
| ISO Catalog ID | KOR5RA1600L080SLR050IM |
| ANSI Catalog ID | KOR5RA1600L080SLR050IM |
| Grade | K600 |
| Adapter Style Machine Side | SAFE-LOCK |

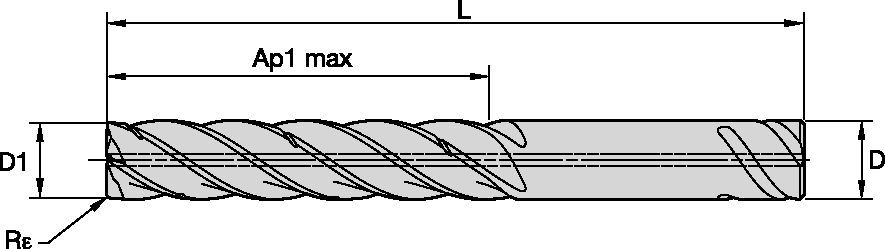

| [D1] Effective Cutting Diameter | 16 mm |
| [D1] Effective Cutting Diameter | 0.6299 in |
| [D] Adapter / Shank / Bore Diameter | 16 mm |
| [D] Adapter / Shank / Bore Diameter | 0.6299 in |
| [AP1MAX] 1st Maximum Cutting Depth | 80 mm |
| [AP1MAX] 1st Maximum Cutting Depth | 3.1496 in |
| [L] Overall Length | 141 mm |
| [L] Overall Length | 5.5512 in |
| [Re] Corner Radius | 0.5 mm |
| [Re] Corner Radius | 0.02 in |
| [Z] Number of Flutes | 5 |
Trochoidal MillingThrough Coolant - Solid End MillHelical MillingRamping: 4°Corner Style: Corner RadiusSide Milling/Shoulder Milling: RoughingSAFE-LOCK ShankGrades
K600
Carbide grade made from high-quality, micrograin materials for cutting all types of workpiece materials. Very high toughness ensures a controlled wear rate. The micrograin structure enables extremely sharp cutting edges.
Create Solution to calculate Feeds and Speeds
After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.
| Material |  |  | K600 | Recommended feed per tooth (fz = mm/th) | |||||||||
| A | B | Cutting Speed | D1 | ||||||||||
| ap | ae | ap | Min | Max | mm | 10,0 | 12,0 | 16,0 | 20,0 | 25,0 | |||
| N | 1 | 0,5 x D1 | 0,5 x D1 | 0,25 x D1 | 200 | – | 2000 | fz | 0,080 | 0,120 | 0,160 | 0,200 | 0,225 |
| 2 | 0,5 x D1 | 0,5 x D1 | 0,25 x D1 | 200 | – | 1500 | fz | 0,070 | 0,110 | 0,140 | 0,180 | 0,213 | |
| |  | |||||||||||
| Side Milling (A) and Slotting (B) | K600 | Recommended feed per tooth (IPT = inch/th) | |||||||||||
| D1 | |||||||||||||
| Material | A | B | Cutting Speed | frac. | 3/8 | 1/2 | 5/8 | 3/4 | 1 | ||||
| ap | ae | ap | min | max | dec. | .3750 | .5000 | .6250 | .7500 | 1.0000 | |||
| N | 1 | 0.5 x D1 | 0.5 x D1 | 0.25 x D1 | 640 | – | 6560 | IPT | 0.0030 | 0.0050 | 0.0060 | 0.0080 | 0.0090 |
| 2 | 0.5 x D1 | 0.5 x D1 | 0.25 x D1 | 640 | – | 4920 | IPT | 0.0025 | 0.0045 | 0.0055 | 0.0070 | 0.0085 | |
| Ae/D1 | 2% | 5% | 10% | 20% | 30% | 40% | 50% | 100% |
| Max Ap | Ap1 Max | Ap1 Max | Ap1 Max | Ap1 Max | 2 x D1 | 1 x D1 | 0,5 x D1 | 0,25 x D1 |
| Feed Multiplier (KFz) | 3,60 | 2,30 | 1,70 | 1,25 | 1,09 | 1,02 | 1,00 | 0,90 |
| Ae/D1 | 2% | 5% | 10% | 20% | 30% | 40% | 50% | 100% |
| Max Ap | Ap1 Max | Ap1 Max | Ap1 Max | Ap1 Max | 2 x D1 | 1 x D1 | .5 x D1 | .25 x D1 |
| Feed Multiplier | 3.60 | 2.30 | 1.70 | 1.25 | 1.09 | 1.02 | 1.00 | .90 |
