      Installation Bit
      Installation Bit
      Select the files you wish to request
      Download CAD Drawings

      KPF Installation Bit

      Installation Bit

      Metric
      Inch
      SAP Material Number 1968708
      ISO Catalog Number KPF-INSTL BIT
      ANSI Catalog Number KPF-INSTL BIT
      [LS] Shank Length 44.4 mm
      [LS] Shank Length 1.74 in
      [LU] Usable Length 29.8000 mm
      [LU] Usable Length 1.180 in
      See all Product Variants

      Features and benefits

      • For installation of KPF200 and KPF300 system bushings and sleeves.

      Machine Side

      loading...

      Workpiece Side

      loading...

      Spare Parts for KPF Installation Bit

      Spare Part

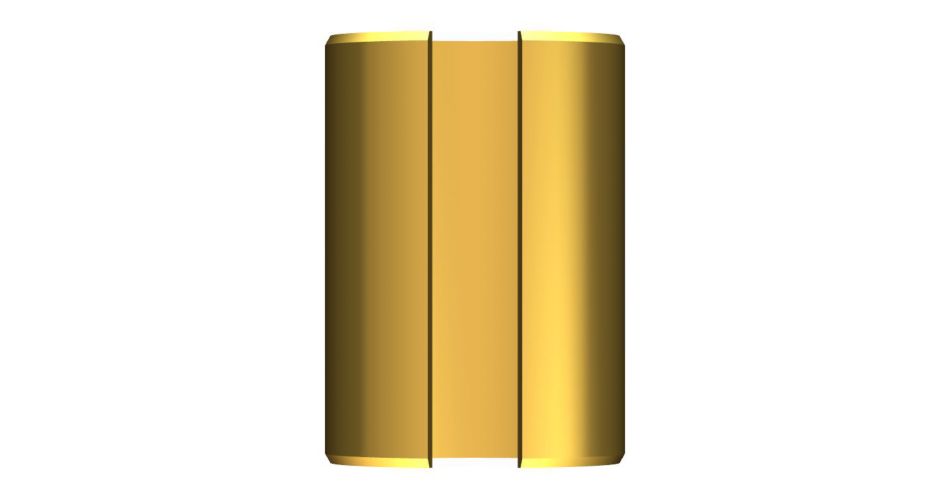

        Retainer LR76 Retainer LR76
        Retainer LR76
