KTMD U Style Cutter 3/8" iC Weldon

KTMD • U Style • 3/8" IC • Cutter Bodies

SAP Material Number 5593104
ISO Catalog Number KTMDUWD42L120Z4
ANSI Catalog Number KTMDUWD42L120Z4

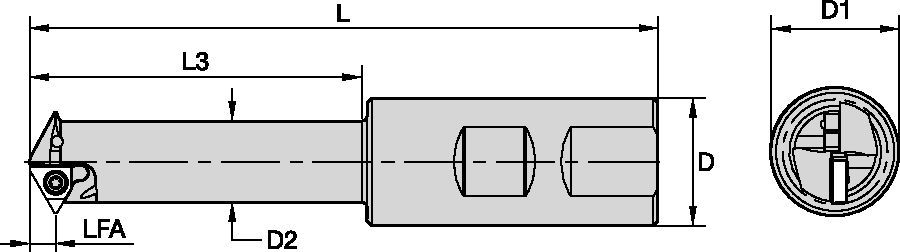

[D1] Effective Cutting Diameter 42 mm
[D1] Effective Cutting Diameter 1.654 in
[D] Adapter / Shank / Bore Diameter 40 mm
[D] Adapter / Shank / Bore Diameter 1.575 in
[D2] Maximum Body Diameter 34.2 mm
[D2] Maximum Body Diameter 1.346 in
[L] Overall Length 201 mm
[L] Overall Length 7.913 in
[L3] Usable Length 128 mm
[L3] Usable Length 5.039 in
[LF] Functional Length 193 mm
[LF] Functional Length 7.598 in
[LFA] LF A Dimension 8 mm
[LFA] LF A Dimension .315 in
Number of Inserts 4
Max RPM 3430
See all Product Variants

Workpiece Materials

P Steel
M Stainless Steel
K Cast Iron
S High-Temp Alloys
H Hardened Materials

Machine Side


Workpiece Side
