| Material Number | 3594302 |
| ISO Catalog ID | LNUX191940RRSM |
| ANSI Catalog ID | LNUX191940RRSM |
| Grade | KC9110 |

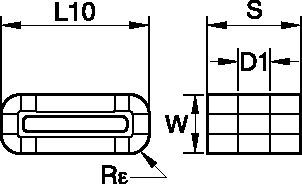

| [W] Insert Width | 10 mm |
| [W] Insert Width | 0.394 in |
| [L10] Insert Cutting Edge Length | 19 mm |
| [L10] Insert Cutting Edge Length | 0.748 in |
| [S] Insert Thickness | 19.05 mm |
| [S] Insert Thickness | 0.75 in |
| [Rε] Corner Radius | 4 mm |
| [Rε] Corner Radius | 0.157 in |
| [D1] Insert Hole Size | 6.35 mm |
| [D1] Insert Hole Size | 0.25 in |
Grades
KC9110
Composition: Specially engineered, cobalt-enriched carbide grade with thick K-MTCVD-TiCN coating layer, an Al2O3 layer of controlled grain size, and outer layers of TiCN and TiN for maximum abrasion and wear resistance for high-speed machining.
Application: An excellent finishing to medium machining grade for a variety of workpiece materials including most steels, ferritic and martensitic stainless steels, and cast irons. A balanced combination of deformation resistance and edge toughness. The smooth coating resists built-up edge and microchipping. For rougher cutting, use the KC9125 grade.
