Face Milling
Helical Milling
Ramping: Blank
Slotting: Square End
Side Milling/Shoulder Milling: Square End
Shank - Cylindrical Plain
Milling - Through Coolant
PocketingDownloaded file will be available after import in the {{cadTool}} tool library.

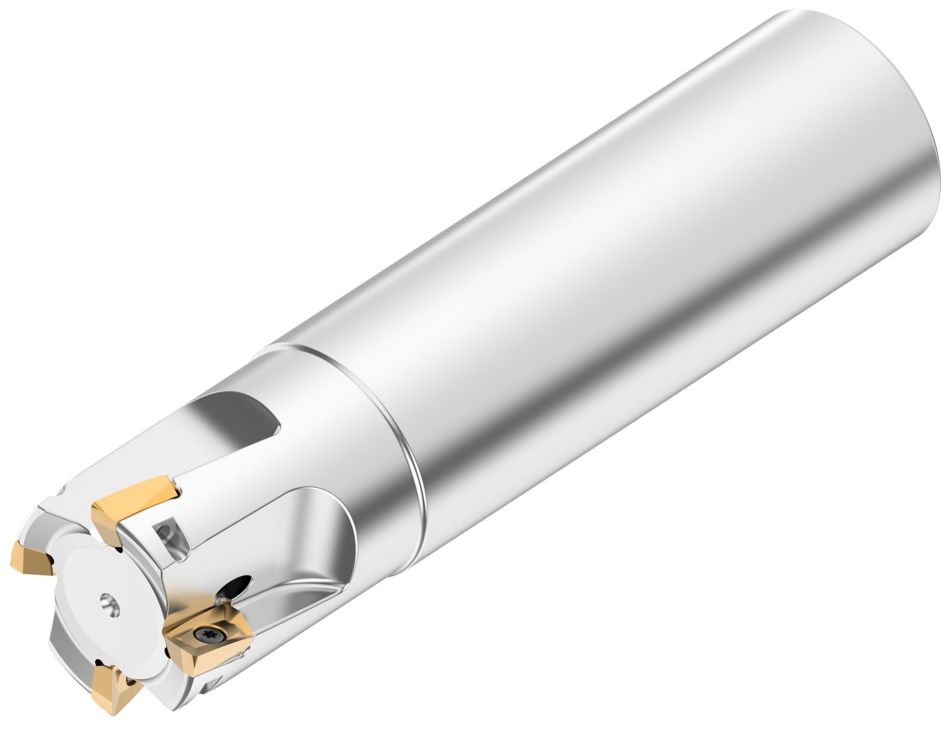

| Material Number | 3744538 |
| ISO Catalog ID | 12A01R020A16ED10 |
| ANSI Catalog ID | 12A01R020A16ED10 |
| [D1] Effective Cutting Diameter | 12 mm |
| [D1] Effective Cutting Diameter | .472 in |
| [D] Adapter / Shank / Bore Diameter | 16 mm |
| [D] Adapter / Shank / Bore Diameter | .6299 in |
| [L] Overall Length | 90 mm |
| [L] Overall Length | 3.543 in |
| [L2] Head Length | 20 mm |
| [L2] Head Length | .787 in |
| [AP1MAX] 1st Maximum Cutting Depth | 10.26 mm |
| [AP1MAX] 1st Maximum Cutting Depth | .404 in |
| Number of Inserts | 1 |
| Maximum Ramping Angle | 11.5 |
| Weight Kilograms | 0.12 |
| Max RPM | 57800 |
Face MillingHelical MillingRamping: BlankSlotting: Square EndSide Milling/Shoulder Milling: Square EndShank - Cylindrical PlainMilling - Through CoolantPocketingCreate Solution to calculate Feeds and Speeds
After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.
| Material | Light | Medium | Heavy | |||
| P1–P2 | .E..LD | KCPM40 | .S..GD | KCPM40 | .E..HD | KCPM40 |
| P3–P4 | .E..LD | KCPK30 | .S..GD | KCPK30 | .E..HD | KCPK30 |
| P5–P6 | .E..LD | KC725M | .S..GD | KC725M | .E..HD | KC725M |
| M1–M2 | .E..LD | KCSM40 | .S..GD | KC725M | .E..HD | KCSM40 |
| M3 | .E..LD | KCSM40 | .S..GD | KCPM40 | .E..HD | KCSM40 |
| K1–K2 | .E..LD | KCK15 | .S..GD | KCK15 | .E..HD | KCK15 |
| K3 | .E..LD | KCK20B | .S..GD | KCK20B | .E..HD | KCK20B |
| N1–N2 | .F..LDJ | KC410M | .F..LDJ | KC422M | .E..LDJ | KC422M |
| N3 | .F..LDJ | KC410M | .E..LDJ | KC422M | .E..LDJ | KC422M |
| S1–S2 | .E..LD | KC725M | .S..GD | KC725M | .E..HD | KC725M |
| S3 | .E..LD | KCSM40 | .S..GE | KCSM40 | .E..HD | KCSM40 |
| S4 | .E..LD | KCSM40 | .S..GE | KCSM40 | .E..HD | KCSM40 |
| H1 | .E..LD | KC510M | – | – | – | – |
| Mill 1-10™ • Recommended Starting Feeds [mm] | |||||||||||||||
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | ||||||||||||||
| 5% | 10% | 20% | 30% | 40–100% | |||||||||||
| L | M | H | L | M | H | L | M | H | L | M | H | L | M | H | |
| .F..LDJ | 0,12 | 0,35 | 0,58 | 0,08 | 0,25 | 0,42 | 0,06 | 0,19 | 0,31 | 0,06 | 0,16 | 0,27 | 0,05 | 0,15 | 0,25 |
| .F..-PCD | 0,12 | 0,35 | 0,58 | 0,08 | 0,25 | 0,42 | 0,06 | 0,19 | 0,31 | 0,06 | 0,16 | 0,27 | 0,05 | 0,15 | 0,25 |
| .E..LDJ | 0,12 | 0,35 | 0,58 | 0,08 | 0,25 | 0,42 | 0,06 | 0,19 | 0,32 | 0,06 | 0,16 | 0,28 | 0,05 | 0,15 | 0,25 |
| .E..LD | 0,12 | 0,35 | 0,57 | 0,09 | 0,25 | 0,41 | 0,07 | 0,19 | 0,31 | 0,06 | 0,17 | 0,27 | 0,05 | 0,15 | 0,25 |
| .S..GE | 0,23 | 0,46 | 0,70 | 0,17 | 0,33 | 0,51 | 0,13 | 0,25 | 0,38 | 0,11 | 0,22 | 0,33 | 0,10 | 0,20 | 0,30 |
| .S..GD | 0,23 | 0,47 | 0,71 | 0,17 | 0,34 | 0,51 | 0,13 | 0,25 | 0,38 | 0,11 | 0,22 | 0,33 | 0,10 | 0,20 | 0,30 |
| .E..HD | 0,23 | 0,51 | 0,82 | 0,17 | 0,37 | 0,59 | 0,13 | 0,28 | 0,44 | 0,11 | 0,24 | 0,38 | 0,10 | 0,22 | 0,35 |
| L = Light Machining; M = Medium Machining; H = Heavy Machining NOTE: Use Light Machining values as starting feed rate. | |||||||||||||||
| Mill 1-10™ • Recommended Starting Feeds [IPT] | |||||||||||||||
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | ||||||||||||||
| 5% | 10% | 20% | 30% | 40–100% | |||||||||||
| L | M | H | L | M | H | L | M | H | L | M | H | L | M | H | |
| .F..LDJ | 0.005 | 0.014 | 0.023 | 0.003 | 0.010 | 0.017 | 0.003 | 0.008 | 0.013 | 0.002 | 0.007 | 0.011 | 0.002 | 0.006 | 0.010 |
| .F..-PCD | 0.005 | 0.014 | 0.023 | 0.003 | 0.010 | 0.017 | 0.003 | 0.008 | 0.013 | 0.002 | 0.007 | 0.011 | 0.002 | 0.006 | 0.010 |
| .E..LDJ | 0.005 | 0.014 | 0.023 | 0.003 | 0.010 | 0.017 | 0.003 | 0.008 | 0.013 | 0.002 | 0.007 | 0.011 | 0.002 | 0.006 | 0.010 |
| .E..LD | 0.005 | 0.014 | 0.023 | 0.004 | 0.010 | 0.016 | 0.003 | 0.008 | 0.012 | 0.002 | 0.007 | 0.011 | 0.002 | 0.006 | 0.010 |
| .S..GE | 0.009 | 0.018 | 0.028 | 0.007 | 0.013 | 0.020 | 0.005 | 0.010 | 0.015 | 0.004 | 0.009 | 0.013 | 0.004 | 0.008 | 0.012 |
| .S..GD | 0.009 | 0.019 | 0.028 | 0.007 | 0.013 | 0.020 | 0.005 | 0.010 | 0.015 | 0.004 | 0.009 | 0.013 | 0.004 | 0.008 | 0.012 |
| .E..HD | 0.009 | 0.020 | 0.032 | 0.007 | 0.014 | 0.023 | 0.005 | 0.011 | 0.017 | 0.004 | 0.009 | 0.015 | 0.004 | 0.009 | 0.014 |
| L = Light Machining; M = Medium Machining; H = Heavy Machining NOTE: Use Light Machining values as starting feed rate. | |||||||||||||||
| Mill 1-10™ • Recommended Starting Speed [m/min] | ||||||||||||||||||||||||||||||||||||||||||||
| D = Dry Machining W = Wet Machining Y = Yes N = No Y, -20% = Yes, but reduce speed by 20% | K313 | KC410M | KC422M | KC510M | KC522M | KC725M | KCK15 | KCK20B | KCKP10 | KCPK30 | KCPM40 | KCSM30 | KCSM40 | KD1410 | ||||||||||||||||||||||||||||||
| Chip Thickness hex mm | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | ||||||||||||||||
| D | W | Cutting Speed (m/min) | Max | Start | Min | Max | Start | Min | Max | Start | Min | Max | Start | Min | Start | Start | Min | Start | Start | Min | Start | Start | Min | Start | Start | Min | Start | Start | Min | Start | Start | Min | Start | Start | Min | Start | Start | Min | Start | Start | Min | Start | Start | Min |
| P | ||||||||||||||||||||||||||||||||||||||||||||
| Y | Y, -20% | 1 | – | – | – | – | – | – | – | – | – | – | – | – | 330 | 285 | 270 | 260 | 230 | 215 | – | – | – | – | – | – | 300 | 295 | 260 | 455 | 395 | 370 | 295 | 260 | 245 | 370 | 320 | 300 | 350 | 320 | 300 | – | – | – |
| Y | Y, -20% | 2 | – | – | – | – | – | – | – | – | – | – | – | – | 275 | 240 | 200 | 220 | 190 | 160 | – | – | – | – | – | – | 310 | 275 | 240 | 280 | 255 | 230 | 250 | 215 | 180 | 305 | 270 | 220 | 300 | 270 | 220 | – | – | – |
| Y | Y, -20% | 3 | – | – | – | – | – | – | – | – | – | – | – | – | 255 | 215 | 175 | 200 | 170 | 140 | – | – | – | – | – | – | 275 | 240 | 205 | 255 | 230 | 205 | 230 | 195 | 160 | 285 | 240 | 195 | 280 | 240 | 195 | – | – | – |
| Y | Y, -20% | 4 | – | – | – | – | – | – | – | – | – | 245 | 200 | 170 | 225 | 185 | 150 | 180 | 150 | 120 | – | – | – | – | – | – | 240 | 205 | 160 | 225 | 185 | 160 | 205 | 170 | 135 | 250 | 205 | 165 | 240 | 205 | 165 | – | – | – |
| Y | Y, -20% | 5 | – | – | – | – | – | – | – | – | – | – | – | – | 185 | 170 | 150 | 150 | 135 | 120 | – | – | – | – | – | – | 205 | 160 | 125 | 190 | 170 | 150 | 170 | 155 | 135 | 205 | 190 | 165 | 200 | 180 | 160 | – | – | – |
| Y | Y, -20% | 6 | – | – | – | – | – | – | – | – | – | – | – | – | 165 | 125 | 100 | 130 | 100 | 80 | – | – | – | – | – | – | 160 | 125 | 110 | 160 | 135 | 110 | 150 | 115 | 90 | 185 | 140 | 110 | 180 | 140 | 100 | – | – | – |
| M | ||||||||||||||||||||||||||||||||||||||||||||
| Y | Y, -20% | 1 | – | – | – | – | – | – | – | – | – | – | – | – | 205 | 180 | 165 | 170 | 150 | 135 | – | – | – | – | – | – | – | – | – | 205 | 185 | 155 | 195 | 170 | 155 | 225 | 180 | 170 | 260 | 210 | 185 | – | – | – |
| Y | Y, -20% | 2 | – | – | – | – | – | – | – | – | – | – | – | – | 185 | 160 | 130 | 155 | 130 | 110 | – | – | – | – | – | – | – | – | – | 185 | 160 | 140 | 175 | 150 | 125 | 205 | 160 | 135 | 235 | 180 | 145 | – | – | – |
| Y | Y, -20% | 3 | – | – | – | – | – | – | – | – | – | – | – | – | 140 | 120 | 95 | 115 | 100 | 80 | – | – | – | – | – | – | – | – | – | 145 | 130 | 115 | 130 | 115 | 90 | 155 | 125 | 95 | 175 | 145 | 110 | – | – | – |
| K | ||||||||||||||||||||||||||||||||||||||||||||
| Y | Y, -20% | 1 | 160 | 140 | 120 | – | – | – | – | – | – | 295 | 265 | 240 | 230 | 205 | 185 | – | – | – | 420 | 385 | 340 | 360 | 290 | 245 | 410 | 330 | 240 | 295 | 265 | 240 | – | – | – | – | – | – | – | – | – | – | – | – |
| Y | Y, -20% | 2 | 140 | 120 | 100 | – | – | – | – | – | – | 230 | 205 | 190 | 180 | 160 | 150 | – | – | – | 335 | 295 | 275 | 280 | 230 | 195 | 280 | 245 | 190 | 235 | 210 | 190 | – | – | – | – | – | – | – | – | – | – | – | – |
| Y | Y, -20% | 3 | 125 | 105 | 85 | – | – | – | – | – | – | 195 | 175 | 160 | 150 | 135 | 120 | – | – | – | 280 | 250 | 230 | 210 | 175 | 140 | 240 | 195 | 160 | 195 | 175 | 160 | – | – | – | – | – | – | – | – | – | – | – | – |
| N | ||||||||||||||||||||||||||||||||||||||||||||
| N | Y | 1 | 795 | 695 | 600 | 1215 | 1080 | 995 | 1075 | 945 | 875 | 640 | 570 | 525 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 3850 | 3365 | 2870 |
| N | Y | 2 | 615 | 520 | 425 | 1080 | 995 | 915 | 945 | 875 | 760 | 580 | 535 | 490 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 1535 | 1435 | 1340 |
| N | Y | 3 | 615 | 520 | 425 | 1080 | 995 | 915 | 945 | 875 | 760 | 580 | 535 | 490 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 1535 | 1435 | 1340 |
| S | ||||||||||||||||||||||||||||||||||||||||||||
| N | Y | 1 | – | – | – | – | – | – | – | – | – | – | – | – | 40 | 35 | 25 | 35 | 30 | 25 | – | – | – | – | – | – | – | – | – | – | – | – | 40 | 35 | 30 | 45 | 40 | 30 | 50 | 40 | 25 | – | – | – |
| N | Y | 2 | – | – | – | – | – | – | – | – | – | – | – | – | 40 | 35 | 25 | 35 | 30 | 25 | – | – | – | – | – | – | – | – | – | – | – | – | 40 | 35 | 30 | 45 | 40 | 30 | 55 | 40 | 25 | – | – | – |
| N | Y | 3 | – | – | – | – | – | – | – | – | – | – | – | – | 50 | 40 | 25 | 45 | 35 | 25 | – | – | – | – | – | – | – | – | – | – | – | – | 50 | 40 | 30 | 55 | 45 | 30 | 65 | 45 | 30 | – | – | – |
| N | Y | 4 | – | – | – | – | – | – | – | – | – | – | – | – | 50 | 45 | 35 | 50 | 45 | 30 | – | – | – | – | – | – | – | – | – | 50 | 45 | 35 | 55 | 50 | 35 | 60 | 55 | 40 | 75 | 60 | 40 | – | – | – |
| H | ||||||||||||||||||||||||||||||||||||||||||||
| Y | Y, -20% | 1 | – | – | – | – | – | – | – | – | – | 130 | 105 | 80 | 120 | 90 | 70 | – | – | – | – | – | – | – | – | – | 140 | 110 | 90 | – | – | – | – | – | – | 135 | 100 | 75 | – | – | – | – | – | – |
| Y | Y, -20% | 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Y | Y, -20% | 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| As the average chip thickness increases, speed should be decreased. Material groups P, M, K and H show recommended starting speeds for dry machining. For wet machining, reduce speed by 20%. Material groups N and S show recommended starting speeds for wet machining. Not recommended for dry machining. | ||||||||||||||||||||||||||||||||||||||||||||
| Mill 1-10™ • Ramping Angles [mm] | ||||||
| insert style | cutting diameter | max ramp angle to non-cutting corner tangent | max ramp angle to steel body interference | DH min [mm] - (min hole diameter) | DH max [mm] - (max hole diameter) | DHI [mm] - (max flat-bottomed hole diameter) |
| Mill-1, 10mm | 12 | not recommended | not recommended | not recommended | not recommended | not recommended |
| Mill-1, 10mm | 16 | 9,7° | 12,3° | 19,50 | 32 | 28,73 |
| Mill-1, 10mm | 18 | 7,6° | 9,6° | 23,29 | 63 | 32,68 |
| Mill-1, 10mm | 20 | 6,2° | 8,6° | 27,25 | 40 | 36,63 |
| Mill-1, 10mm | 22 | 5,2° | 7,0° | 31,25 | 44 | 40,63 |
| Mill-1, 10mm | 25 | 4,2° | 5,3° | 37,26 | 50 | 46,62 |
| Mill-1, 10mm | 28 | 3,5° | 4,3° | 43,26 | 56 | 52,62 |
| Mill-1, 10mm | 32 | 2,8° | 3,3° | 51,27 | 64 | 60,62 |
| Mill-1, 10mm | 40 | 2,0° | 2,3° | 67,30 | 80 | 76,61 |
| Mill-1, 10mm | 42 | 1,9° | 2,1° | 71,32 | 82 | 80,60 |
| Mill-1, 10mm | 50 | 1,5° | 1,6° | 87,53 | 100 | 96,86 |
| Mill-1, 10mm | 63 | 1,2° | 1,2° | 113,54 | 126 | 122,86 |
| Mill-1, 10mm | 80 | 0,9° | 0,9° | 147,54 | 160 | 156,85 |
| Mill-1, 10mm | 100 | 0,7° | 0,7° | 187,54 | 200 | 196,85 |
| Mill 1-10™ • Recommended Starting Speeds [SFM] | ||||||||||||||||||||||||||||||||||||||||||||
| D = Dry Machining W = Wet Machining Y = Yes N = No Y, -20% = Yes, but reduce speed by 20% | K313 | KC410M | KC422M | KC510M | KC522M | KC725M | KCK15 | KCK20B | KCKP10 | KCPK30 | KCPM40 | KCSM30 | KCSM40 | KD1410 | ||||||||||||||||||||||||||||||
| Chip Thickness hex Inch | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | ||||||||||||||||
| D | W | Cutting Speed | Max | Start | Min | Max | Start | Min | Max | Start | Min | Max | Start | Min | Start | Start | Min | Start | Start | Min | Start | Start | Min | Start | Start | Min | Start | Start | Min | Start | Start | Min | Start | Start | Min | Start | Start | Min | Start | Start | Min | Start | Start | Min |
| P | ||||||||||||||||||||||||||||||||||||||||||||
| Y | Y, -20% | 1 | – | – | – | – | – | – | – | – | – | – | – | – | 1085 | 935 | 885 | 855 | 755 | 705 | – | – | – | – | – | – | 985 | 970 | 855 | 1495 | 1295 | 1215 | 970 | 855 | 805 | 1215 | 1050 | 985 | 1150 | 1050 | 985 | – | – | – |
| Y | Y, -20% | 2 | – | – | – | – | – | – | – | – | – | – | – | – | 900 | 785 | 655 | 720 | 625 | 525 | – | – | – | – | – | – | 1015 | 900 | 785 | 920 | 835 | 755 | 820 | 705 | 590 | 1000 | 885 | 720 | 985 | 885 | 720 | – | – | – |
| Y | Y, -20% | 3 | – | – | – | – | – | – | – | – | – | – | – | – | 835 | 705 | 575 | 655 | 560 | 460 | – | – | – | – | – | – | 900 | 785 | 675 | 835 | 755 | 675 | 755 | 640 | 525 | 935 | 785 | 640 | 920 | 785 | 640 | – | – | – |
| Y | Y, -20% | 4 | – | – | – | – | – | – | – | – | – | 805 | 655 | 560 | 740 | 605 | 490 | 590 | 490 | 395 | – | – | – | – | – | – | 785 | 675 | 525 | 740 | 605 | 525 | 675 | 560 | 445 | 820 | 675 | 540 | 785 | 675 | 540 | – | – | – |
| Y | Y, -20% | 5 | – | – | – | – | – | – | – | – | – | – | – | – | 605 | 560 | 490 | 490 | 445 | 395 | – | – | – | – | – | – | 675 | 525 | 410 | 625 | 560 | 490 | 560 | 510 | 445 | 675 | 625 | 540 | 655 | 590 | 525 | – | – | – |
| Y | Y, -20% | 6 | – | – | – | – | – | – | – | – | – | – | – | – | 540 | 410 | 330 | 425 | 330 | 260 | – | – | – | – | – | – | 525 | 410 | 360 | 525 | 445 | 360 | 490 | 375 | 295 | 605 | 460 | 360 | 590 | 460 | 330 | – | – | – |
| M | ||||||||||||||||||||||||||||||||||||||||||||
| Y | Y, -20% | 1 | – | – | – | – | – | – | – | – | – | – | – | – | 675 | 590 | 540 | 560 | 490 | 445 | – | – | – | – | – | – | – | – | – | 675 | 605 | 510 | 640 | 560 | 510 | 740 | 590 | 560 | 855 | 690 | 605 | – | – | – |
| Y | Y, -20% | 2 | – | – | – | – | – | – | – | – | – | – | – | – | 605 | 525 | 425 | 510 | 425 | 360 | – | – | – | – | – | – | – | – | – | 605 | 525 | 460 | 575 | 490 | 410 | 675 | 525 | 445 | 770 | 590 | 475 | – | – | – |
| Y | Y, -20% | 3 | – | – | – | – | – | – | – | – | – | – | – | – | 460 | 395 | 310 | 375 | 330 | 260 | – | – | – | – | – | – | – | – | – | 475 | 425 | 375 | 425 | 375 | 295 | 510 | 410 | 310 | 575 | 475 | 360 | – | – | – |
| K | ||||||||||||||||||||||||||||||||||||||||||||
| Y | Y, -20% | 1 | 525 | 460 | 395 | – | – | – | – | – | – | 970 | 870 | 785 | 755 | 675 | 605 | – | – | – | 1380 | 1265 | 1115 | 1180 | 950 | 805 | 1345 | 1085 | 785 | 970 | 870 | 785 | – | – | – | – | – | – | – | – | – | – | – | – |
| Y | Y, -20% | 2 | 460 | 395 | 330 | – | – | – | – | – | – | 755 | 675 | 625 | 590 | 525 | 490 | – | – | – | 1100 | 970 | 900 | 920 | 755 | 640 | 920 | 805 | 625 | 770 | 690 | 625 | – | – | – | – | – | – | – | – | – | – | – | – |
| Y | Y, -20% | 3 | 410 | 345 | 280 | – | – | – | – | – | – | 640 | 575 | 525 | 490 | 445 | 395 | – | – | – | 920 | 820 | 755 | 690 | 575 | 460 | 785 | 640 | 525 | 640 | 575 | 525 | – | – | – | – | – | – | – | – | – | – | – | – |
| N | ||||||||||||||||||||||||||||||||||||||||||||
| N | Y | 1 | 2610 | 2280 | 1970 | 3985 | 3545 | 3265 | 3525 | 3100 | 2870 | 2100 | 1870 | 1725 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 12630 | 11040 | 9415 |
| N | Y | 2 | 2020 | 1705 | 1395 | 3545 | 3265 | 3000 | 3100 | 2870 | 2495 | 1905 | 1755 | 1610 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 5035 | 4710 | 4395 |
| N | Y | 3 | 2020 | 1705 | 1395 | 3545 | 3265 | 3000 | 3100 | 2870 | 2495 | 1905 | 1755 | 1610 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 5035 | 4710 | 4395 |
| S | ||||||||||||||||||||||||||||||||||||||||||||
| N | Y | 1 | – | – | – | – | – | – | – | – | – | – | – | – | 130 | 115 | 80 | 115 | 100 | 80 | – | – | – | – | – | – | – | – | – | – | – | – | 130 | 115 | 100 | 150 | 130 | 100 | 165 | 130 | 80 | – | – | – |
| N | Y | 2 | – | – | – | – | – | – | – | – | – | – | – | – | 130 | 115 | 80 | 115 | 100 | 80 | – | – | – | – | – | – | – | – | – | – | – | – | 130 | 115 | 100 | 150 | 130 | 100 | 180 | 130 | 80 | – | – | – |
| N | Y | 3 | – | – | – | – | – | – | – | – | – | – | – | – | 165 | 130 | 80 | 150 | 115 | 80 | – | – | – | – | – | – | – | – | – | – | – | – | 165 | 130 | 100 | 180 | 150 | 100 | 215 | 150 | 100 | – | – | – |
| N | Y | 4 | – | – | – | – | – | – | – | – | – | – | – | – | 165 | 150 | 115 | 165 | 150 | 100 | – | – | – | – | – | – | – | – | – | 165 | 150 | 115 | 180 | 165 | 115 | 195 | 180 | 130 | 245 | 195 | 130 | – | – | – |
| H | ||||||||||||||||||||||||||||||||||||||||||||
| Y | Y, -20% | 1 | – | – | – | – | – | – | – | – | – | 425 | 345 | 260 | 395 | 295 | 230 | – | – | – | – | – | – | – | – | – | 460 | 360 | 295 | – | – | – | – | – | – | 445 | 330 | 245 | – | – | – | – | – | – |
| Y | Y, -20% | 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Y | Y, -20% | 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| As the average chip thickness increases, speed should be decreased. Material groups P, M, K and H show recommended starting speeds for dry machining. For wet machining, reduce speed by 20%. Material groups N and S show recommended starting speeds for wet machining. Not recommended for dry machining. | ||||||||||||||||||||||||||||||||||||||||||||
| Mill 1-10TM • Ramping Angles • Inch | ||||||
| insert style | cutting diameter | max ramp angle to non-cutting corner tangent | max ramp angle to steel body interference | DH min [Inch] - (min hole diameter) | DH max [Inch] - (max hole diameter) | DHI [Inch] - (max flat-bottomed hole diameter) |
| Mill-1, 10mm | .500 | not recommended | not recommended | not recommended | not recommended | not recommended |
| Mill-1, 10mm | .625 | 9.9° | 12.5° | .758 | 1.250 | 1.121 |
| Mill-1, 10mm | .750 | 6.8° | 9.7° | .998 | 1.500 | 1.367 |
| Mill-1, 10mm | .875 | 5.1° | 6.8° | 1.248 | 1.750 | 1.617 |
| Mill-1, 10mm | 1.000 | 4.1° | 5.1° | 1.498 | 2.000 | 1.867 |
| Mill-1, 10mm | 1.100 | 3.5° | 4.3° | 1.698 | 2.200 | 2.067 |
| Mill-1, 10mm | 1.250 | 2.9° | 3.4° | 1.999 | 2.500 | 2.367 |
| Mill-1, 10mm | 1.500 | 2.2° | 2.4° | 2.499 | 3.000 | 2.867 |
| Mill-1, 10mm | 2.000 | 1.2° | 1.6° | 3.509 | 4.000 | 3.876 |
| Mill-1, 10mm | 2.500 | 1.2° | 1.2° | 4.509 | 5.000 | 4.876 |
| Mill-1, 10mm | 3.000 | 0.9° | 1.0° | 5.509 | 6.000 | 5.876 |
| Mill-1, 10mm | 4.000 | 0.7° | 0.7° | 7.509 | 8.000 | 7.876 |
| Mill 1-10™ • Ramping Angles [mm] | ||||||
| insert style | cutting diameter | max ramp angle to non-cutting corner tangent | max ramp angle to steel body interference | DH min [mm] - (min hole diameter) | DH max [mm] - (max hole diameter) | DHI [mm] - (max flat-bottomed hole diameter) |
| Mill-1, 10mm | 12 | not recommended | not recommended | not recommended | not recommended | not recommended |
| Mill-1, 10mm | 16 | 9,7° | 12,3° | 19,50 | 32 | 28,73 |
| Mill-1, 10mm | 18 | 7,6° | 9,6° | 23,29 | 63 | 32,68 |
| Mill-1, 10mm | 20 | 6,2° | 8,6° | 27,25 | 40 | 36,63 |
| Mill-1, 10mm | 22 | 5,2° | 7,0° | 31,25 | 44 | 40,63 |
| Mill-1, 10mm | 25 | 4,2° | 5,3° | 37,26 | 50 | 46,62 |
| Mill-1, 10mm | 28 | 3,5° | 4,3° | 43,26 | 56 | 52,62 |
| Mill-1, 10mm | 32 | 2,8° | 3,3° | 51,27 | 64 | 60,62 |
| Mill-1, 10mm | 40 | 2,0° | 2,3° | 67,30 | 80 | 76,61 |
| Mill-1, 10mm | 42 | 1,9° | 2,1° | 71,32 | 82 | 80,60 |
| Mill-1, 10mm | 50 | 1,5° | 1,6° | 87,53 | 100 | 96,86 |
| Mill-1, 10mm | 63 | 1,2° | 1,2° | 113,54 | 126 | 122,86 |
| Mill-1, 10mm | 80 | 0,9° | 0,9° | 147,54 | 160 | 156,85 |
| Mill-1, 10mm | 100 | 0,7° | 0,7° | 187,54 | 200 | 196,85 |
| Mill 1-10TM • Ramping Angles • Inch | ||||||
| insert style | cutting diameter | max ramp angle to non-cutting corner tangent | max ramp angle to steel body interference | DH min [Inch] - (min hole diameter) | DH max [Inch] - (max hole diameter) | DHI [Inch] - (max flat-bottomed hole diameter) |
| Mill-1, 10mm | .500 | not recommended | not recommended | not recommended | not recommended | not recommended |
| Mill-1, 10mm | .625 | 9.9° | 12.5° | .758 | 1.250 | 1.121 |
| Mill-1, 10mm | .750 | 6.8° | 9.7° | .998 | 1.500 | 1.367 |
| Mill-1, 10mm | .875 | 5.1° | 6.8° | 1.248 | 1.750 | 1.617 |
| Mill-1, 10mm | 1.000 | 4.1° | 5.1° | 1.498 | 2.000 | 1.867 |
| Mill-1, 10mm | 1.100 | 3.5° | 4.3° | 1.698 | 2.200 | 2.067 |
| Mill-1, 10mm | 1.250 | 2.9° | 3.4° | 1.999 | 2.500 | 2.367 |
| Mill-1, 10mm | 1.500 | 2.2° | 2.4° | 2.499 | 3.000 | 2.867 |
| Mill-1, 10mm | 2.000 | 1.2° | 1.6° | 3.509 | 4.000 | 3.876 |
| Mill-1, 10mm | 2.500 | 1.2° | 1.2° | 4.509 | 5.000 | 4.876 |
| Mill-1, 10mm | 3.000 | 0.9° | 1.0° | 5.509 | 6.000 | 5.876 |
| Mill-1, 10mm | 4.000 | 0.7° | 0.7° | 7.509 | 8.000 | 7.876 |
I have read and accepted the Terms & Conditions of use
ISO Catalog Number
ANSI Catalog Number
to find similar products.Please select a file to download
Models
Product data
. Please enter the desired qty for the material(s) you want to include in your promotion or Proceed Without Promotion and only your base materials will be added to the cart.
Minimum quantity should be
| SAP Material Number | ISO Catalog Number | Grade |
|---|
You are about to leave the Solution building process.
Are you sure you want to leave?
