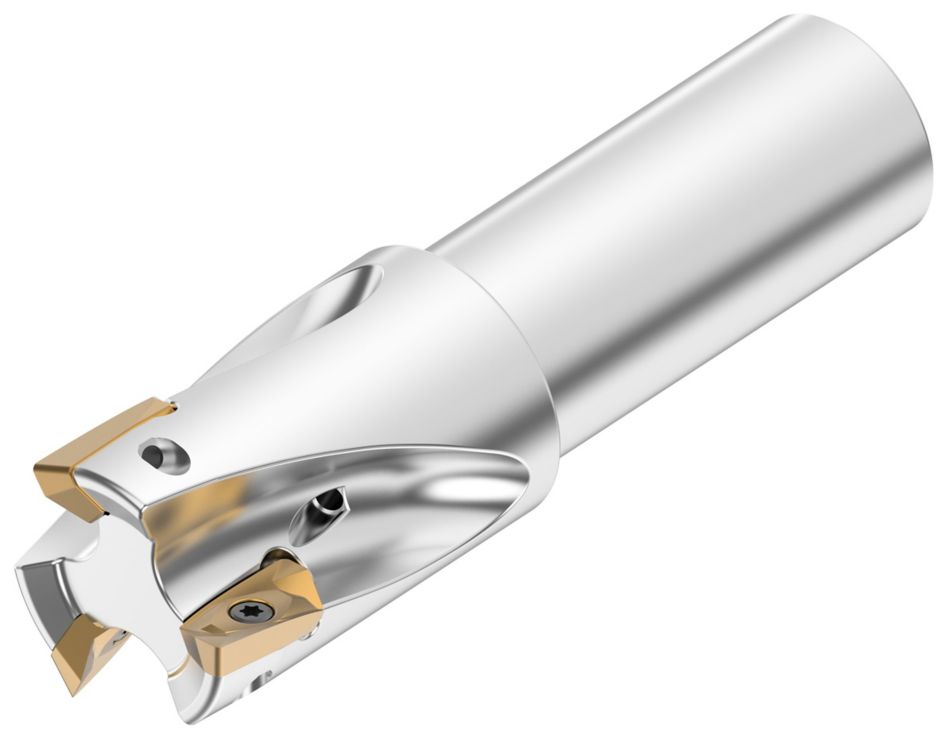

Mill 1-14™ • End Mill • Cylindrical Shank • Inch

Shoulder milling cutter for multiple materials

Material Number2624187

ISO Catalog IDM1D075E1402C075L650ANSI Catalog IDM1D075E1402C075L650

Mill 1-14™ End Mills - Cylindrical Shank - Inch 2624187 - Kennametal
Mill 1-14™ End Mills - Cylindrical Shank - Inch 2624187 - Kennametal
Mill 1-14™ End Mills - Cylindrical Shank - Inch 2624187 - Kennametal
Open expanded view
Mill 1-14™ End Mills - Cylindrical Shank - Inch 2624187 - Kennametal
Mill 1-14™ End Mills - Cylindrical Shank - Inch 2624187 - Kennametal
Generic representation
List Price
$413.83/each
Discount
Your Price
/each
In StockThis item is no longer availableLonger Delivery
Contact our sales team to discover all of your pricing options
Sold in pkg. of 0Adjusted to meet the minimum package size.
Minimum qty: 0Adjusted to meet the minimum quantity requirement.
This item is no longer available
  • P Steel
  • M Stainless Steel
  • K Cast Iron
  • N Non-Ferrous
  • S High-Temp Alloys
  • H Hardened Materials
  • Face MillingFace Milling
  • Helical MillingHelical Milling
  • Ramping: BlankRamping: Blank
  • Slotting: Square EndSlotting: Square End
  • Side Milling/Shoulder Milling: Square EndSide Milling/Shoulder Milling: Square End
  • Shank - Cylindrical PlainShank - Cylindrical Plain
  • Milling - Through CoolantMilling - Through Coolant
  • PocketingPocketing
{{cadTool}} format is not available

Sending to {{cadTool}} in progress...

Downloaded file will be available after import in the {{cadTool}} tool library.

Drawings for 2624187
Metric
Inch
Material Number2624187
ISO Catalog IDM1D075E1402C075L650
ANSI Catalog IDM1D075E1402C075L650
[D1] Effective Cutting Diameter19.05 mm
[D1] Effective Cutting Diameter.75 in
[D] Adapter / Shank / Bore Diameter19.05 mm
[D] Adapter / Shank / Bore Diameter.75 in
[L] Overall Length 165.1 mm
[L] Overall Length 6.5 in
[L2] Head Length 44.45 mm
[L2] Head Length 1.75 in
[AP1MAX] 1st Maximum Cutting Depth14.6 mm
[AP1MAX] 1st Maximum Cutting Depth.57 in
Number of Inserts2
Maximum Ramping Angle18.5
Weight Pounds0.65
Max RPM49600
See all Product Variants

Workpiece Materials

  • Steel
  • Stainless Steel
  • Cast Iron
  • Non-Ferrous
  • High-Temp Alloys
  • Hardened Materials

Uses and application

  • Face MillingFace Milling
  • Helical MillingHelical Milling
  • Ramping: BlankRamping: Blank
  • Slotting: Square EndSlotting: Square End
  • Side Milling/Shoulder Milling: Square EndSide Milling/Shoulder Milling: Square End
  • Shank - Cylindrical PlainShank - Cylindrical Plain
  • Milling - Through CoolantMilling - Through Coolant
  • PocketingPocketing

Features and benefits

  • Internal coolant supply.
  • For ramping, slotting, plunging, facing, and true 90° walls.

Create Solution to calculate Feeds and Speeds

After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.

Insert Selection

View MoreView Less

Feeds

View MoreView Less

Speeds

View MoreView Less

Application Data

View MoreView Less

CAD Drawings Models

Can’t find the file type you’re looking for?

Product data

I have read and accepted the Terms & Conditions of use

Create Solution to find the perfect compatible parts for your tool.

Product Name
Material Number
ISO Catalog ID
ANSI Catalog ID

TG75 Series • Inch
1014030
75TG0750
75TG0750
List Price
/each
Discount
Your Price
/each
Sold in pkg. of 0Adjusted to meet the minimum package size.
Minimum qty: 0Adjusted to meet the minimum quantity requirement.
In StockThis item is no longer availableLonger Delivery
TG100 Series • Inch
1014031
100TG0750
100TG0750
List Price
/each
Discount
Your Price
/each
Sold in pkg. of 0Adjusted to meet the minimum package size.
Minimum qty: 0Adjusted to meet the minimum quantity requirement.
In StockThis item is no longer availableLonger Delivery
TG150 Series • Inch
1014032
150TG0750
150TG0750
List Price
/each
Discount
Your Price
/each
Sold in pkg. of 0Adjusted to meet the minimum package size.
Minimum qty: 0Adjusted to meet the minimum quantity requirement.
In StockThis item is no longer availableLonger Delivery
DA Collets
1015088
180DA0750
180DA0750
List Price
/each
Discount
Your Price
/each
Sold in pkg. of 0Adjusted to meet the minimum package size.
Minimum qty: 0Adjusted to meet the minimum quantity requirement.
In StockThis item is no longer availableLonger Delivery
DA Collets
1080626
180DAC0750
180DAC0750
List Price
/each
Discount
Your Price
/each
Sold in pkg. of 0Adjusted to meet the minimum package size.
Minimum qty: 0Adjusted to meet the minimum quantity requirement.
In StockThis item is no longer availableLonger Delivery
HC 1/2 - HC 1 1/4 • Hydraulic Sleeves • Inch with Inch Bores
List Price
/each
Discount
Your Price
/each
Sold in pkg. of 0Adjusted to meet the minimum package size.
Minimum qty: 0Adjusted to meet the minimum quantity requirement.
In StockThis item is no longer availableLonger Delivery
HC 20M - HC 32M • Hydraulic Sleeves • Metric with Inch Bores
List Price
/each
Discount
Your Price
/each
Sold in pkg. of 0Adjusted to meet the minimum package size.
Minimum qty: 0Adjusted to meet the minimum quantity requirement.
In StockThis item is no longer availableLonger Delivery
TG75 Series • Inch
1105159
75TGC0750
75TGC0750
List Price
/each
Discount
Your Price
/each
Sold in pkg. of 0Adjusted to meet the minimum package size.
Minimum qty: 0Adjusted to meet the minimum quantity requirement.
In StockThis item is no longer availableLonger Delivery
HC-HSK Form A
1246534
HSK63AHC075400
HSK63AHC075400
List Price
/each
Discount
Your Price
/each
Sold in pkg. of 0Adjusted to meet the minimum package size.
Minimum qty: 0Adjusted to meet the minimum quantity requirement.
In StockThis item is no longer availableLonger Delivery
HC-HSK Form A
1246567
HSK100AHC075425
HSK100AHC075425
List Price
/each
Discount
Your Price
/each
Sold in pkg. of 0Adjusted to meet the minimum package size.
Minimum qty: 0Adjusted to meet the minimum quantity requirement.
In StockThis item is no longer availableLonger Delivery
Create Solution to find the perfect compatible parts for your tool.

Product Name
Material Number
ISO Catalog ID
ANSI Catalog ID
Grade

Mill 1-14™ • Carbide Insert • EDPT-GD • Medium Machining
List Price
/each
Discount
Your Price
/each
Sold in pkg. of 0Adjusted to meet the minimum package size.
Minimum qty: 0Adjusted to meet the minimum quantity requirement.
In StockThis item is no longer availableLonger Delivery
Mill 1-14™ • Carbide Insert • EDPT-GD • Medium Machining
List Price
/each
Discount
Your Price
/each
Sold in pkg. of 0Adjusted to meet the minimum package size.
Minimum qty: 0Adjusted to meet the minimum quantity requirement.
In StockThis item is no longer availableLonger Delivery
Mill 1-14™ • Carbide Insert • EDPT-GD • Medium Machining
List Price
/each
Discount
Your Price
/each
Sold in pkg. of 0Adjusted to meet the minimum package size.
Minimum qty: 0Adjusted to meet the minimum quantity requirement.
In StockThis item is no longer availableLonger Delivery
Mill 1-14™ • Carbide Insert • EDPT-GD • Medium Machining
List Price
/each
Discount
Your Price
/each
Sold in pkg. of 0Adjusted to meet the minimum package size.
Minimum qty: 0Adjusted to meet the minimum quantity requirement.
In StockThis item is no longer availableLonger Delivery
Mill 1-14™ • Carbide Insert • EDPT-GD • Medium Machining
List Price
/each
Discount
Your Price
/each
Sold in pkg. of 0Adjusted to meet the minimum package size.
Minimum qty: 0Adjusted to meet the minimum quantity requirement.
In StockThis item is no longer availableLonger Delivery
Mill 1-14™ • Carbide Insert • EDPT-GD • Medium Machining
List Price
/each
Discount
Your Price
/each
Sold in pkg. of 0Adjusted to meet the minimum package size.
Minimum qty: 0Adjusted to meet the minimum quantity requirement.
In StockThis item is no longer availableLonger Delivery
Mill 1-14™ • Carbide Insert • EDPT-GD • Medium Machining
List Price
/each
Discount
Your Price
/each
Sold in pkg. of 0Adjusted to meet the minimum package size.
Minimum qty: 0Adjusted to meet the minimum quantity requirement.
In StockThis item is no longer availableLonger Delivery
Mill 1-14™ • Carbide Insert • EDPT-GD • Medium Machining
List Price
/each
Discount
Your Price
/each
Sold in pkg. of 0Adjusted to meet the minimum package size.
Minimum qty: 0Adjusted to meet the minimum quantity requirement.
In StockThis item is no longer availableLonger Delivery
Mill 1-14™ • Carbide Insert • EDPT-GD • Medium Machining
List Price
/each
Discount
Your Price
/each
Sold in pkg. of 0Adjusted to meet the minimum package size.
Minimum qty: 0Adjusted to meet the minimum quantity requirement.
In StockThis item is no longer availableLonger Delivery
Mill 1-14™ • Carbide Insert • EDCT-LD • Light Machining
List Price
/each
Discount
Your Price
/each
Sold in pkg. of 0Adjusted to meet the minimum package size.
Minimum qty: 0Adjusted to meet the minimum quantity requirement.
In StockThis item is no longer availableLonger Delivery

Product Name
Material Number
ISO Catalog ID
ANSI Catalog ID

Hardware CHAVE TORX DT-9IP
List Price
/each
Discount
Your Price
/each
Sold in pkg. of 0Adjusted to meet the minimum package size.
Minimum qty: 0Adjusted to meet the minimum quantity requirement.
In StockThis item is no longer availableLonger Delivery
INSERT SCR M3-0.5 x 5.7 IP9
2975402
MS2167
MS2167
List Price
/each
Discount
Your Price
/each
Sold in pkg. of 0Adjusted to meet the minimum package size.
Minimum qty: 0Adjusted to meet the minimum quantity requirement.
In StockThis item is no longer availableLonger Delivery
