| Material Number | 4176187 |
| ISO Catalog ID | NTB3RA |
| ANSI Catalog ID | NTB3RA |
| Grade | KCU10 |
| Insert Size | 3 |
| Type of Thread | BUTTRESS |

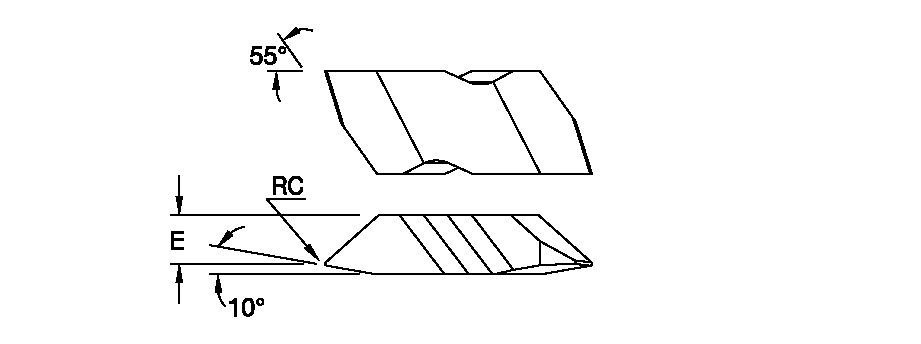

| [RC] Corner Radius Center | 0.175 mm |
| [RC] Corner Radius Center | 0.007 in |
| [E] Profile Distance | 4.166 mm |
| [E] Profile Distance | 0.164 in |
| TPI | 8-16 |
Grades
KCU10
Composition: An advanced multilayer PVD coating over a very deformation-resistant unalloyed carbide substrate. The new and improved coating improves edge stability with wide range speed and feed capabilities.
Application: The KCU10™ grade is ideal for finishing to general machining of most workpiece materials at a wide range of speed and feed capabilities. Excellent for machining most steels, stainless steels, cast irons, non-ferrous materials, and super alloys with improved edge toughness and higher cutting speed/feed capability.
