      Kenloc™ Inserts
      Kenloc™ Inserts
      Kenloc™ Inserts
      Kenloc™ Inserts
      Download CAD Drawings

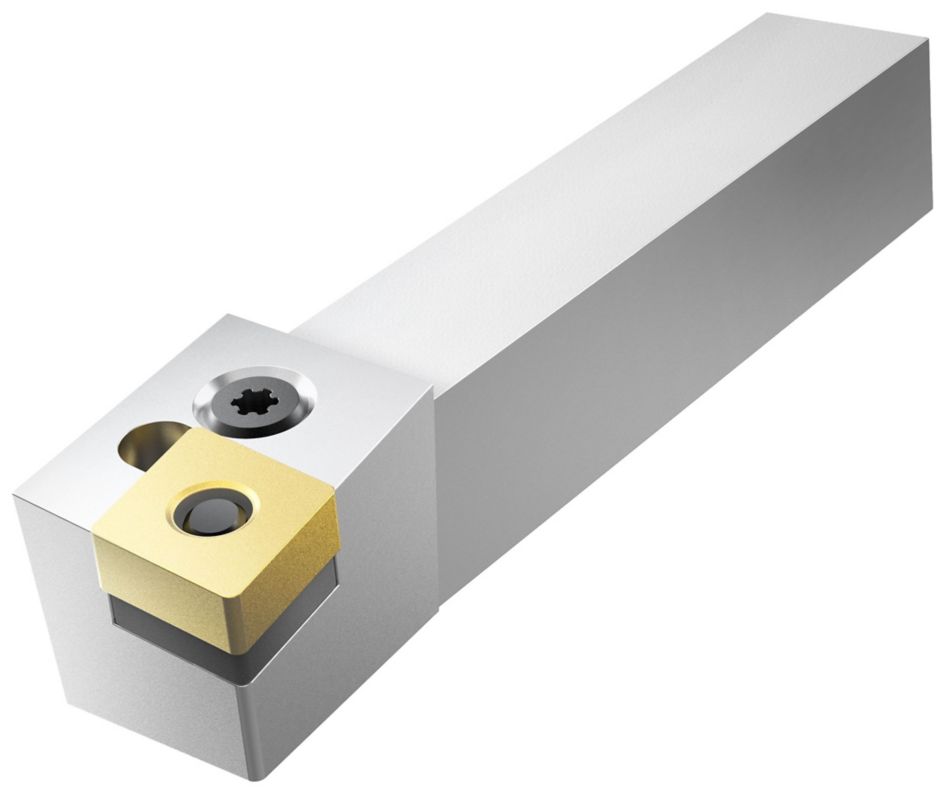

      PCLN 95°

      Kenloc™ Inserts

      Metric
      Inch
      SAP Material Number 1192377
      ISO Catalog Number PCLNL4040S19
      ANSI Catalog Number PCLNL4040S19

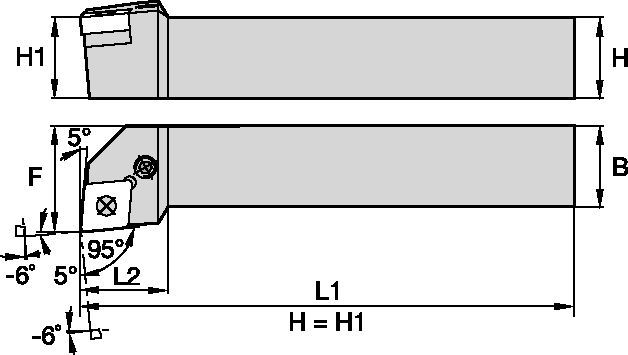

      [H] Shank Height 40.0000 mm
      [H] Shank Height 1.575 in
      [B] Shank Width 40.0000 mm
      [B] Shank Width 1.575 in
      [F] F Dimension 50.0000 mm
      [F] F Dimension 1.969 in
      [L1] Tool Length 250.0000 mm
      [L1] Tool Length 9.843 in
      [LH] Head Length 36.0000 mm
      [LH] Head Length 1.420 in
      Gage Insert CN..190612
      Clamp Screw ID Drive Size 25 IP
      See all Product Variants

      Uses and application

      • TurningTurning
      • ProfilingProfiling
      • FacingFacing

      Workpiece Materials

      P Steel
      M Stainless Steel
      K Cast Iron
      N Non-Ferrous
      S High-Temp Alloys
      H Hardened Materials

      Machine Side

      loading...

      Workpiece Side

      loading...

      Spare Parts for PCLN 95°

      Spare Part
        SHIM PIN TOGGLE LEVER 513.033 SHIM PIN TOGGLE LEVER 513.033
        SHIM PIN TOGGLE LEVER 513.033
        Spare Part
          SHIM PIN PUNCH 515.022 SHIM PIN PUNCH 515.022
          SHIM PIN PUNCH 515.022
          Spare Part
            WRENCH TORX PLUS 25IP WRENCH TORX PLUS 25IP
            WRENCH TORX PLUS 25IP
            Spare Part
              SHIM 512.123 SHIM 512.123
              SHIM 512.123
              Spare Part
                TOGGLE LEVER 511.033 TOGGLE LEVER 511.033
                TOGGLE LEVER 511.033
                Spare Part
                  CLAMPING SCREW M10 514.133 CLAMPING SCREW M10 514.133
                  CLAMPING SCREW M10 514.133
