| Material Number | 1197549 |
| ISO Catalog ID | PRGCR4040S25H1 |
| ANSI Catalog ID | PRGCR4040S25H1 |

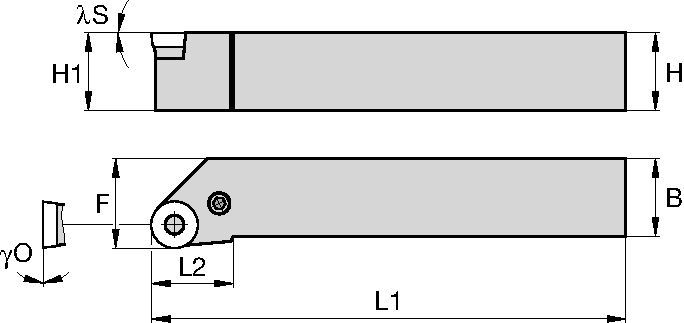

| [H] Shank Height | 40 mm |
| [H] Shank Height | 1.5748 in |
| [B] Shank Width | 40 mm |
| [B] Shank Width | 1.5748 in |
| [F] F Dimension | 50 mm |
| [F] F Dimension | 1.9685 in |
| [L1] Tool Length | 250 mm |
| [L1] Tool Length | 9.8425 in |
| [LH] Head Length | 47 mm |
| [LH] Head Length | 1.8504 in |
| Inclination Angle | 0 |
| [GAAO] Orthogonal Rake Angle | 0 |
| Gage Insert | RC..2507M |
