PROON

Metric
Inch
SAP Material Number 1095808
ISO Catalog Number PROON246
ANSI Catalog Number PROON246

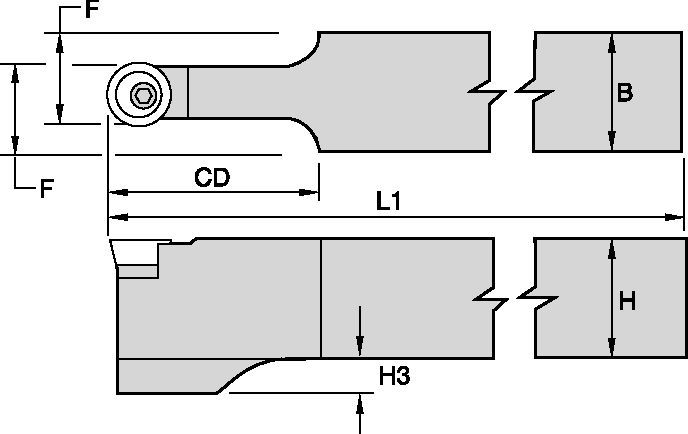

[H] Shank Height 38.1 mm
[H] Shank Height 1.5 in
[B] Shank Width 38.1 mm
[B] Shank Width 1.5 in
[F] F Dimension 28.575 mm
[F] F Dimension 1.125 in
[L1] Tool Length 203.2 mm
[L1] Tool Length 8 in
[CD] Cutting Depth 60.3 mm
[CD] Cutting Depth 2.374 in
Gage Insert RC..64
Lock Pin ID Drive Size 1/8
See all Product Variants
Create Solution to calculate Feeds & Speeds

Workpiece Materials

P Steel
M Stainless Steel
K Cast Iron

Features and benefits

  • Positive Profiling Toolholder

  • Rigid Clamping

  • Heavy-duty profiling capability

  • Full 180° cut radius around insert

  • Clear-top design

  • Remove inserts without removing the screw

Machine Side

loading...

Workpiece Side

loading...

Spare Parts for PROON

Spare Part
    Spare Part
