Setting fixture • Kits • Two Gages

Setting Fixture • Kits

Metric
Inch
SAP Material Number 5025597
ISO Catalog Number SF300M1LA1RA
ANSI Catalog Number SF300M1LA1RA

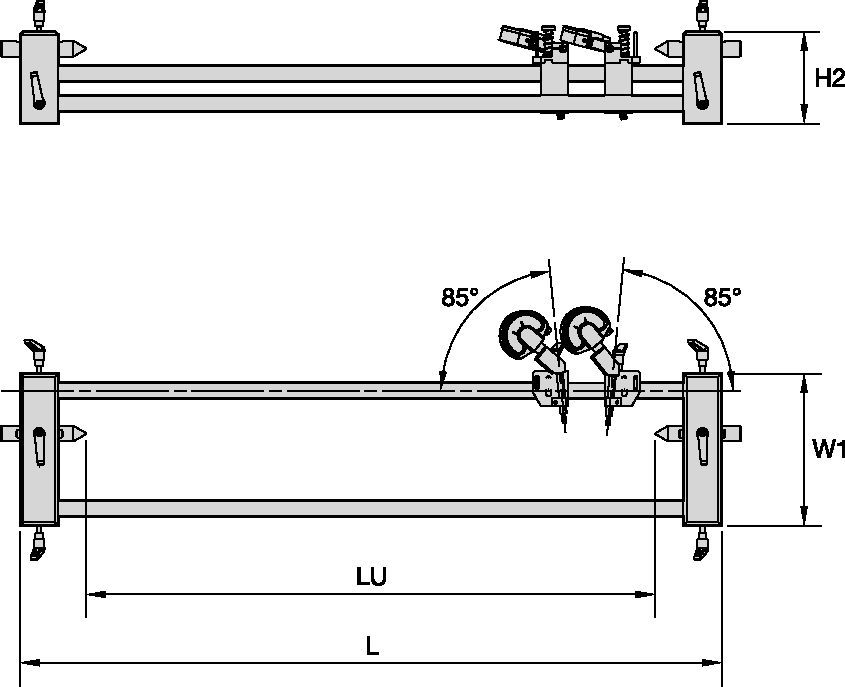

[H2] Overall Height 118 mm
[H2] Overall Height 4.645 in
[L] Overall Length 450 mm
[L] Overall Length 17.716 in
[LU] Usable Length 300 mm
[LU] Usable Length 11.811 in
[W1] Unit Base Width 195 mm
[W1] Unit Base Width 7.677 in
See all Product Variants

Machine Side

loading...

Workpiece Side

loading...

Spare Parts for Setting fixture • Kits • Two Gages

Spare Part
    DIAL INDICATOR PLUS 45DEG KNEE DIAL INDICATOR PLUS 45DEG KNEE
    DIAL INDICATOR PLUS 45DEG KNEE
    Spare Part
      AX SLIDE COMPLETE 85DEG, RH AX SLIDE COMPLETE 85DEG, RH
      AX SLIDE COMPLETE 85DEG, RH
      Spare Part
        AX SLIDE COMPLETE 85DEG, LH AX SLIDE COMPLETE 85DEG, LH
        AX SLIDE COMPLETE 85DEG, LH
        Spare Part
          STANDARD CENTER D20MM STANDARD CENTER D20MM
          STANDARD CENTER D20MM
          Spare Part
            SETTING FIXTURE ENDBLOCK INCL SCREWS SETTING FIXTURE ENDBLOCK INCL SCREWS
            SETTING FIXTURE ENDBLOCK INCL SCREWS
            Spare Part
              SINGLE 450MM LONG SUPPORT BAR SINGLE 450MM LONG SUPPORT BAR
              SINGLE 450MM LONG SUPPORT BAR
