      22mm Shank Conicals • SM Series
      22mm Shank Conicals • SM Series
      22mm Shank Conicals • SM Series
      22mm Shank Conicals • SM Series
      Download CAD Drawings

      SM04

      22mm Shank Conicals • SM Series

      Metric
      Inch
      SAP Material Number 1317495
      ISO Catalog Number SM04
      ANSI Catalog Number SM04
      Grade K706
      [D] Shank/Bore Diameter 21.971 mm
      [D] Shank/Bore Diameter .8650 in
      [D2] Body Diameter Workpiece Side 38.100 mm
      [D2] Body Diameter Workpiece Side 1.500 in
      [L1] Gage Length 47.770 mm
      [L1] Gage Length 1.880 in
      [LRO] Retainer Offset Length 35.509 mm
      [LRO] Retainer Offset Length 1.398 in
      [LS] Shank Length 41.900 mm
      [LS] Shank Length 1.650 in
      [OAL] Overall Length 89.680 mm
      [OAL] Overall Length 3.530 in
      [TD] Tip Diameter 18.745 mm
      [TD] Tip Diameter .7380 in
      [TL] Tip Length 21.793 mm
      [TL] Tip Length .8580 in
      Cutting Condition HEAVY
      EW_MACHINE_POWER medium to high
      EW_CON_RETAINER_STYLE FRICTION
      See all Product Variants

      Uses and application

      • Cutting Conditions: AbrasiveCutting Conditions: Abrasive
      • Cutting Conditions: HeavyCutting Conditions: Heavy
      • Tool with Puller GrooveTool with Puller Groove
      • Internal RetainerInternal Retainer

      Machine Side

      loading...

      Workpiece Side

      loading...

      Grades

      • K706
      waga opakowania brutto (z towarem) waga palety
      Numer zamówieniowy oznaczenie katalogowe typ opakowania ilość sztuk w opakowaniu kg masa Unités par palette kg masa
      1317495 SM04 bucket 50 15.5 34.5 2,500 775 1725

      Spare Parts for SM04

      Spare Part

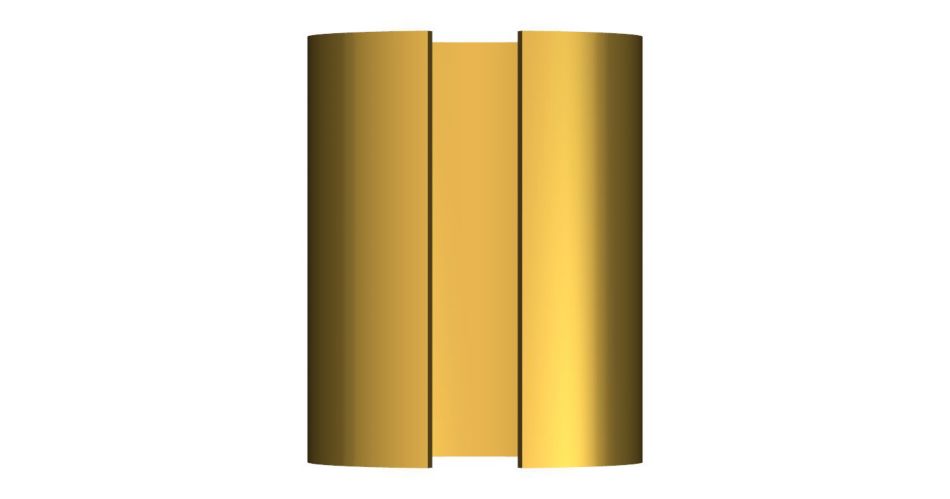

        Retainer LR87 SPRING STEEL Retainer LR87 SPRING STEEL
        Retainer LR87 SPRING STEEL
