| Material Number | 7093166 |
| ISO Catalog ID | SPMT09T308UF |
| ANSI Catalog ID | SPMT3252UF |
| Grade | KCU10B |

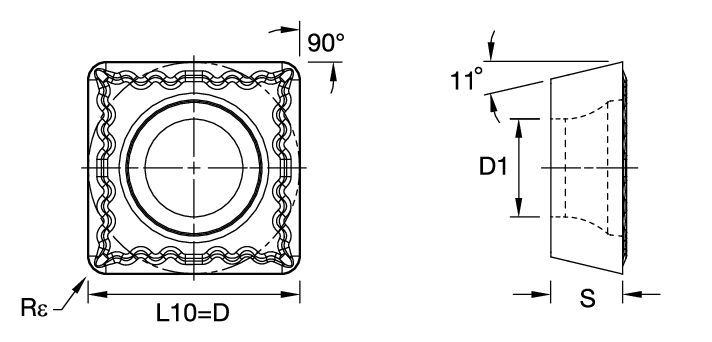

| [D] Insert IC Size | 9.525 mm |
| [D] Insert IC Size | 0.375 in |
| [L10] Insert Cutting Edge Length | 9.525 mm |
| [L10] Insert Cutting Edge Length | 0.375 in |
| [S] Insert Thickness | 3.97 mm |
| [S] Insert Thickness | 0.1563 in |
| [Rε] Corner Radius | 0.8 mm |
| [Rε] Corner Radius | 0.031 in |
| [D1] Insert Hole Size | 4.4 mm |
| [D1] Insert Hole Size | 0.1732 in |
