| Material Number | 1772118 |
| ISO Catalog ID | STACR082D |
| ANSI Catalog ID | STACR082D |

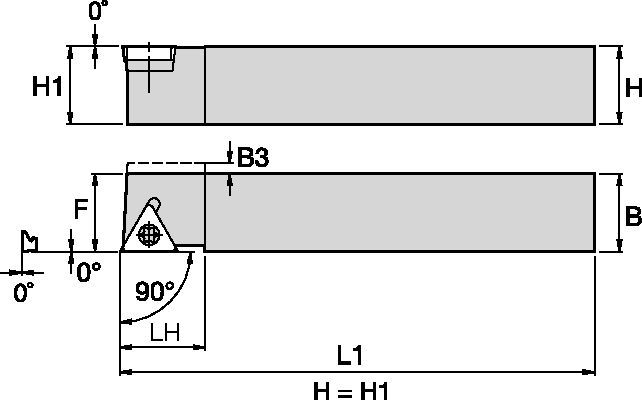

| [H] Shank Height | 12.7 mm |
| [H] Shank Height | 0.5 in |
| [B] Shank Width | 12.7 mm |
| [B] Shank Width | 0.5 in |
| [F] F Dimension | 12.7 mm |
| [F] F Dimension | 0.5 in |
| [L1] Tool Length | 152.4 mm |
| [L1] Tool Length | 6 in |
| [LH] Head Length | 15.88 mm |
| [LH] Head Length | 0.62 in |
| Gage Insert | TC..2151 |
| Insert Screw ID Drive Size | T7 |
