Hyundai WIA • Static Tool Axial • KM™ • MMC 036
Hyundai WIA • Static Tool Axial • KM™ • MMC 036
Hyundai WIA • Static Tool Axial • KM™ • MMC 036
Hyundai WIA • Static Tool Axial • KM™ • MMC 036
Hyundai WIA • Static Tool Axial • KM™ • MMC 036
Hyundai WIA • Static Tool Axial • KM™ • MMC 036
Select the files you wish to request
Downloads SDS
Request {{cadTool}} format
{{cadTool}} format is not available

Static Tool Axial • KM™ • TACU036KM50SA60945571

Hyundai WIA • Static Tool Axial • KM™ • MMC 036

Metric
Inch
SAP Material Number 6391609
ISO Catalog Number TACU036KM50SA60945571
ANSI Catalog Number TACU036KM50SA60945571
MAR_ASTERISK *

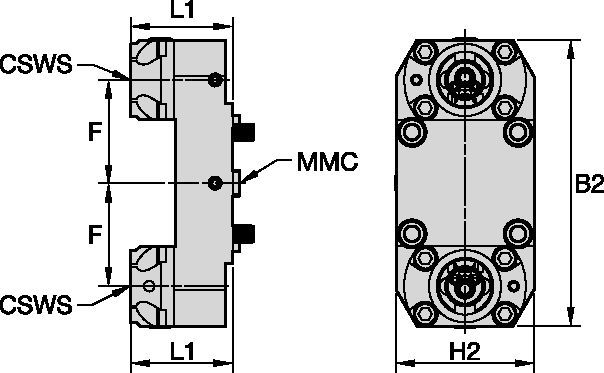

[CSWS] System Size Workpiece Side KM50
Machine Mount Code 036
[B2] Overall Width 197 mm
[B2] Overall Width 7.756 in
[F] F Dimension 71 mm
[F] F Dimension 2.795 in
[H2] Overall Height 95 mm
[H2] Overall Height 3.74 in
[L1] Gage Length 70 mm
[L1] Gage Length 2.756 in
Coolant Pressure Bar 100
Coolant Pressure PSI 1500
Coolant Delivery I
Weight Kilograms 6.09
Torque Catalog Newton Meters 27-34
Torque Catalog Foot Pounds 20-25
See all Product Variants

Uses and application

  • Through Coolant: Axial: DrillingThrough Coolant: Axial: Drilling
  • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622
  • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622

Features and benefits

Machine Series:
  • L2100SY

  • L300M/MS

  • LM2000, 2500TTM/TTMS/TTSY

  • SKT200, 250TTM/MS/SY

  • SKT250, 300M/MS

Machine Side

loading...

Workpiece Side

loading...

Spare Parts for Static Tool Axial • KM™ • TACU036KM50SA60945571

Spare Part
    KM50 NCM FLANGE MOUNT HEIGHT:30MM KM50 NCM FLANGE MOUNT HEIGHT:30MM
    KM50 NCM FLANGE MOUNT HEIGHT:30MM
    Spare Part
      CLAMPING UNIT SPARE PARTS PKG CLAMPING UNIT SPARE PARTS PKG
      CLAMPING UNIT SPARE PARTS PKG
      Spare Part
        TORQUE WRENCH TORQUE WRENCH
        TORQUE WRENCH
        Spare Part
          M12 X 1.75 X 40 - MS1198 - SHCS M12 X 1.75 X 40 - MS1198 - SHCS
          M12 X 1.75 X 40 - MS1198 - SHCS
