    T331 • Metric • Form C Semi-Bottoming Chamfer • Through Coolant

    Beyond™ Solid Carbide Spiral-Flute Taps • Blind Holes

    Material Number3483059

    ISO Catalog IDT331M100X150R6HXANSI Catalog IDT331M100X150R6HX

    T331 SC SP Fl ModBtm w/Cool mm Threading - 3483059 - Kennametal
    T331 SC SP Fl ModBtm w/Cool mm Threading - 3483059 - Kennametal
    T331 SC SP Fl ModBtm w/Cool mm Threading - 3483059 - Kennametal
    Open expanded view
    T331 SC SP Fl ModBtm w/Cool mm Threading - 3483059 - Kennametal
    T331 SC SP Fl ModBtm w/Cool mm Threading - 3483059 - Kennametal

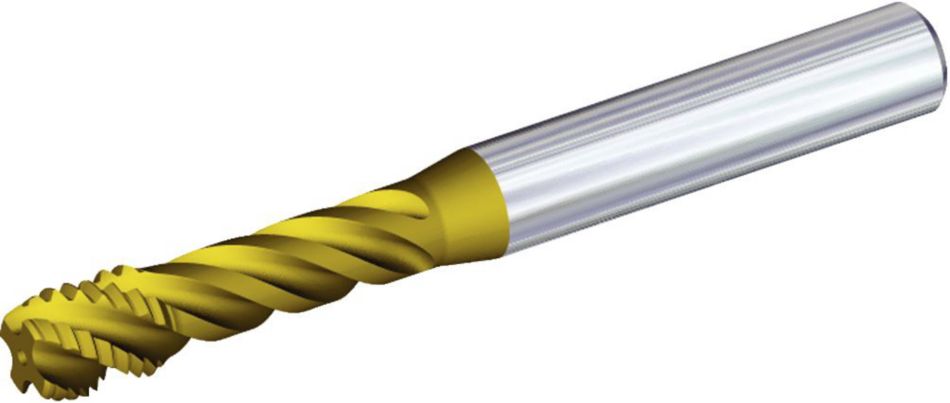

    Generic representation
    List Price
    $339.64/each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Material Pricing Group
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
    • P Steel
    • Tapping: Blind HoleTapping: Blind Hole
    • Class of Fit: 6HXClass of Fit: 6HX
    • Chamfer Form C (2–3)Chamfer Form C (2–3)
    • Through Coolant: Axial: TappingThrough Coolant: Axial: Tapping
    • HMHM
    • Manufacturer’s Specs: MManufacturer’s Specs: M
    • Manufacturer’s Specs: MFManufacturer’s Specs: MF
    • Tapping Helix Angle: 45°Tapping Helix Angle: 45°
    This export format is not yet supported for this category.

    Sending to {{cadTool}} in progress...

    Downloaded file will be available after import in the {{cadTool}} tool library.

    Drawings for 3483059
    Metric
    Inch
    Material Number3483059
    ISO Catalog IDT331M100X150R6HX
    ANSI Catalog IDT331M100X150R6HX
    GradeKC7542
    [D1-TDZ] Thread Diameter SizeM10 X 1.5
    [L] Overall Length 90 mm
    [L] Overall Length 3.5433 in
    [L3] Thread Length 12 mm
    [L3] Thread Length 0.4724 in
    [L2] Useable Length 40 mm
    [L2] Useable Length 1.5748 in
    [D] Adapter / Shank / Bore Diameter10 mm
    [D] Adapter / Shank / Bore Diameter0.3937 in
    [Z] Number of Flutes4
    Thread Tolerance Class ISO6HX-I
    See all Product Variants

    Workpiece Materials

    • Steel

    Uses and application

    • Tapping: Blind HoleTapping: Blind Hole
    • Class of Fit: 6HXClass of Fit: 6HX
    • Chamfer Form C (2–3)Chamfer Form C (2–3)
    • Through Coolant: Axial: TappingThrough Coolant: Axial: Tapping
    • HMHM
    • Manufacturer’s Specs: MManufacturer’s Specs: M
    • Manufacturer’s Specs: MFManufacturer’s Specs: MF
    • Tapping Helix Angle: 45°Tapping Helix Angle: 45°

    Grades

    KC7542

    KC7542

    Coated carbide, PVD — multilayer coating with TiAlN and TiN over a high-strength carbide substrate specifically designed for tap application. Use in steel up to 32 HRC and cast iron at 4x faster speeds than HSS-E-PM taps.

    Features and benefits

    • KC7542 TiAlN + TiN for steel.

    Create Solution to calculate Feeds and Speeds

    After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.

    Tolerance

    shank tolerance
    Dtolerance h6 + / -
    6+0, -0,008
    8 10+0, -0,009
    12 16+0, -0,011
    shank tolerance
    Dtolerance h6 + / -
    .250–.375+0, -.0004
    .438–.625+0, -.0004
