Product Similar To:
TNMG-FW
Kenloc™ Inserts
Material Number1829219
ISO Catalog IDTNMG160408FWANSI Catalog IDTNMG332FW
- P Steel
- M Stainless Steel
- K Cast Iron
Sending to {{cadTool}} in progress...
Downloaded file will be available after import in the {{cadTool}} tool library.
Material Number | 1829219 |
ISO Catalog ID | TNMG160408FW |
ANSI Catalog ID | TNMG332FW |
Grade | KT315 |

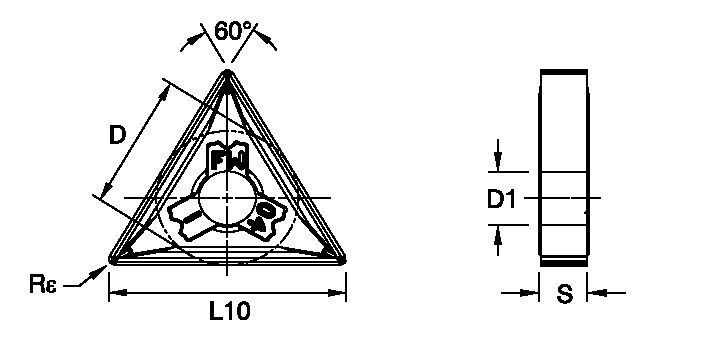

[D] Insert IC Size | 9.525 mm |
[D] Insert IC Size | .375 in |
[L10] Insert Cutting Edge Length | 16.5 mm |
[L10] Insert Cutting Edge Length | .65 in |
[S] Insert Thickness | 4.763 mm |
[S] Insert Thickness | .1875 in |
[Rε] Corner Radius | 0.8 mm |
[Rε] Corner Radius | .0312 in |
[D1] Insert Hole Size | 3.81 mm |
[D1] Insert Hole Size | .15 in |
Workpiece Materials
- Steel
- Stainless Steel
- Cast Iron
Features and benefits
- Finishing wiper when surface finish is of highest importance.
- Beyond™ Drive™ grades included.
Create Solution to calculate Feeds and Speeds
After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.
