| Material Number | 7154841 |
| ISO Catalog ID | CCGT060202MRPPS |
| ANSI Catalog ID | CCGT21505MRPPS |
| Grade | KCS25S |

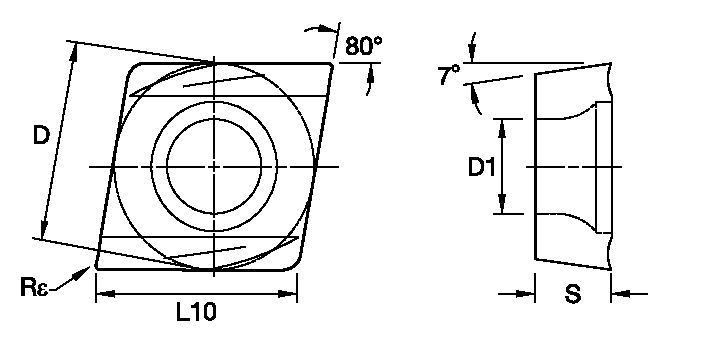

| [D] Insert IC Size | 6.35 mm |
| [D] Insert IC Size | 0.25 in |
| [L10] Insert Cutting Edge Length | 6.64 mm |
| [L10] Insert Cutting Edge Length | 0.2543 in |
| [S] Insert Thickness | 2.38 mm |
| [S] Insert Thickness | 0.0938 in |
| [Rε] Corner Radius | 0.2 mm |
| [Rε] Corner Radius | 0.008 in |
| [D1] Insert Hole Size | 2.8 mm |
| [D1] Insert Hole Size | 0.11 in |
Create Solution to calculate Feeds and Speeds
After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.
