| Material Number | 5538899 |
| ISO Catalog ID | TPMT090204FP |
| ANSI Catalog ID | TPMT18151FP |
| Grade | KCP10B |

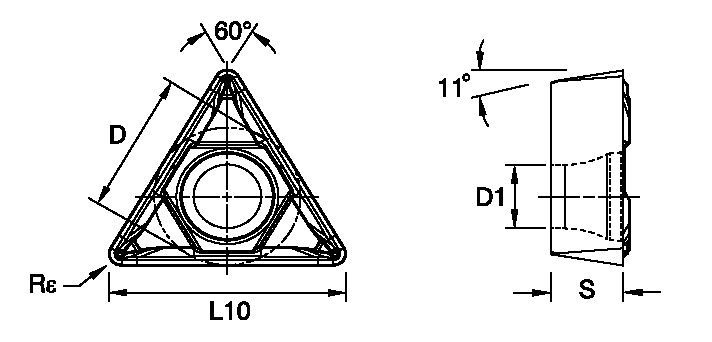

| [D] Insert IC Size | 5.55 mm |
| [D] Insert IC Size | 0.219 in |
| [L10] Insert Cutting Edge Length | 9.63 mm |
| [L10] Insert Cutting Edge Length | 0.3791 in |
| [S] Insert Thickness | 2.38 mm |
| [S] Insert Thickness | 0.0938 in |
| [Rε] Corner Radius | 0.4 mm |
| [Rε] Corner Radius | 0.016 in |
| [D1] Insert Hole Size | 2.5 mm |
| [D1] Insert Hole Size | 0.098 in |
Grades
KCP10B
Composition: A specially engineered cobalt-enriched carbide grade with thick MTCVD-TiCN-Al2O3-TiOCN coating for maximum wear resistance.
Application: An excellent finishing to medium machining grade for a variety of workpiece materials, including most steels, ferritic, martensitic, and PH stainless steels, and cast irons. The cobalt-enriched substrate offers a balanced combination of deformation resistance and edge toughness, while the thick coating layers offer outstanding abrasion resistance and crater wear resistance for high-speed machining. Smooth coating provides resistance to edge build-up and microchipping and produces excellent surface finishes.
Create Solution to calculate Feeds and Speeds
After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.
