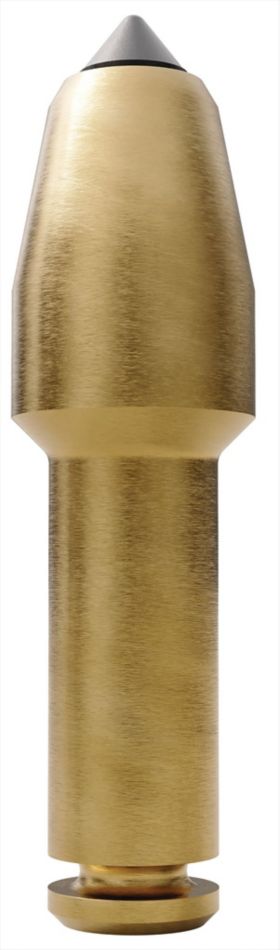

| Número de material | 1010804 |
| Referencia ISO | C21RHD |
| Referencia ANSI | C21RHD |
| Calidad | K3560 |
| Ángulo punta incluido [SIGMA] | 75 |
| Diámetro de punta [TD] | 12.217 mm |
| Diámetro de punta [TD] | 0.481 in |
| Longitud de punta [TL] | 20.599 mm |
| Longitud de punta [TL] | 0.811 in |
| Longitud de calibre [L1] | 45.432 mm |
| Longitud de calibre [L1] | 1.7887 in |
| Diámetro de cuerpo Lateral de la pieza de trabajo [D2] | 26.975 mm |
| Diámetro de cuerpo Lateral de la pieza de trabajo [D2] | 1.062 in |
| Diámetro de orificio/mango [D] | 18.669 mm |
| Diámetro de orificio/mango [D] | 0.735 in |
| Longitud de desviación de retén [LRO] | 47.587 mm |
| Longitud de desviación de retén [LRO] | 1.8735 in |
| Longitud de mango [LS] | 54.953 mm |
| Longitud de mango [LS] | 2.1635 in |
| Longitud total [OAL] | 100.385 mm |
| Longitud total [OAL] | 3.9522 in |
