| Material Number | 5134141 |
| ISO Catalog ID | KGIP0125N0189GD |
| ANSI Catalog ID | KGIP0125N0189GD |
| Grade | KCU45 |
| [D1] Insert Hole Size | 2.8 mm |
| [D1] Insert Hole Size | 0.11 in |
| [W1] Insert Width | 3.56 mm |
| [W1] Insert Width | 0.14 in |
| [W] Cutting Width | 3.18 mm |
| [W] Cutting Width | 0.125 in |
| [S] Insert Thickness | 2.82 mm |
| [S] Insert Thickness | 0.111 in |
| [LI] Insert Length | 12.8 mm |
| [LI] Insert Length | 0.504 in |
Grades
KCU45

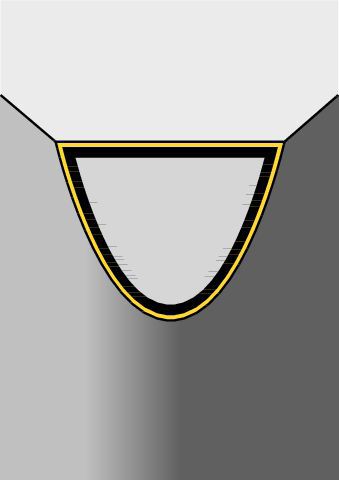

Composition: Multilayered PVD TiN-TiAlN coated medium-grain carbide with high toughness and a TiN top layer for better wear identification.
Application: The versatile TiAlN multilayer coating combined with a tough carbide substrate are perfectly suited to help with pre-centering operations and any other metastable machining conditions.
