      Blocks • 25mm Series
      Blocks • 25mm Series
      Blocks • 25mm Series
      Blocks • 25mm Series

      C20 Small Series

      Blocks • 25mm Series

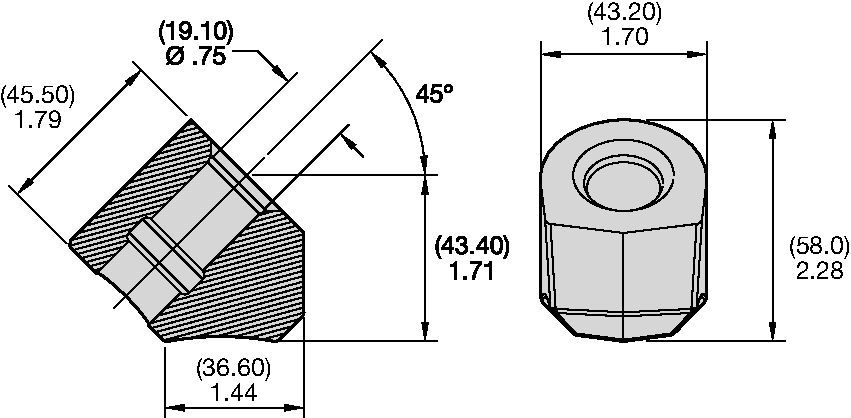

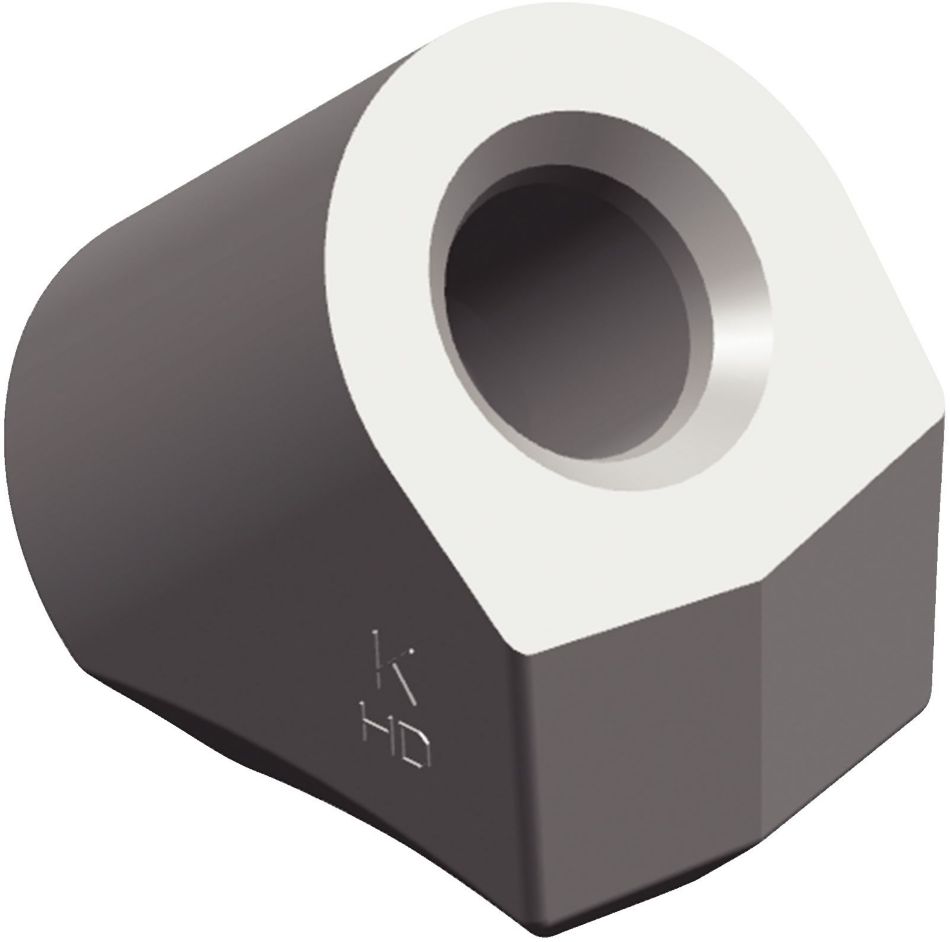

      SAP Material Number 1011640
      ISO Catalog Number U50 10 BLOCK
      ANSI Catalog Number U50 10 BLOCK
      [DSS] Diameter Seating Surface 43.457 mm
      [DSS] Diameter Seating Surface 1.710 in
      [D1] Adapter / Shank / Bore Diameter 20.500 mm
      [D1] Adapter / Shank / Bore Diameter .8070 in
      [H2] Overall Height 54.800 mm
      [H2] Overall Height 2.160 in
      [OAL] Overall Length 59.500 mm
      [OAL] Overall Length 2.340 in
      [B2] Overall Width 43.457 mm
      [B2] Overall Width 1.710 in
      [H1] Centerline Height 40.400 mm
      [H1] Centerline Height 1.590 in
      [LW] Weld Length 40.714 mm
      [LW] Weld Length 1.602 in
      [WW] Weld Width 43.300 mm
      [WW] Weld Width 1.700 in
      Block Angle [BA] 45.000
      See all Product Variants

      Machine Side


      Workpiece Side

      Please adjust the following properties from

      ISO Catalog Number

      ANSI Catalog Number

      to find similar products.
