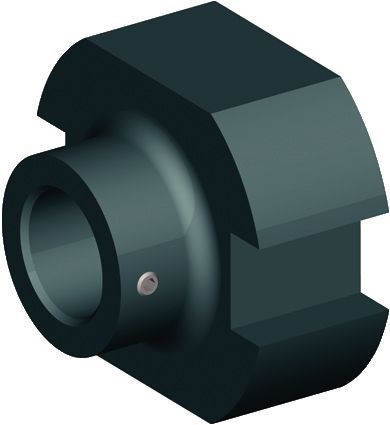

    Tightening fixture - KM4X and HSK - Vise mount

    Tightening Fixtures, KM4X™ and HSK Vise Mounts

    Material Number1013587

    ISO Catalog IDTFHSK80AANSI Catalog IDTFHSK80A

    TF-HSK Vise Mount Tool Holders & Adapters - 1013587 - Kennametal
    TF-HSK Vise Mount Tool Holders & Adapters - 1013587 - Kennametal
    TF-HSK Vise Mount Tool Holders & Adapters - 1013587 - Kennametal
    Open expanded view
    TF-HSK Vise Mount Tool Holders & Adapters - 1013587 - Kennametal
    TF-HSK Vise Mount Tool Holders & Adapters - 1013587 - Kennametal
    Generic representation
    List Price
    /each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Material Pricing Group
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
      {{cadTool}} format is not available

      Sending to {{cadTool}} in progress...

      Downloaded file will be available after import in the {{cadTool}} tool library.

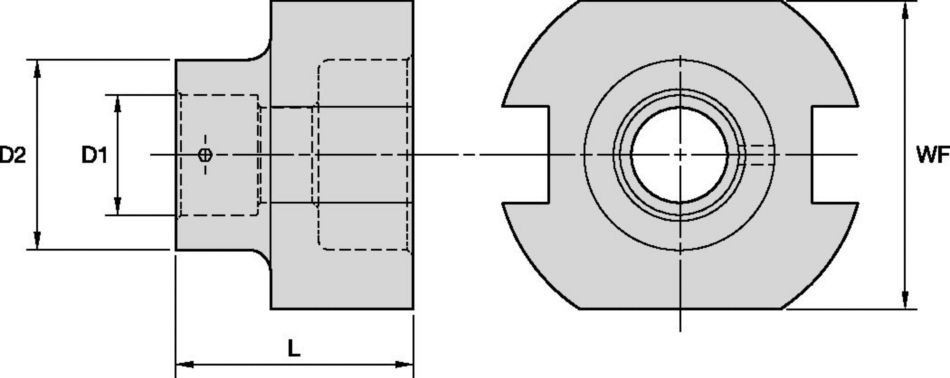

      Drawings for 1013587
      Metric
      Inch
      Material Number1013587
      ISO Catalog IDTFHSK80A
      ANSI Catalog IDTFHSK80A
      [D1] Cutting Tool Maximum Diameter80 mm
      [D1] Adapter / Shank / Bore Diameter3.1496 in
      [D2] Body Diameter 1 Workpiece Side 108 mm
      [D2] Body Diameter 1 Workpiece Side 4.25 in
      [L] Overall Length 120.7 mm
      [L] Overall Length 4.75 in
      [WF] Width of Flat 82.5 mm
      [WF] Width of Flat 3.25 in
      Clamp Screw ID Drive Size8 mm&5/16
      See all Product Variants

      Features and benefits

      • Vise mount pot to hold HSK toolholders for tightening/locking operations.
