HydroForce™ 高扭矩液压刀柄（HT）
HydroForce™ 高扭矩液压刀柄（HT）
HydroForce™ 高扭矩液压刀柄（HT）
HydroForce™ 高扭矩液压刀柄（HT）

HC HT CVKV 英制 • CVKV40

HydroForce™ 高扭矩液压刀柄（HT）

HydroForce™ 高扭矩液压刀柄（HT）
Filters and Columns
Select Filters
Filters
Filters
Filters
View filters in
Metric
Inch
frontEnd
量规长度
量规长度
  • 2.75 in (1)
  • 3.15 in (1)
量规长度
量规长度
  • 80 mm (1)
  • 69.851 mm (1)
前端尺寸
前端尺寸
  • 0.03 in (1)
  • 0.049 in (1)
前端尺寸 Min to 前端尺寸 Max
前端尺寸
前端尺寸
  • 19.05 mm (1)
  • 31.75 mm (1)
前端尺寸 Min to 前端尺寸 Max
No filters matching ""
Change the visible columns with any of the parameters listed below. A maximum of 7 columns can be displayed.
Displaying 1- 2 of 2 results
Select Columns
Select Filters
Metric
Inch
Show
Metric
Inch

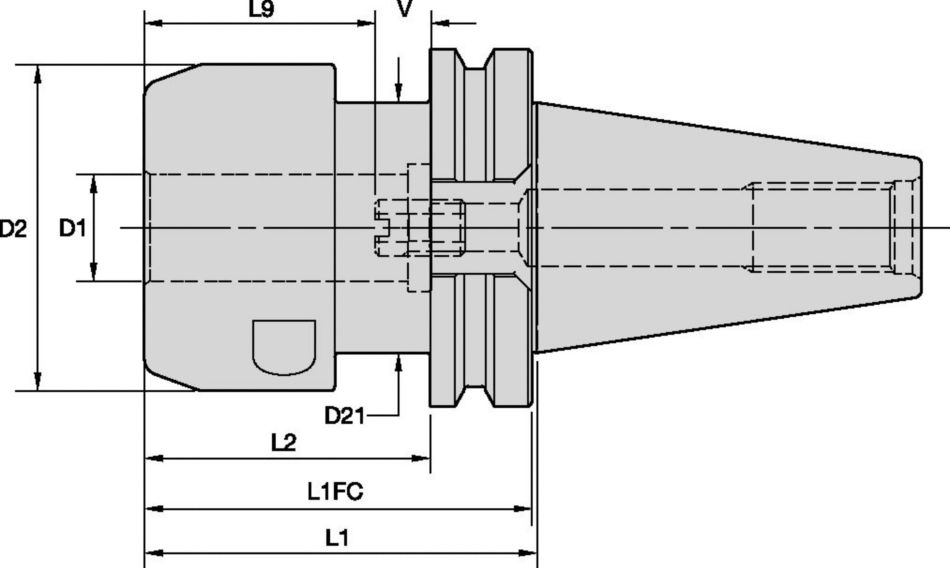

SAP 材料编号 ISO 目录编号 ANSI 目录编号 First Choice [D1] 适配接头/刀柄/镗孔直径 [D1] 适配接头/刀柄/镗孔直径 [D2] 工件侧钻体直径 1 [D2] 工件侧钻体直径 1 [D21] 工件侧钻体直径 2 [D21] 工件侧钻体直径 2 [L1] 量规长度 [L1] 量规长度 量规长度端面接触 [L1FC] 量规长度端面接触 [L1FC] [L2] 可用长度 [L2] 可用长度 [L9] 夹持长度 [L9] 夹持孔长度 [V] 调节范围 [V] 调节范围 致动螺钉 ID 扳手规格 止动螺钉 ID 扳手规格 重量（磅）
5521077 CVKV40HCTHT075275 CVKV40HCTHT075275   19.0500 .7500 58.0000 2.283     69.8500 2.750 68.8400 2.710 50.8000 2.000 41.0000 1.614 10.0000 .3940 5 mm 5 mm 3.45
    List price:
    $666.23 /each
    Your price::
    6048261 CVKV40HCTHT125315 CVKV40HCTHT125315   31.7500 1.250 65.0000 2.559 80.0000 3.149 80.0000 3.149 78.9890 3.109 20.0000 .7870 51.0000 2.007 10.0000 .3940 6 mm 6 mm 4.40
      List price:
      $703.71 /each
      Your price::
      List price:
      Discount: %
      Your price::
      Replacement This item is no longer available
      Replacement Product Please contact customer service for assistance
