TopSwiss MBS™ Insert • Micro Internal Threading • TF style • Full Profile
Micro Boring • Swiss-Type • Small Parts Machining • Full Profile Threading
Material Number7221108
ISO Catalog IDL6TFME060C30T125ANSI Catalog IDL6TFME060C30T125
Sending to {{cadTool}} in progress...
Downloaded file will be available after import in the {{cadTool}} tool library.
Material Number | 7221108 |
ISO Catalog ID | L6TFME060C30T125 |
ANSI Catalog ID | L6TFME060C30T125 |
Qualità | KCU25S |
Tipo di filettatura | M |
Numero di filetti per pollice - Min. | 20.32 |
Numero di filetti per pollice - Massimo | 20.32 |
Passo filetto minimo | 1.25 |
Passo filetto massimo | 1.25 |
[DM] Diametro minimo del foro | 6 mm |
[DM] Diametro minimo del foro | 0.2362 in |

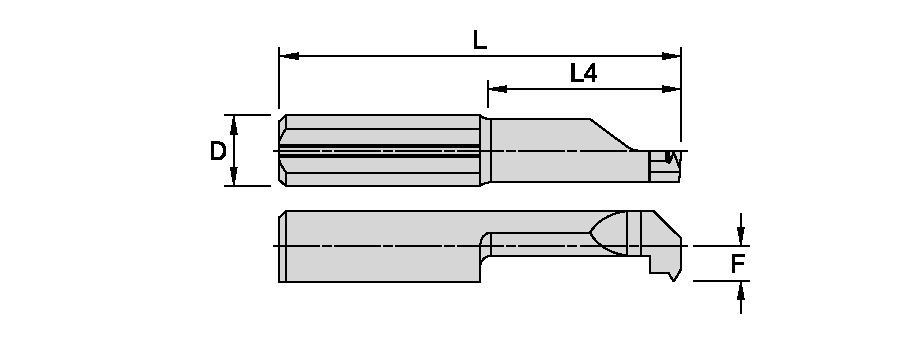

[D] Dia adattatore / stelo / foro | 6 mm |
[D] Dia adattatore / stelo / foro | 0.2362 in |
[CD] Profondità di taglio | 1.25 mm |
[CD] Profondità di taglio | 0.0492 in |
[L4] Massima profondità di barenatura | 30 mm |
[L4] Massima profondità di barenatura | 1.1811 in |
[L] Lunghezza complessiva | 45 mm |
[L] Lunghezza complessiva | 1.7717 in |
Features and benefits
- KCU25S, Universal Coating Designed for Performance and Consistency Across Multiple Materials.
- TF geometry for Threading Full Profile.
