      Inserti Screw-on
      Inserti Screw-on
      Inserti Screw-on
      Inserti Screw-on
      Select the files you wish to request
      Download CAD Drawings

      SDAC 90°

      Inserti Screw-on

      Metric
      Inch
      Codice materiale SAP 1097720
      Codice catalogo ISO SDACR1616K11Q
      Codice catalogo ANSI SDACR1616K11Q

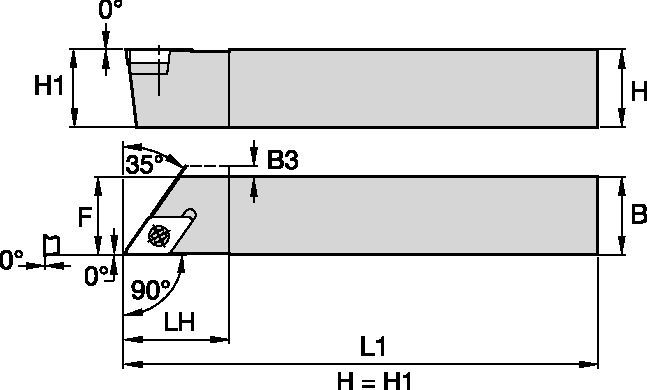

      [H] Altezza stelo 16.0000 mm
      [H] Altezza stelo .6299 in
      [B] Larghezza stelo 16.0000 mm
      [B] Larghezza stelo .6299 in
      [F] Dimensione F 16.0000 mm
      [F] Dimensione F .6299 in
      [L1] Lunghezza utensile 125.0000 mm
      [L1] Lunghezza utensile 4.921 in
      [LH] Lunghezza testa 22.0000 mm
      [LH] Lunghezza testa .8661 in
      Inserto di riferimento DC..11T308
      Vite supporto - Dimensione chiave ID 3.5 mm
      Vite dell’inserto - Dimensione chiave ID T15
      See all Product Variants

      Uses and application

      • TurningTurning
      • ProfilingProfiling

      Workpiece Materials

      P Acciaio
      M Acciai inossidabili
      K Ghisa
      N Materiali non ferrosi
      S Leghe resistenti al calore
      H Materiali temprati
