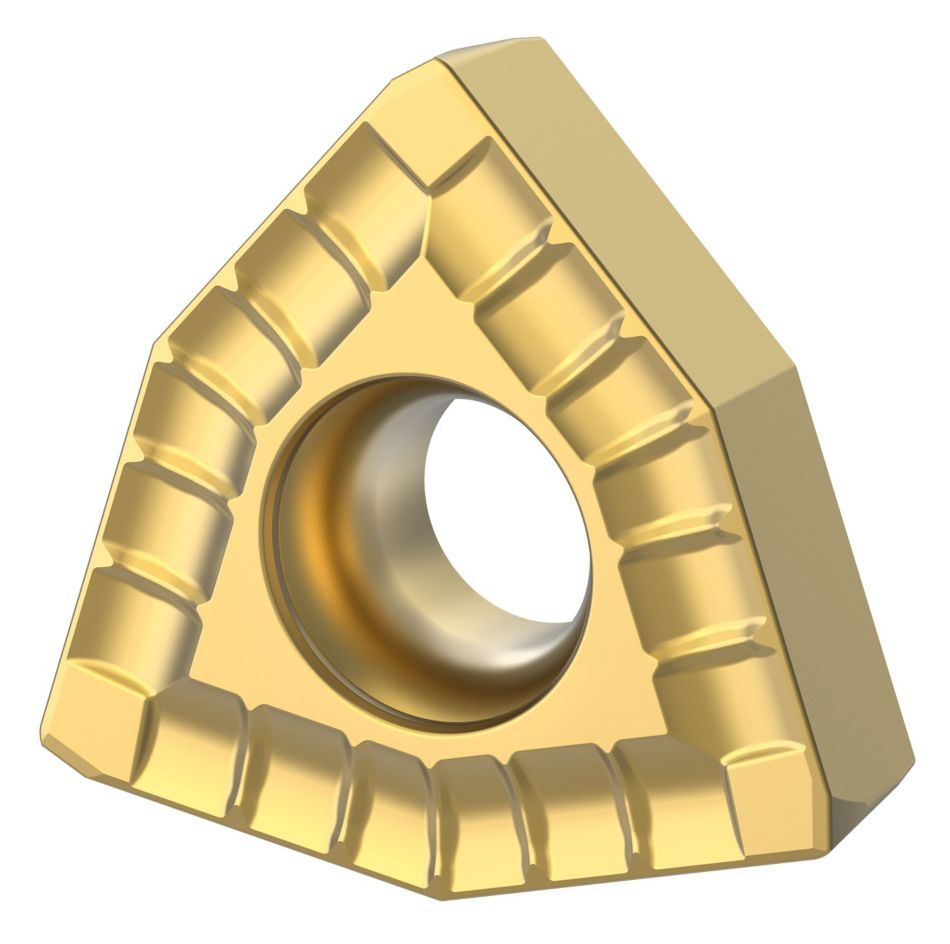

Drill Fix side inserts • DFT-MD Geometry
Пластины Drill Fix™ DFT™ • для головок KSEM PLUS™ A1
Характеристики и преимущества
- Drill Fix DFT cutting edges provide a perfect combination of hole quality, productivity, and efficiency.
- Three indexable cutting edges.
- KC7140™ grade is a TiCN-based, PVD-coated alloyed carbide, ideal for machining alloyed steel and stainless steel on KSEM PLUS systems.
Обрабатываемый материал
P
Steel
M
Stainless Steel
K
Cast Iron
N
Non-Ferrous
S
High-Temp Alloys
Фильтры и столбцы
Filters
Фильтры
Фильтры
Просмотреть фильтры в
Метрическая система
Дюймовая система
Workpiece Material
Workpiece Material
-
P Steel (9)
-
P0Low-Carbon Steels, Long Chipping C < .25%; <125 HB; <530 N/mm^2 UTS(9)
-
P1Low-Carbon Steels, Short Chipping C < .25%; <125 HB; <530 N/mm^2 UTS(9)
-
P2Medium and High Carbon Steels C < .25%; <220 HB; <25 HRC; >530 N/mm^2 UTS(9)
-
P3Alloy Steels & Tool Steels C > .25%; <330 HB; <35 HRC; 600-850 N/mm^2 UTS(9)
-
P4Alloy Steels & Tool Steels C > .25%; 350-420 HB; 35-43 HRC; 850-1400 N/mm^2 UTS(9)
-
P5Ferritic, Martensitic, and PH Stainless Steels <330 HB; <35 HRC; 600-900 N/mm^2 UTS(9)
-
P6High Strength Ferritic, Martensitic, and PH Stainless Steels 350-450 HB; 35-43 HRC; 900-2400 N/mm^2 UTS(9)
-
-
M Stainless Steel (9)
-
M1Austenitic Stainless Steel 130-200 HB; <600 N/mm^2 UTS(9)
-
M2High Strength Austenitic Stainless and Cast Stainless Steels 150-230 HB; <25 HRC; >600 N/mm^2 UTS(9)
-
M3Duplex Stainless Steel 135-275 HB; <30 HRC; 500-1200 N/mm^2 UTS(9)
-
-
K Cast Iron (9)
-
K1Gray Cast Iron 120-290 HB; <32 HRC; 125-500 N/mm^2 UTS(9)
-
K2Low and Medium Strength CGI and Ductile Irons 130-260 HB; <28 HRC; <600 N/mm^2 UTS(9)
-
K3High Strength Ductile and Austempered Ductile Iron 180-350 HB; <43 HRC; >600 N/mm^2 UTS(9)
-
-
N Non-Ferrous Materials (9)
-
N1Wrought Aluminum(9)
-
N2Low-Silicon Aluminum Alloys and Magnesium Alloys Si <12.2%(9)
-
N3High-Silicon Aluminum Alloys Si >12.2%(9)
-
N4Copper, Brass, Zinc-based on machinability index range of 70-100(9)
-
N5Nylon, Plastics, Rubbers, Phenolics, Resins, Fiberglass(9)
-
N6Carbon, Graphite Composites, CFRP(9)
-
N7MMC's(9)
-
-
S High-Temp Alloys (9)
-
S1Iron-Based, Heat-Resistant Alloys 160-260 HB; 25-48 HRC; 500-1200 N/mm^2 UTS(9)
-
S2Cobalt-Based, Heat-Resistant Alloys 250-450 HB; 25-48 HRC; 1000-1450 N/mm^2 UTS(9)
-
S3Nickel-Based, Heat Resistant Alloys 160-450 HB; <48 HRC; 600-1700 N/mm^2 UTS(9)
-
S4Titanium and Titanium Alloys 300-400 HB; 33-43 HRC; 900-1600 N/mm^2 UTS(9)
-
Выбрать First Choice
-
CN (9)
-
DE (9)
-
GB (4)
-
IN (2)
-
SG (6)
-
US (9)
Cutting Condition
Cutting Condition
-
Interrupted (9)
-
Stable (9)
-
Unstable (9)
application
Drilling Condition
Drilling Condition
-
Interrupted (9)
-
Stable (9)
-
Unstable (9)
insertGeometry
Insert IC Size
Insert IC Size
-
8.0 mm (2)
-
10.0 mm (3)
-
12.0 mm (2)
-
15.0 mm (2)
до
Insert IC Size
Insert IC Size
-
0.315 in (2)
-
0.394 in (3)
-
0.473 in (2)
-
0.591 in (2)
до
Cutting Edge Length
Cutting Edge Length
-
5.301 mm (2)
-
6.625 mm (3)
-
7.95 mm (2)
-
9.925 mm (2)
до
Cutting Edge Length
Cutting Edge Length
-
0.209 in (2)
-
0.261 in (3)
-
0.313 in (2)
-
0.391 in (2)
до
No filters matching ""
Измените видимые столбцы с помощью любого из перечисленных ниже параметров. Можно отобразить максимум 7 столбцов.
Показано
1- 9
. 9 результаты
Метрическая система
Дюймовая система
Показать
Метрическая система
Дюймовая система
| SAP Material Number | ISO Catalog Number | ANSI Catalog Number | Grade | First Choice | [L10] Insert Cutting Edge Length | [L10] Insert Cutting Edge Length | [D] Insert IC Size | [D] Insert IC Size | [D1] Insert Hole Size | [D1] Insert Hole Size | [S] Insert Thickness | [S] Insert Thickness | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3648430 | DFT05T308D32MD | DFT05T308D32MD | KC7140 | 5.2900 | .2080 | 8.0000 | .3150 | 3.4000 | .1340 | 3.7500 | .1480 |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Цена по прейскуранту:
$21.48
/каждый
Ваша цена::
Кол-во
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 3669000 | DFT05T308D33MD | DFT05T308D33MD | KC7140 | 5.2900 | .2080 | 8.0000 | .3150 | 3.4000 | .1340 | 3.7500 | .1480 |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Цена по прейскуранту:
$21.48
/каждый
Ваша цена::
Кол-во
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 3648428 | DFT06T308D36MD | DFT06T308D36MD | KC7140 | 6.6200 | .2600 | 10.0000 | .3940 | 4.4000 | .1730 | 3.7500 | .1480 |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Цена по прейскуранту:
$24.17
/каждый
Ваша цена::
Кол-во
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 3669001 | DFT06T308D39MD | DFT06T308D39MD | KC7140 | 6.6200 | .2600 | 10.0000 | .3940 | 4.4000 | .1730 | 3.7500 | .1480 |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Цена по прейскуранту:
$24.17
/каждый
Ваша цена::
Кол-во
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 3669002 | DFT06T308D44MD | DFT06T308D44MD | KC7140 | 6.6200 | .2600 | 10.0000 | .3940 | 4.4000 | .1730 | 3.7500 | .1480 |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Цена по прейскуранту:
$24.17
/каждый
Ваша цена::
Кол-во
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 3648474 | DFT070408D45MD | DFT070408D45MD | KC7140 | 7.9400 | .3130 | 12.0000 | .4720 | 4.4000 | .1730 | 4.7500 | .1870 |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Цена по прейскуранту:
$30.21
/каждый
Ваша цена::
Кол-во
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 3669083 | DFT070408D50MD | DFT070408D50MD | KC7140 | 7.9400 | .3130 | 12.0000 | .4720 | 4.4000 | .1730 | 4.7500 | .1870 |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Цена по прейскуранту:
$30.21
/каждый
Ваша цена::
Кол-во
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 3648478 | DFT090508D56MD | DFT090508D56MD | KC7140 | 9.9200 | .3910 | 15.0000 | .5910 | 5.5000 | .2170 | 5.2500 | .2070 |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Цена по прейскуранту:
$34.02
/каждый
Ваша цена::
Кол-во
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 3669084 | DFT090508D63MD | DFT090508D63MD | KC7140 | 9.9200 | .3910 | 15.0000 | .5910 | 5.5000 | .2170 | 5.2500 | .2070 |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Цена по прейскуранту:
$34.02
/каждый
Ваша цена::
Кол-во
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Цена по прейскуранту:
Скидка: %
Кол-во
Продается в упаковке из
Сплавы
-
KC7140
Composition: PVD TiCN/TiN coated medium-grain carbide with high toughness.
Application: Best suited for machining of steel and stainless steel. This exceptionally tough grade is perfectly suited for metastable machining conditions offering excellent tool life.P SteelS High-Temp AlloysK Cast IronM Stainless SteelN Non-Ferrous
| D1 | tolerance h8 + / - |
| .500–.709 | +.000/-.0010 |
| .709–1.181 | +.000/-.0013 |
| 1.181–1.575 | +.000/-.0015 |
| D1 | tolerance h8 + / - |
| 12,5–18 | +0,000/-0,027 |
| 18–30 | +0,000/-0,033 |
| 30–40 | +0,000/-0,039 |
| Metric | |||||||||||
| Material Group | Condition | Cutting Speed vc | Recommended Feed Rate (fz) by Diameter | ||||||||
| Range m/min | |||||||||||
| Min | Starting Value | Max | Ø | KSEM 14….17 DFR/DFC04... 28.00 31,74 | KSEM 15….18 DFT/DFC05… 31,74 35,99 | KSEM 13….22 DFT/DFC06... 36,00 44,99 | KSEM 18….28 DFT/DFC07... 45,00 55,99 | KSEM 20….34 DFT/DFC09... 56,00 70 | |||
| P | 1 | S | 115 | 235 | 290 | mm/r | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 |
| U | 90 | 160 | 215 | mm/r | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 | ||
| I | 65 | 100 | 140 | mm/r | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 | ||
| 2 | S | 90 | 190 | 230 | mm/r | 0,160–0,280 | 0,160–0,280 | 0,200–0,360 | 0,200–0,400 | 0,200–0,450 | |
| U | 71 | 130 | 170 | mm/r | 0,160–0,280 | 0,160–0,280 | 0,200–0,360 | 0,200–0,400 | 0,200–0,450 | ||
| I | 50 | 80 | 110 | mm/r | 0,160–0,280 | 0,160–0,280 | 0,200–0,320 | 0,200–0,400 | 0,200–0,450 | ||
| 3 | S | 90 | 180 | 230 | mm/r | 0,160–0,280 | 0,160–0,280 | 0,200–0,320 | 0,200–0,400 | 0,200–0,450 | |
| U | 70 | 120 | 170 | mm/r | 0,160–0,280 | 0,160–0,280 | 0,200–0,320 | 0,200–0,400 | 0,200–0,450 | ||
| I | 50 | 70 | 106 | mm/r | 0,160–0,280 | 0,160–0,280 | 0,200–0,320 | 0,200–0,400 | 0,200–0,450 | ||
| 4 | S | 90 | 140 | 220 | mm/r | 0,160–0,280 | 0,160–0,280 | 0,200–0,320 | 0,200–0,400 | 0,200–0,450 | |
| U | 70 | 110 | 160 | mm/r | 0,160–0,280 | 0,160–0,280 | 0,200–0,320 | 0,200–0,400 | 0,200–0,450 | ||
| I | 50 | 80 | 110 | mm/r | 0,160–0,280 | 0,160–0,280 | 0,200–0,320 | 0,200–0,400 | 0,200–0,450 | ||
| 5 | S | 90 | 130 | 210 | mm/r | 0,160–0,280 | 0,160–0,280 | 0,200–0,320 | 0,200–0,400 | 0,200–0,450 | |
| U | 70 | 100 | 150 | mm/r | 0,160–0,280 | 0,160–0,280 | 0,200–0,320 | 0,200–0,400 | 0,200–0,450 | ||
| I | 50 | 70 | 100 | mm/r | 0,160–0,280 | 0,160–0,280 | 0,200–0,320 | 0,200–0,400 | 0,200–0,450 | ||
| 6 | S | 70 | 90 | 180 | mm/r | 0,160–0,280 | 0,160–0,280 | 0,200–0,320 | 0,200–0,400 | 0,200–0,450 | |
| U | 50 | 75 | 120 | mm/r | 0,160–0,280 | 0,160–0,280 | 0,200–0,320 | 0,200–0,400 | 0,200–0,450 | ||
| I | 40 | 60 | 100 | mm/r | 0,160–0,280 | 0,160–0,280 | 0,200–0,320 | 0,200–0,400 | 0,200–0,450 | ||
| M | 1 | S | 60 | 110 | 135 | mm/r | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 |
| U | 40 | 70 | 90 | mm/r | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 | ||
| I | 30 | 50 | 65 | mm/r | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 | ||
| 2 | S | 60 | 100 | 135 | mm/r | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 | |
| U | 40 | 60 | 90 | mm/r | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 | ||
| I | 30 | 50 | 65 | mm/r | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 | ||
| 3 | S | 50 | 90 | 135 | mm/r | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 | |
| U | 40 | 60 | 90 | mm/r | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 | ||
| I | 25 | 40 | 65 | mm/r | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 | ||
| K | 1 | S | 90 | 170 | 230 | mm/r | 0,180–0,300 | 0,180–0,300 | 0,216–0,360 | 0,240–0,420 | 0,300–0,480 |
| U | 60 | 120 | 160 | mm/r | 0,180–0,300 | 0,180–0,300 | 0,216–0,360 | 0,240–0,420 | 0,300–0,480 | ||
| I | 40 | 70 | 90 | mm/r | 0,180–0,300 | 0,180–0,300 | 0,216–0,360 | 0,240–0,420 | 0,300–0,480 | ||
| 2 | S | 90 | 160 | 220 | mm/r | 0,180–0,300 | 0,180–0,300 | 0,216–0,360 | 0,240–0,420 | 0,300–0,480 | |
| U | 60 | 110 | 160 | mm/r | 0,180–0,300 | 0,180–0,300 | 0,216–0,360 | 0,240–0,420 | 0,300–0,480 | ||
| I | 40 | 70 | 100 | mm/r | 0,180–0,300 | 0,180–0,300 | 0,216–0,360 | 0,240–0,420 | 0,300–0,480 | ||
| 3 | S | 90 | 150 | 210 | mm/r | 0,180–0,300 | 0,180–0,300 | 0,216–0,360 | 0,240–0,420 | 0,300–0,480 | |
| U | 60 | 100 | 150 | mm/r | 0,180–0,300 | 0,180–0,300 | 0,216–0,360 | 0,240–0,420 | 0,300–0,480 | ||
| I | 35 | 60 | 90 | mm/r | 0,180–0,300 | 0,180–0,300 | 0,216–0,360 | 0,240–0,420 | 0,300–0,480 | ||
| N | 1 | S | 150 | 240 | 360 | mm/r | 0,120–0,200 | 0,120–0,200 | 0,144–0,280 | 0,160–0,320 | 0,200–0,400 |
| U | 100 | 160 | 240 | mm/r | 0,120–0,200 | 0,120–0,200 | 0,144–0,280 | 0,160–0,320 | 0,200–0,400 | ||
| I | 60 | 100 | 160 | mm/r | 0,120–0,200 | 0,120–0,200 | 0,144–0,280 | 0,160–0,320 | 0,200–0,400 | ||
| 2 | S | 150 | 220 | 360 | mm/r | 0,120–0,200 | 0,120–0,200 | 0,144–0,280 | 0,160–0,320 | 0,200–0,400 | |
| U | 100 | 150 | 240 | mm/r | 0,120–0,200 | 0,120–0,200 | 0,144–0,280 | 0,160–0,320 | 0,200–0,400 | ||
| I | 60 | 100 | 160 | mm/r | 0,120–0,200 | 0,120–0,200 | 0,144–0,280 | 0,160–0,320 | 0,200–0,400 | ||
| 3 | S | 150 | 200 | 360 | mm/r | 0,120–0,200 | 0,120–0,200 | 0,144–0,280 | 0,160–0,320 | 0,200–0,400 | |
| U | 100 | 140 | 240 | mm/r | 0,120–0,200 | 0,120–0,200 | 0,144–0,280 | 0,160–0,320 | 0,200–0,400 | ||
| I | 60 | 90 | 160 | mm/r | 0,120–0,200 | 0,120–0,200 | 0,144–0,280 | 0,160–0,320 | 0,200–0,400 | ||
| 4 | S | 150 | 200 | 360 | mm/r | 0,120–0,200 | 0,120–0,200 | 0,144–0,280 | 0,160–0,320 | 0,200–0,400 | |
| U | 100 | 140 | 240 | mm/r | 0,120–0,200 | 0,120–0,200 | 0,144–0,280 | 0,160–0,320 | 0,200–0,400 | ||
| I | 60 | 90 | 160 | mm/r | 0,120–0,200 | 0,120–0,200 | 0,144–0,280 | 0,160–0,320 | 0,200–0,400 | ||
| 5 | S | 150 | 200 | 360 | mm/r | 0,120–0,200 | 0,120–0,200 | 0,144–0,280 | 0,160–0,320 | 0,200–0,400 | |
| U | 100 | 140 | 240 | mm/r | 0,120–0,200 | 0,120–0,200 | 0,144–0,280 | 0,160–0,320 | 0,200–0,400 | ||
| I | 60 | 90 | 160 | mm/r | 0,120–0,200 | 0,120–0,200 | 0,144–0,280 | 0,160–0,320 | 0,200–0,400 | ||
| 6 | S | 150 | 200 | 360 | mm/r | 0,120–0,200 | 0,120–0,200 | 0,144–0,280 | 0,160–0,320 | 0,200–0,400 | |
| U | 100 | 140 | 240 | mm/r | 0,120–0,200 | 0,120–0,200 | 0,144–0,280 | 0,160–0,320 | 0,200–0,400 | ||
| I | 60 | 90 | 160 | mm/r | 0,120–0,200 | 0,120–0,200 | 0,144–0,280 | 0,160–0,320 | 0,200–0,400 | ||
| 7 | S | 110 | 220 | 260 | mm/r | 0,120–0,200 | 0,120–0,200 | 0,144–0,280 | 0,160–0,320 | 0,200–0,400 | |
| U | 70 | 140 | 170 | mm/r | 0,120–0,200 | 0,120–0,200 | 0,144–0,280 | 0,160–0,320 | 0,200–0,400 | ||
| I | 45 | 90 | 110 | mm/r | 0,120–0,200 | 0,120–0,200 | 0,144–0,280 | 0,160–0,320 | 0,200–0,400 | ||
| S | 1 | S | 25 | 50 | 75 | mm/r | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 |
| U | 20 | 40 | 60 | mm/r | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 | ||
| I | 15 | 30 | 50 | mm/r | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 | ||
| 2 | S | 20 | 40 | 60 | mm/r | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 | |
| U | 15 | 30 | 45 | mm/r | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 | ||
| I | 12 | 25 | 35 | mm/r | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 | ||
| 3 | S | 20 | 40 | 60 | mm/r | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 | |
| U | 15 | 30 | 45 | mm/r | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 | ||
| I | 12 | 25 | 40 | mm/r | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 | ||
| 4 | S | 20 | 40 | 60 | mm/r | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 | |
| U | 15 | 30 | 45 | mm/r | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 | ||
| I | 12 | 25 | 40 | mm/r | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 | ||
| Inch | |||||||||||
| Material Group | Condition | Cutting Speed vc | Recommended Feed Rate (fz) by Diameter | ||||||||
| Range SFM | |||||||||||
| Min | Starting Value | Max | Ø | KSEM 14….17 DFR/DFC04... 1.102 1.249 | KSEM 15….18 DFT/DFC05… 1.250 1.416 | KSEM 13….22 DFT/DFC06... 1.417 1.771 | KSEM 18….28 DFT/DFC07... 1.772 2.204 | KSEM 20….34 DFT/DFC09... 2.205 4.0295 | |||
| P | 1 | S | 370 | 775 | 944 | IPR | 0.005–0.010 | 0.005–0.010 | 0.006–0.011 | 0.006–0.013 | 0.008–0.014 |
| U | 290 | 532 | 698 | IPR | 0.005–0.010 | 0.005–0.010 | 0.006–0.011 | 0.006–0.013 | 0.008–0.014 | ||
| I | 205 | 327 | 451 | IPR | 0.005–0.010 | 0.005–0.010 | 0.006–0.011 | 0.006–0.013 | 0.008–0.014 | ||
| 2 | S | 295 | 623 | 755 | IPR | 0.006–0.011 | 0.006–0.011 | 0.008–0.014 | 0.008–0.016 | 0.008–0.018 | |
| U | 233 | 427 | 558 | IPR | 0.006–0.011 | 0.006–0.011 | 0.008–0.014 | 0.008–0.016 | 0.008–0.018 | ||
| I | 164 | 262 | 361 | IPR | 0.006–0.011 | 0.006–0.011 | 0.008–0.014 | 0.008–0.016 | 0.008–0.018 | ||
| 3 | S | 295 | 591 | 755 | IPR | 0.006–0.011 | 0.006–0.011 | 0.008–0.014 | 0.008–0.016 | 0.008–0.018 | |
| U | 230 | 394 | 558 | IPR | 0.006–0.011 | 0.006–0.011 | 0.008–0.014 | 0.008–0.016 | 0.008–0.018 | ||
| I | 164 | 230 | 361 | IPR | 0.006–0.011 | 0.006–0.011 | 0.008–0.014 | 0.008–0.016 | 0.008–0.018 | ||
| 4 | S | 295 | 459 | 722 | IPR | 0.006–0.011 | 0.006–0.011 | 0.008–0.014 | 0.008–0.016 | 0.008–0.018 | |
| U | 230 | 361 | 525 | IPR | 0.006–0.011 | 0.006–0.011 | 0.008–0.014 | 0.008–0.016 | 0.008–0.018 | ||
| I | 264 | 262 | 361 | IPR | 0.006–0.011 | 0.006–0.011 | 0.008–0.014 | 0.008–0.016 | 0.008–0.018 | ||
| 5 | S | 295 | 427 | 689 | IPR | 0.006–0.011 | 0.006–0.011 | 0.008–0.014 | 0.008–0.016 | 0.008–0.018 | |
| U | 230 | 328 | 689 | IPR | 0.006–0.011 | 0.006–0.011 | 0.008–0.014 | 0.008–0.016 | 0.008–0.018 | ||
| I | 164 | 230 | 492 | IPR | 0.006–0.011 | 0.006–0.011 | 0.008–0.014 | 0.008–0.016 | 0.008–0.018 | ||
| 6 | S | 230 | 295 | 591 | IPR | 0.006–0.011 | 0.006–0.011 | 0.008–0.014 | 0.008–0.016 | 0.008–0.018 | |
| U | 164 | 246 | 394 | IPR | 0.006–0.011 | 0.006–0.011 | 0.008–0.014 | 0.008–0.016 | 0.008–0.018 | ||
| I | 131 | 197 | 328 | IPR | 0.006–0.011 | 0.006–0.011 | 0.008–0.014 | 0.008–0.016 | 0.008–0.018 | ||
| M | 1 | S | 197 | 361 | 443 | IPR | 0.005–0.010 | 0.005–0.010 | 0.006–0.011 | 0.006–0.013 | 0.008–0.014 |
| U | 131 | 230 | 295 | IPR | 0.005–0.010 | 0.005–0.010 | 0.006–0.011 | 0.006–0.013 | 0.008–0.014 | ||
| I | 98 | 164 | 213 | IPR | 0.005–0.010 | 0.005–0.010 | 0.006–0.011 | 0.006–0.013 | 0.008–0.014 | ||
| 2 | S | 197 | 328 | 443 | IPR | 0.005–0.010 | 0.005–0.010 | 0.006–0.011 | 0.006–0.013 | 0.008–0.014 | |
| U | 131 | 197 | 295 | IPR | 0.005–0.010 | 0.005–0.010 | 0.006–0.011 | 0.006–0.013 | 0.008–0.014 | ||
| I | 98 | 164 | 213 | IPR | 0.005–0.010 | 0.005–0.010 | 0.006–0.011 | 0.006–0.013 | 0.008–0.014 | ||
| 3 | S | 164 | 295 | 443 | IPR | 0.005–0.010 | 0.005–0.010 | 0.006–0.011 | 0.006–0.013 | 0.008–0.014 | |
| U | 131 | 197 | 295 | IPR | 0.005–0.010 | 0.005–0.010 | 0.006–0.011 | 0.006–0.013 | 0.008–0.014 | ||
| I | 82 | 131 | 213 | IPR | 0.005–0.010 | 0.005–0.010 | 0.006–0.011 | 0.006–0.013 | 0.008–0.014 | ||
| K | 1 | S | 295 | 558 | 755 | IPR | 0.007–0.012 | 0.007–0.012 | 0.009–0.014 | 0.009–0.017 | 0.012–0.019 |
| U | 197 | 394 | 525 | IPR | 0.007–0.012 | 0.007–0.012 | 0.009–0.014 | 0.009–0.017 | 0.012–0.019 | ||
| I | 131 | 230 | 295 | IPR | 0.007–0.012 | 0.007–0.012 | 0.009–0.014 | 0.009–0.017 | 0.012–0.019 | ||
| 2 | S | 295 | 525 | 722 | IPR | 0.007–0.012 | 0.007–0.012 | 0.009–0.014 | 0.009–0.017 | 0.012–0.019 | |
| U | 197 | 361 | 525 | IPR | 0.007–0.012 | 0.007–0.012 | 0.009–0.014 | 0.009–0.017 | 0.012–0.019 | ||
| I | 131 | 230 | 328 | IPR | 0.007–0.012 | 0.007–0.012 | 0.009–0.014 | 0.009–0.017 | 0.012–0.019 | ||
| 3 | S | 295 | 492 | 689 | IPR | 0.007–0.012 | 0.007–0.012 | 0.009–0.014 | 0.009–0.017 | 0.012–0.019 | |
| U | 197 | 328 | 492 | IPR | 0.007–0.012 | 0.007–0.012 | 0.009–0.014 | 0.009–0.017 | 0.012–0.019 | ||
| I | 115 | 197 | 295 | IPR | 0.007–0.012 | 0.007–0.012 | 0.009–0.014 | 0.009–0.017 | 0.012–0.019 | ||
| N | 1 | S | 492 | 787 | 1181 | IPR | 0.005–0.008 | 0.005–0.008 | 0.006–0.011 | 0.006–0.013 | 0.008–0.016 |
| U | 328 | 525 | 787 | IPR | 0.005–0.008 | 0.005–0.008 | 0.006–0.011 | 0.006–0.013 | 0.008–0.016 | ||
| I | 197 | 328 | 525 | IPR | 0.005–0.008 | 0.005–0.008 | 0.006–0.011 | 0.006–0.013 | 0.008–0.016 | ||
| 2 | S | 492 | 722 | 1181 | IPR | 0.005–0.008 | 0.005–0.008 | 0.006–0.011 | 0.006–0.013 | 0.008–0.016 | |
| U | 328 | 492 | 787 | IPR | 0.005–0.008 | 0.005–0.008 | 0.006–0.011 | 0.006–0.013 | 0.008–0.016 | ||
| I | 197 | 328 | 525 | IPR | 0.005–0.008 | 0.005–0.008 | 0.006–0.011 | 0.006–0.013 | 0.008–0.016 | ||
| 3 | S | 492 | 722 | 1181 | IPR | 0.005–0.008 | 0.005–0.008 | 0.006–0.011 | 0.006–0.013 | 0.008–0.016 | |
| U | 328 | 492 | 787 | IPR | 0.005–0.008 | 0.005–0.008 | 0.006–0.011 | 0.006–0.013 | 0.008–0.016 | ||
| I | 197 | 328 | 525 | IPR | 0.005–0.008 | 0.005–0.008 | 0.006–0.011 | 0.006–0.013 | 0.008–0.016 | ||
| 4 | S | 492 | 722 | 1181 | IPR | 0.005–0.008 | 0.005–0.008 | 0.006–0.011 | 0.006–0.013 | 0.008–0.016 | |
| U | 328 | 492 | 787 | IPR | 0.005–0.008 | 0.005–0.008 | 0.006–0.011 | 0.006–0.013 | 0.008–0.016 | ||
| I | 197 | 328 | 525 | IPR | 0.005–0.008 | 0.005–0.008 | 0.006–0.011 | 0.006–0.013 | 0.008–0.016 | ||
| 5 | S | 492 | 722 | 1181 | IPR | 0.005–0.008 | 0.005–0.008 | 0.006–0.011 | 0.006–0.013 | 0.008–0.016 | |
| U | 328 | 492 | 787 | IPR | 0.005–0.008 | 0.005–0.008 | 0.006–0.011 | 0.006–0.013 | 0.008–0.016 | ||
| I | 197 | 328 | 525 | IPR | 0.005–0.008 | 0.005–0.008 | 0.006–0.011 | 0.006–0.013 | 0.008–0.016 | ||
| 6 | S | 492 | 656 | 1181 | IPR | 0.005–0.008 | 0.005–0.008 | 0.006–0.011 | 0.006–0.013 | 0.008–0.016 | |
| U | 328 | 459 | 787 | IPR | 0.005–0.008 | 0.005–0.008 | 0.006–0.011 | 0.006–0.013 | 0.008–0.016 | ||
| I | 197 | 295 | 525 | IPR | 0.005–0.008 | 0.005–0.008 | 0.006–0.011 | 0.006–0.013 | 0.008–0.016 | ||
| 7 | S | 361 | 722 | 853 | IPR | 0.005–0.008 | 0.005–0.008 | 0.006–0.011 | 0.006–0.013 | 0.008–0.016 | |
| U | 230 | 459 | 558 | IPR | 0.005–0.008 | 0.005–0.008 | 0.006–0.011 | 0.006–0.013 | 0.008–0.016 | ||
| I | 148 | 295 | 361 | IPR | 0.005–0.008 | 0.005–0.008 | 0.006–0.011 | 0.006–0.013 | 0.008–0.016 | ||
| S | 1 | S | 82 | 164 | 246 | IPR | 0.005–0.010 | 0.005–0.010 | 0.006–0.011 | 0.006–0.013 | 0.008–0.014 |
| U | 66 | 131 | 197 | IPR | 0.005–0.010 | 0.005–0.010 | 0.006–0.011 | 0.006–0.013 | 0.008–0.014 | ||
| I | 49 | 98 | 164 | IPR | 0.005–0.010 | 0.005–0.010 | 0.006–0.011 | 0.006–0.013 | 0.008–0.014 | ||
| 2 | S | 66 | 131 | 197 | IPR | 0.005–0.010 | 0.005–0.010 | 0.006–0.011 | 0.006–0.013 | 0.008–0.014 | |
| U | 49 | 98 | 148 | IPR | 0.005–0.010 | 0.005–0.010 | 0.006–0.011 | 0.006–0.013 | 0.008–0.014 | ||
| I | 39 | 82 | 115 | IPR | 0.005–0.010 | 0.005–0.010 | 0.006–0.011 | 0.006–0.013 | 0.008–0.014 | ||
| 3 | S | 66 | 131 | 197 | IPR | 0.005–0.010 | 0.005–0.010 | 0.006–0.011 | 0.006–0.013 | 0.008–0.014 | |
| U | 49 | 98 | 148 | IPR | 0.005–0.010 | 0.005–0.010 | 0.006–0.011 | 0.006–0.013 | 0.008–0.014 | ||
| I | 39 | 82 | 131 | IPR | 0.005–0.010 | 0.005–0.010 | 0.006–0.011 | 0.006–0.013 | 0.008–0.014 | ||
| 4 | S | 66 | 131 | 197 | IPR | 0.005–0.010 | 0.005–0.010 | 0.006–0.011 | 0.006–0.013 | 0.008–0.014 | |
| U | 49 | 98 | 148 | IPR | 0.005–0.010 | 0.005–0.010 | 0.006–0.011 | 0.006–0.013 | 0.008–0.014 | ||
| I | 39 | 82 | 131 | IPR | 0.005–0.010 | 0.005–0.010 | 0.006–0.011 | 0.006–0.013 | 0.008–0.014 | ||
| Metric | |||||||||||
| Condition | Cutting Speed vc | ||||||||||
| Range m/min | Recommended Feed Rate (fz) by Diameter | ||||||||||
| Material Group | Min | Starting Value | Max | Ø | KSEM 14….17 DFR/DFC04... 28,00 31,74 | KSEM 15….18 DFT/DFC05… 31,75 35,99 | KSEM 13….22 DFT/DFC06... 36,00 44,99 | KSEM 18….28 DFT/DFC07... 45,00 55,99 | KSEM 20….34 DFT/DFC09... 56,00 70,00 | ||
| P | 1 | S | 115 | 235 | 290 | mm/dev | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 |
| U | 90 | 160 | 215 | mm/dev | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 | ||
| I | 65 | 100 | 140 | mm/dev | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 | ||
| 2 | S | 90 | 190 | 230 | mm/dev | 0,160–0,280 | 0,160–0,280 | 0,200–0,360 | 0,200–0,400 | 0,200–0,450 | |
| U | 71 | 130 | 170 | mm/dev | 0,160–0,280 | 0,160–0,280 | 0,200–0,360 | 0,200–0,400 | 0,200–0,450 | ||
| I | 50 | 80 | 110 | mm/dev | 0,160–0,280 | 0,160–0,280 | 0,200–0,320 | 0,200–0,400 | 0,200–0,450 | ||
| 3 | S | 90 | 180 | 230 | mm/dev | 0,160–0,280 | 0,160–0,280 | 0,200–0,320 | 0,200–0,400 | 0,200–0,450 | |
| U | 70 | 120 | 170 | mm/dev | 0,160–0,280 | 0,160–0,280 | 0,200–0,320 | 0,200–0,400 | 0,200–0,450 | ||
| I | 50 | 70 | 106 | mm/dev | 0,160–0,280 | 0,160–0,280 | 0,200–0,320 | 0,200–0,400 | 0,200–0,450 | ||
| 4 | S | 90 | 140 | 220 | mm/dev | 0,160–0,280 | 0,160–0,280 | 0,200–0,320 | 0,200–0,400 | 0,200–0,450 | |
| U | 70 | 110 | 160 | mm/dev | 0,160–0,280 | 0,160–0,280 | 0,200–0,320 | 0,200–0,400 | 0,200–0,450 | ||
| I | 50 | 80 | 110 | mm/dev | 0,160–0,280 | 0,160–0,280 | 0,200–0,320 | 0,200–0,400 | 0,200–0,450 | ||
| 5 | S | 90 | 130 | 210 | mm/dev | 0,160–0,280 | 0,160–0,280 | 0,200–0,320 | 0,200–0,400 | 0,200–0,450 | |
| U | 70 | 100 | 150 | mm/dev | 0,160–0,280 | 0,160–0,280 | 0,200–0,320 | 0,200–0,400 | 0,200–0,450 | ||
| I | 50 | 70 | 100 | mm/dev | 0,160–0,280 | 0,160–0,280 | 0,200–0,320 | 0,200–0,400 | 0,200–0,450 | ||
| 6 | S | 70 | 90 | 180 | mm/dev | 0,160–0,280 | 0,160–0,280 | 0,200–0,320 | 0,200–0,400 | 0,200–0,450 | |
| U | 50 | 75 | 120 | mm/dev | 0,160–0,280 | 0,160–0,280 | 0,200–0,320 | 0,200–0,400 | 0,200–0,450 | ||
| I | 40 | 60 | 100 | mm/dev | 0,160–0,280 | 0,160–0,280 | 0,200–0,320 | 0,200–0,400 | 0,200–0,450 | ||
| M | 1 | S | 60 | 110 | 135 | mm/dev | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 |
| U | 40 | 70 | 90 | mm/dev | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 | ||
| I | 30 | 50 | 65 | mm/dev | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 | ||
| 2 | S | 60 | 100 | 135 | mm/dev | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 | |
| U | 40 | 60 | 90 | mm/dev | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 | ||
| I | 30 | 50 | 65 | mm/dev | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 | ||
| 3 | S | 50 | 90 | 135 | mm/dev | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 | |
| U | 40 | 60 | 90 | mm/dev | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 | ||
| I | 25 | 40 | 65 | mm/dev | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 | ||
| K | 1 | S | 90 | 170 | 230 | mm/dev | 0,180 - 0,300 | 0,180 - 0,300 | 0,216 - 0,360 | 0,240 - 0,420 | 0,300 - 0,480 |
| U | 60 | 120 | 160 | mm/dev | 0,180–0,300 | 0,180–0,300 | 0,216–0,360 | 0,240–0,420 | 0,300–0,480 | ||
| I | 40 | 70 | 90 | mm/dev | 0,180 - 0,300 | 0,180 - 0,300 | 0,216 - 0,360 | 0,240 - 0,420 | 0,300 - 0,480 | ||
| 2 | S | 90 | 160 | 220 | mm/dev | 0,180–0,300 | 0,180–0,300 | 0,216–0,360 | 0,240–0,420 | 0,300–0,480 | |
| U | 60 | 110 | 160 | mm/dev | 0,180 - 0,300 | 0,180 - 0,300 | 0,216 - 0,360 | 0,240 - 0,420 | 0,300 - 0,480 | ||
| I | 40 | 70 | 100 | mm/dev | 0,180–0,300 | 0,180–0,300 | 0,216–0,360 | 0,240–0,420 | 0,300–0,480 | ||
| 3 | S | 90 | 150 | 210 | mm/dev | 0,180 - 0,300 | 0,180 - 0,300 | 0,216 - 0,360 | 0,240 - 0,420 | 0,300 - 0,480 | |
| U | 60 | 100 | 150 | mm/dev | 0,180–0,300 | 0,180–0,300 | 0,216–0,360 | 0,240–0,420 | 0,300–0,480 | ||
| I | 35 | 60 | 90 | mm/dev | 0,180 - 0,300 | 0,180 - 0,300 | 0,216 - 0,360 | 0,240 - 0,420 | 0,300 - 0,480 | ||
| N | 1 | S | 150 | 240 | 360 | mm/dev | 0,120–0,200 | 0,120–0,200 | 0,144–0,280 | 0,160–0,320 | 0,200–0,400 |
| U | 100 | 160 | 240 | mm/dev | 0,120–0,200 | 0,120–0,200 | 0,144–0,280 | 0,160–0,320 | 0,200–0,400 | ||
| I | 60 | 100 | 160 | mm/dev | 0,120–0,200 | 0,120–0,200 | 0,144–0,280 | 0,160–0,320 | 0,200–0,400 | ||
| 2 | S | 150 | 220 | 360 | mm/dev | 0,120–0,200 | 0,120–0,200 | 0,144–0,280 | 0,160–0,320 | 0,200–0,400 | |
| U | 100 | 150 | 240 | mm/dev | 0,120–0,200 | 0,120–0,200 | 0,144–0,280 | 0,160–0,320 | 0,200–0,400 | ||
| I | 60 | 100 | 160 | mm/dev | 0,120–0,200 | 0,120–0,200 | 0,144–0,280 | 0,160–0,320 | 0,200–0,400 | ||
| 3 | S | 150 | 200 | 360 | mm/dev | 0,120–0,200 | 0,120–0,200 | 0,144–0,280 | 0,160–0,320 | 0,200–0,400 | |
| U | 100 | 140 | 240 | mm/dev | 0,120–0,200 | 0,120–0,200 | 0,144–0,280 | 0,160–0,320 | 0,200–0,400 | ||
| I | 60 | 90 | 160 | mm/dev | 0,120–0,200 | 0,120–0,200 | 0,144–0,280 | 0,160–0,320 | 0,200–0,400 | ||
| 4 | S | 150 | 200 | 360 | mm/dev | 0,120–0,200 | 0,120–0,200 | 0,144–0,280 | 0,160–0,320 | 0,200–0,400 | |
| U | 100 | 140 | 240 | mm/dev | 0,120–0,200 | 0,120–0,200 | 0,144–0,280 | 0,160–0,320 | 0,200–0,400 | ||
| I | 60 | 90 | 160 | mm/dev | 0,120–0,200 | 0,120–0,200 | 0,144–0,280 | 0,160–0,320 | 0,200–0,400 | ||
| 5 | S | 150 | 200 | 360 | mm/dev | 0,120–0,200 | 0,120–0,200 | 0,144–0,280 | 0,160–0,320 | 0,200–0,400 | |
| U | 100 | 140 | 240 | mm/dev | 0,120–0,200 | 0,120–0,200 | 0,144–0,280 | 0,160–0,320 | 0,200–0,400 | ||
| I | 60 | 90 | 160 | mm/dev | 0,120–0,200 | 0,120–0,200 | 0,144–0,280 | 0,160–0,320 | 0,200–0,400 | ||
| 6 | S | 150 | 200 | 360 | mm/dev | 0,120–0,200 | 0,120–0,200 | 0,144–0,280 | 0,160–0,320 | 0,200–0,400 | |
| U | 100 | 140 | 240 | mm/dev | 0,120–0,200 | 0,120–0,200 | 0,144–0,280 | 0,160–0,320 | 0,200–0,400 | ||
| I | 60 | 90 | 160 | mm/dev | 0,120–0,200 | 0,120–0,200 | 0,144–0,280 | 0,160–0,320 | 0,200–0,400 | ||
| 7 | S | 110 | 220 | 260 | mm/dev | 0,120–0,200 | 0,120–0,200 | 0,144–0,280 | 0,160–0,320 | 0,200–0,400 | |
| U | 70 | 140 | 170 | mm/dev | 0,120–0,200 | 0,120–0,200 | 0,144–0,280 | 0,160–0,320 | 0,200–0,400 | ||
| I | 45 | 90 | 110 | mm/dev | 0,120–0,200 | 0,120–0,200 | 0,144–0,280 | 0,160–0,320 | 0,200–0,400 | ||
| S | 1 | S | 25 | 50 | 75 | mm/dev | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 |
| U | 20 | 40 | 60 | mm/dev | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 | ||
| I | 15 | 30 | 50 | mm/dev | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 | ||
| 2 | S | 20 | 40 | 60 | mm/dev | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 | |
| U | 15 | 30 | 45 | mm/dev | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 | ||
| I | 12 | 25 | 35 | mm/dev | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 | ||
| 3 | S | 20 | 40 | 60 | mm/dev | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 | |
| U | 15 | 30 | 45 | mm/dev | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 | ||
| I | 12 | 25 | 40 | mm/dev | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 | ||
| 4 | S | 20 | 40 | 60 | mm/dev | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 | |
| U | 15 | 30 | 45 | mm/dev | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 | ||
| I | 12 | 25 | 40 | mm/dev | 0,130–0,250 | 0,130–0,250 | 0,160–0,280 | 0,160–0,320 | 0,200–0,360 | ||
