Select First Choice
-
DE (5)
-
GB (3)
-
US (4)
frontEnd
Front End Style
Front End Style
-
FDA22 Transv Drive & SHCS (6)
-
FDA42TranDrvw/CtrScrwORBoltCir (3)
Gage Length
Gage Length
-
2.3620 in (3)
-
3.9370 in (3)
-
6.2990 in (3)
Gage Length
Gage Length
-
60.0000 mm (3)
-
100.0000 mm (3)
-
160.0000 mm (3)
Front End Size
Front End Size
-
1.063 in (3)
-
1.2598 in (3)
-
1.5748 in (3)
to
Front End Size
Front End Size
-
27.0 mm (3)
-
32.0 mm (3)
-
40.0 mm (3)
to
No filters matching ""
Change the visible columns with any of the parameters listed below. A maximum of 7 columns can be displayed.
Displaying
1- 9
of 9 results
Metric
Inch
Show
Metric
Inch

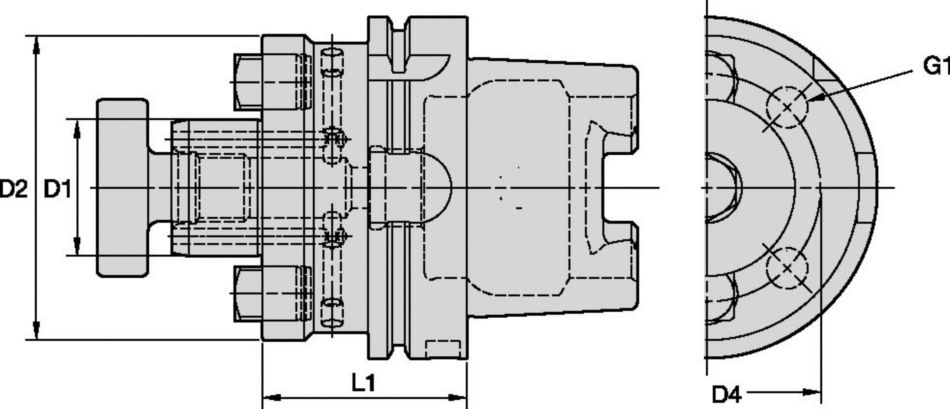

SAP Material Number | ISO Catalog Number | ANSI Catalog Number | First Choice | [D1] Adapter / Shank / Bore Diameter | [D1] Adapter / Shank / Bore Diameter | [D2] Body Diameter 1 Workpiece Side | [D2] Body Diameter 1 Workpiece Side | [D4] Bolt Circle 2 | [D4] Bolt Circle 1 | Bolt Circle Thread Size [G1] | [L1] Gage Length | [L1] Gage Length | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3872687 | HSK63ASMC27060M | HSK63ASMC27060M | 27.0000 | 1.063 | 60.0000 | 2.362 | 60.0000 | 2.362 |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
List price:
$352.50
/each.
Your price::
Qty
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
3872688 | HSK63ASMC27100M | HSK63ASMC27100M | 27.0000 | 1.063 | 60.0000 | 2.362 | 100.0000 | 3.937 | 10 mm |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
List price:
$374.27
/each.
Your price::
Qty
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
3872689 | HSK63ASMC27160M | HSK63ASMC27160M | 27.0000 | 1.063 | 60.0000 | 2.362 | 160.0000 | 6.299 | 10 mm |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
List price:
$394.67
/each.
Your price::
Qty
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
3872690 | HSK63ASMC32060M | HSK63ASMC32060M | 32.0000 | 1.259 | 78.0000 | 3.070 | 60.0000 | 2.362 | 14 mm |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
List price:
$352.50
/each.
Your price::
Qty
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
3872691 | HSK63ASMC32100M | HSK63ASMC32100M | 32.0000 | 1.259 | 78.0000 | 3.070 | 100.0000 | 3.937 | 14 mm |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
List price:
$374.27
/each.
Your price::
Qty
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
3872692 | HSK63ASMC32160M | HSK63ASMC32160M | 32.0000 | 1.259 | 78.0000 | 3.070 | 160.0000 | 6.299 | 14 mm |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
List price:
$394.67
/each.
Your price::
Qty
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
3872693 | HSK63ASMC40060M | HSK63ASMC40060M | 40.0000 | 1.574 | 89.3000 | 3.515 | 66.7000 | 2.626 | M12X1.75 | 60.0000 | 2.362 | 17 mm |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
List price:
$352.50
/each.
Your price::
Qty
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
3872694 | HSK63ASMC40100M | HSK63ASMC40100M | 40.0000 | 1.574 | 89.3000 | 3.515 | 66.7000 | 2.626 | M12X1.75 | 100.0000 | 3.937 | 17 mm |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
List price:
$374.27
/each.
Your price::
Qty
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
3872695 | HSK63ASMC40160M | HSK63ASMC40160M | 40.0000 | 1.574 | 89.3000 | 3.515 | 66.7000 | 2.626 | M12X1.75 | 160.0000 | 6.299 | 17 mm |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
List price:
$394.67
/each.
Your price::
Qty
|
