Серия K175 • Slim

Резцедержатели • Серия K175 Slim

Метрическая система
Дюймовая система
SAP Material Number 3062518
ISO Catalog Number K175S SLIMLINE IH BLOCK
ANSI Catalog Number K175S SLIMLINE IH BLOCK

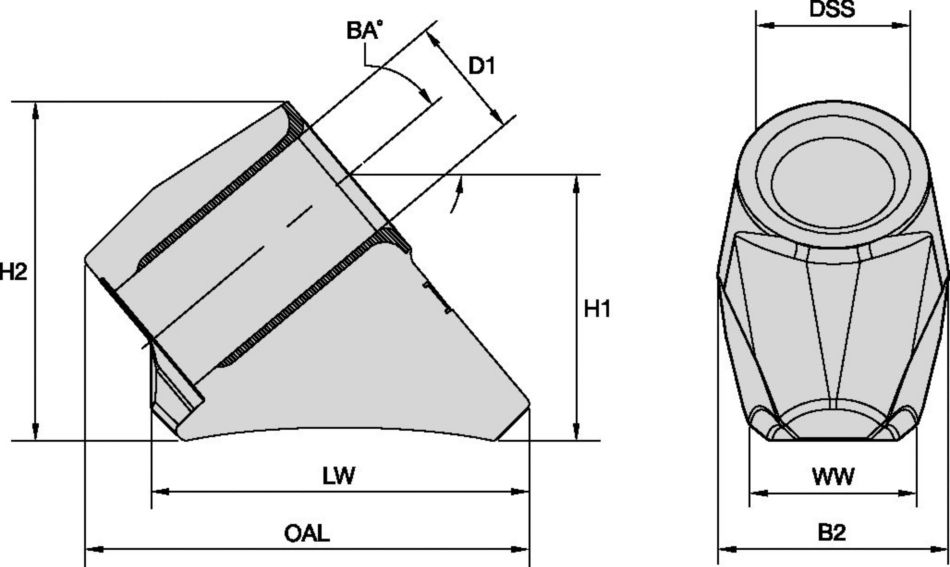

[DSS] Diameter Seating Surface 78.3 mm
[DSS] Diameter Seating Surface 3.08 in
[D1] Adapter / Shank / Bore Diameter 50.8 mm
[D1] Adapter / Shank / Bore Diameter 2 in
[H2] Overall Height 146 mm
[H2] Overall Height 5.75 in
[OAL] Overall Length 184 mm
[OAL] Overall Length 7.25 in
[B2] Overall Width 95.2 mm
[B2] Overall Width 3.75 in
[H1] Centerline Height 110 mm
[H1] Centerline Height 4.33 in
[LW] Weld Length 156.2 mm
[LW] Weld Length 6.15 in
[WW] Weld Width 74.2 mm
[WW] Weld Width 2.92 in
Block Angle [BA] 40
