| SAP Material Number | 5885009 |
| ISO Catalog Number | HSK125AWNA200600 |
| ANSI Catalog Number | HSK125AWNA200600 |

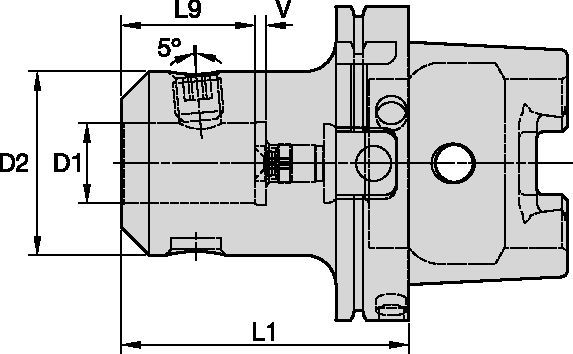

| [D1] Adapter / Shank / Bore Diameter | 50.8000 mm |
| [D1] Adapter / Shank / Bore Diameter | 2.000 in |
| [D2] Body Diameter 1 Workpiece Side | 101.6000 mm |
| [D2] Body Diameter 1 Workpiece Side | 4.000 in |
| [L1] Gage Length | 152.4000 mm |
| [L1] Gage Length | 6.000 in |
| [L9] Clamping Length | 75.0000 mm |
| [L9] Clamping Hole Length | 2.952 in |
| [V] Adjustment Range | 9.0000 mm |
| [V] Adjustment Range | .3543 in |
Shank - HSK DIN 69893 Form A
Shank - Cylindrical Whistle Notch 5°
Balanced-by-Design
Drilling - Through CoolantНомер по каталогу ISO
