35mm Series

Bushings • 35mm Series

Метрическая система
Дюймовая система
SAP Material Number 6715767
ISO Catalog Number 35 14JWP35S SR
ANSI Catalog Number 35 14JWP35S SR

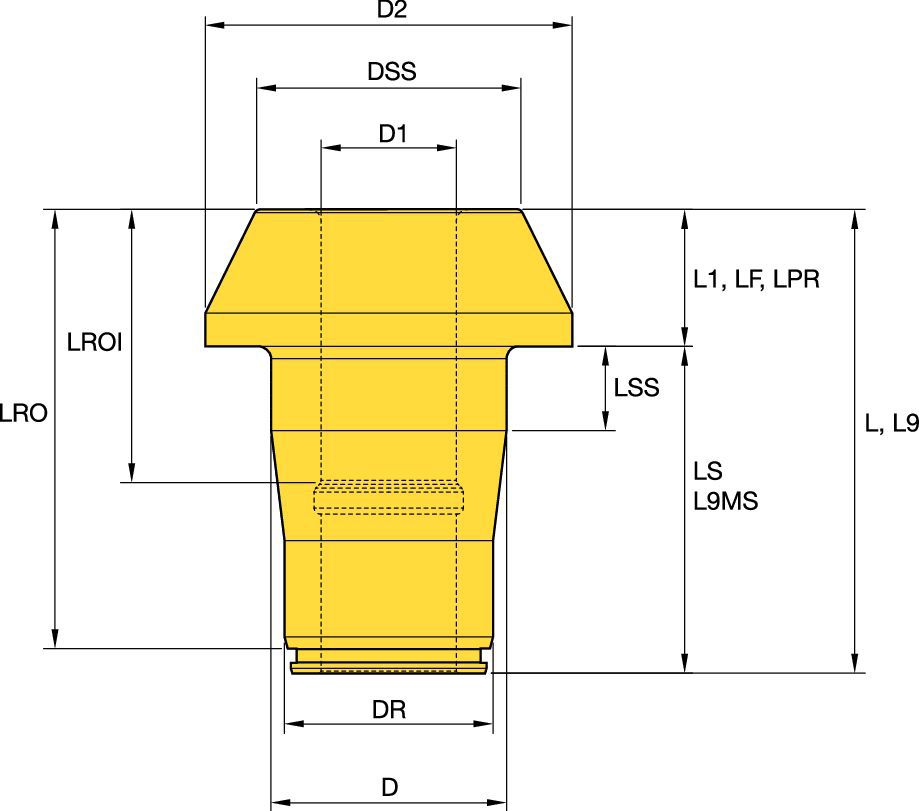

[D] Adapter / Shank / Bore Diameter 61.138 mm
[D] Adapter / Shank / Bore Diameter 2.407 in
[D1] Adapter / Shank / Bore Diameter 35.065 mm
[D1] Adapter / Shank / Bore Diameter 1.38 in
[D2] Body Diameter 1 Workpiece Side 91.948 mm
[D2] Body Diameter 1 Workpiece Side 3.62 in
[DSS] Diameter Seating Surface 68.58 mm
[DSS] Diameter Seating Surface 2.7 in
[L] Overall Length 114.3 mm
[L] Overall Length 4.5 in
[L1] Gage Length 1 35.052 mm
[L1] Gage Length 1 1.38 in
[L9] Clamping Length 114.3 mm
[L9] Clamping Length 4.5 in
[LS] Shank Length 79.248 mm
[LS] Shank Length 3.12 in
Посмотреть все варианты продукции

Использование и область применения

  • IH TreatmentIH Treatment
  • Pressed ContactPressed Contact

Со стороны станка


Со стороны заготовки
