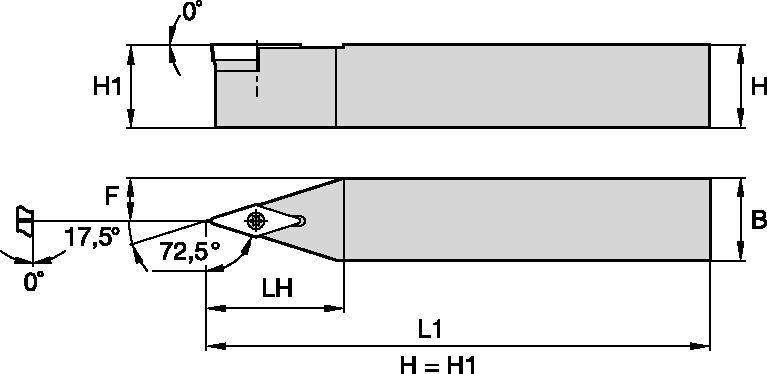

SVVB 72,5°

Пластины с креплением винтом

Метрическая система
Дюймовая система
SAP Material Number 1097990
ISO Catalog Number SVVBN1212N11
ANSI Catalog Number SVVBN1212N11
[H] Shank Height 12 mm
[H] Shank Height .4724 in
[B] Shank Width 12 mm
[B] Shank Width .4724 in
[F] F Dimension 6 mm
[F] F Dimension .2362 in
[L1] Tool Length 160 mm
[L1] Tool Length 6.299 in
[LH] Head Length 26 mm
[LH] Head Length 1.023 in
Gage Insert VB..110304
Insert Screw ID Drive Size T7
Посмотреть все варианты продукции

Использование и область применения

  • TurningTurning
  • ProfilingProfiling

Обрабатываемый материал

P Steel
M Stainless Steel
K Cast Iron
N Non-Ferrous
S High-Temp Alloys
H Hardened Materials
C CFRP Materials
