Rotating Tungsten Carbide Pick • 25mm (.99 in) Shank

External Retainer for Maximum Attachment • Cap Tip for a Variety of Conditions

Метрическая система
Дюймовая система
SAP Material Number 4065449
ISO Catalog Number T8 X
ANSI Catalog Number T8 X
Grade K3560

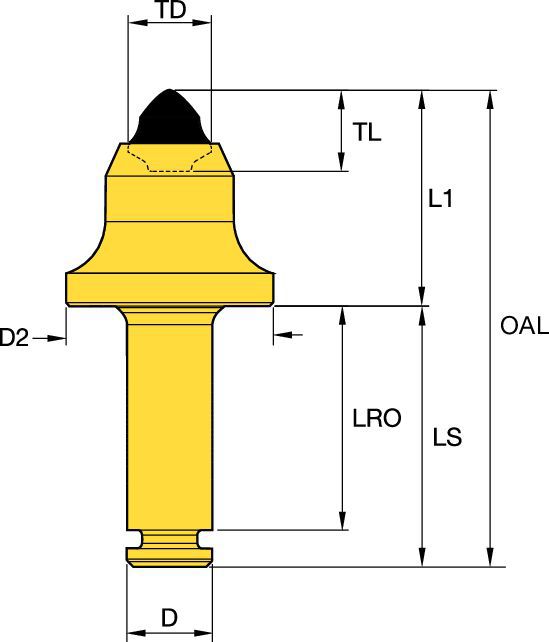

[TD] Tip Diameter 24.435 mm
[TD] Tip Diameter .962 in
[TL] Tip Length 23.864 mm
[TL] Tip Length .94 in
[L1] Gage Length 63.468 mm
[L1] Gage Length 2.498 in
[D2] Body Diameter Workpiece Side 60.96 mm
[D2] Body Diameter Workpiece Side 2.4 in
[D] Shank/Bore Diameter 25.146 mm
[D] Shank/Bore Diameter .99 in
[LRO] Retainer Offset Length 65.913 mm
[LRO] Retainer Offset Length 2.595 in
[LS] Shank Length 76.708 mm
[LS] Shank Length 3.02 in
[OAL] Overall Length 140.179 mm
[OAL] Overall Length 5.518 in
