TG Balanceable Round Locknuts
TG Balanceable Round Locknuts
TG Balanceable Round Locknuts
TG Balanceable Round Locknuts
Select the files you wish to request
Downloads
Request {{cadTool}} format
{{cadTool}} format is not available

TG Balanceable TG Locknuts

TG Balanceable Round Locknuts

Метрическая система
Дюймовая система
SAP Material Number 1020465
ISO Catalog Number HPVLNA050G
ANSI Catalog Number HPVLNA050G

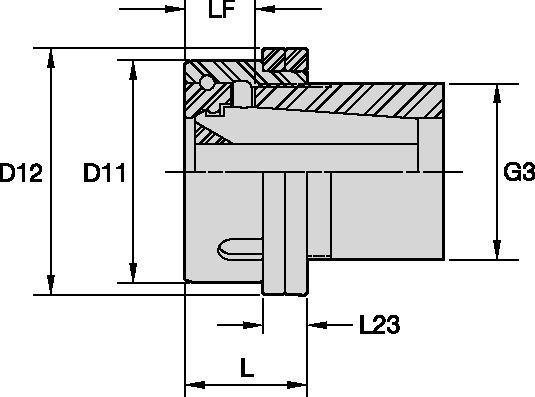

Lock Nut Diameter [D11] 38 mm
Lock Nut Diameter [D11] 1.496 in
HDW_BAL_RING_SET_OD_M 42.45 mm
HDW_BAL_RING_SET_OD_I 1.671 in
[L] Overall Length 20 mm
[L] Overall Length .787 in
HDW_BAL_RING_SET_AREA_LENGTH_M 10.05 mm
HDW_BAL_RING_SET_AREA_LENGTH_I .396 in
[LF] Functional Length 9.656 mm
[LF] Functional Length .38 in
[G3] Connection Thread Size Internal 15/16-20 UNEF
Wrench HSW34M
Torque Catalog Newton Meters 81
Torque Catalog Foot Pounds 60
Посмотреть все варианты продукции

Характеристики и преимущества

  • Balanceable and interchangeable locknuts can be ordered separately as an option to the original standard locknut supplied on collet chucks.
