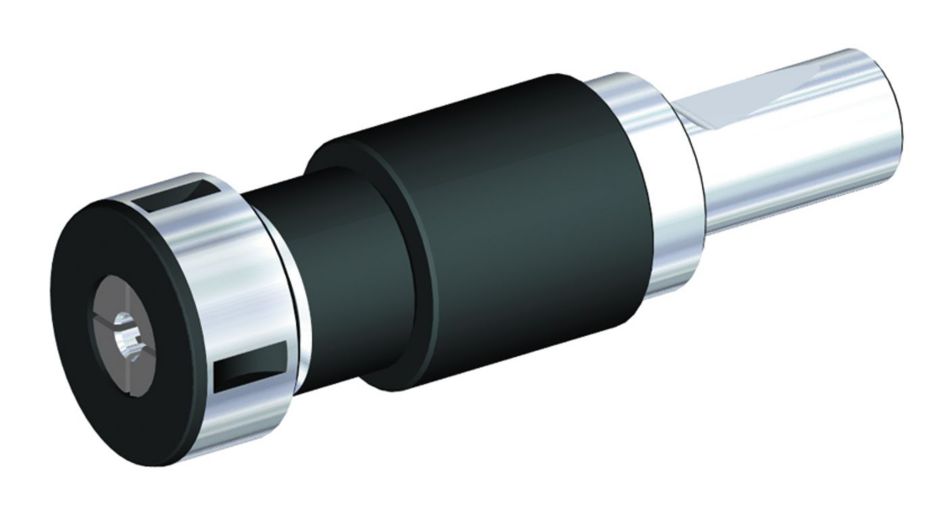

Цанговые патроны TG с осевой компенсацией
Цанговые патроны TG с осевой компенсацией
Цанговые патроны TG с осевой компенсацией
Цанговые патроны TG с осевой компенсацией
Цанговые патроны TG с осевой компенсацией
Цанговые патроны TG с осевой компенсацией
Select the files you wish to request
Downloads
Send to {{cadTool}}
Request {{cadTool}} format
{{cadTool}} format is not available

TG-SS

Цанговые патроны TG с осевой компенсацией

Метрическая система
Дюймовая система
SAP Material Number 1288221
ISO Catalog Number SS075TCTG050
ANSI Catalog Number SS075TCTG050

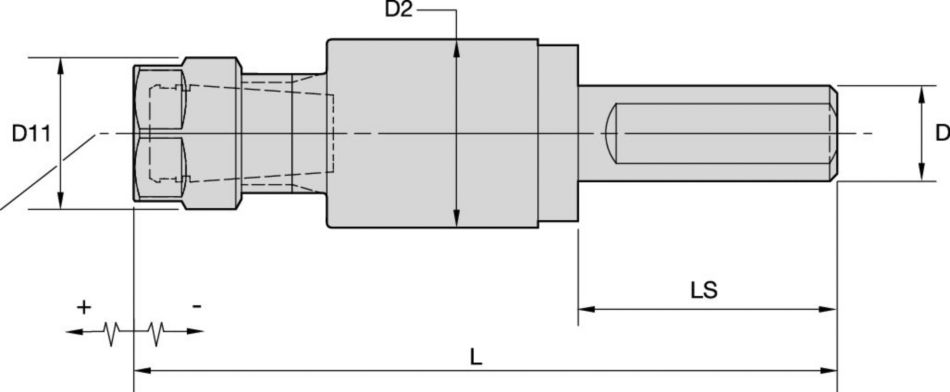

[CST] Catalog Collet Series TG50
[D11] Lock Nut Diameter 30.956 mm
[D11] Lock Nut Diameter 1.218 in
[D2] Body Diameter 1 Workpiece Side 37.465 mm
[D2] Body Diameter 1 Workpiece Side 1.475 in
[L] Overall Length 139.217 mm
[L] Overall Length 5.481 in
[LS] Shank Length 50.8 mm
[LS] Shank Length 2 in
[LTN] Slide Tension 6.35 mm
[LTN] Slide Tension .25 in
[LCM] Slide Compression 7.62 mm
[LCM] Slide Compression .3 in
Torque Catalog Foot Pounds 75
Weight Pounds 0.68
[D] Adapter / Shank / Bore Diameter 19.05 mm
[D] Adapter / Shank / Bore Diameter .75 in
Посмотреть все варианты продукции

Использование и область применения

  • Balanced-by-Design Balanced-by-Design
  • Compensation: Tension and CompressionCompensation: Tension and Compression
  • Drilling - Through CoolantDrilling - Through Coolant
  • Shank - Cylindrical PlainShank - Cylindrical Plain
  • Shank - Cylindrical WeldonShank - Cylindrical Weldon
  • Axial Adjustment - EndAxial Adjustment - End
  • Shank - Cylindrical with SquareShank - Cylindrical with Square

Характеристики и преимущества

  • Большая сила зажима (соотношение 3:1).

  • Антифрикционное устройство.

  • Компактная конструкция.

  • Регулировка нагрузки при запуске.
