Statyczne narzędzie osiowe • KM™ • TACU019KM50SA60945552

Mazak • Statyczne oprawki osiowe • KM • MMC 019

Metryczne
Calowe
SAP Material Number 6391679
ISO Catalog Number TACU019KM50SA60945552
ANSI Catalog Number TACU019KM50SA60945552

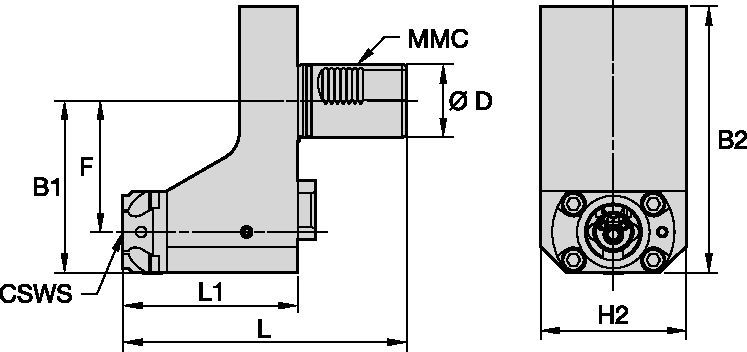

[CSWS] System Size Workpiece Side KM50
Machine Mount Code 019
[B1] Front Clearance 118 mm
[B1] Front Clearance 4.646 in
[B2] Overall Width 183 mm
[B2] Overall Width 7.205 in
[D] Adapter / Shank / Bore Diameter 50 mm
[D] Adapter / Shank / Bore Diameter 1.969 in
[F] F Dimension 90 mm
[F] F Dimension 3.543 in
[H2] Overall Height 100 mm
[H2] Overall Height 3.938 in
[L] Overall Length 195 mm
[L] Overall Length 7.677 in
[L1] Gage Length 120 mm
[L1] Gage Length 4.724 in
Coolant Pressure Bar 100
Coolant Pressure PSI 1500
Coolant Delivery I
Weight Kilograms 19.73
Torque Catalog Newton Meters 27-34
Torque Catalog Foot Pounds 20-25
Zobacz wszystkie warianty produktów

Zastosowania

  • Through Coolant: Axial: DrillingThrough Coolant: Axial: Drilling
  • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622
  • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622

Właściwości i zalety

Machine Series:

  • MP430 -12D

  • MP630 -12D

  • MP6300 -12D

  • MP6300Y -12D
