| SAP Material Number | 6405388 |
| ISO Catalog Number | TACU002KM50SR60649643 |
| ANSI Catalog Number | TACU002KM50SR60649643 |

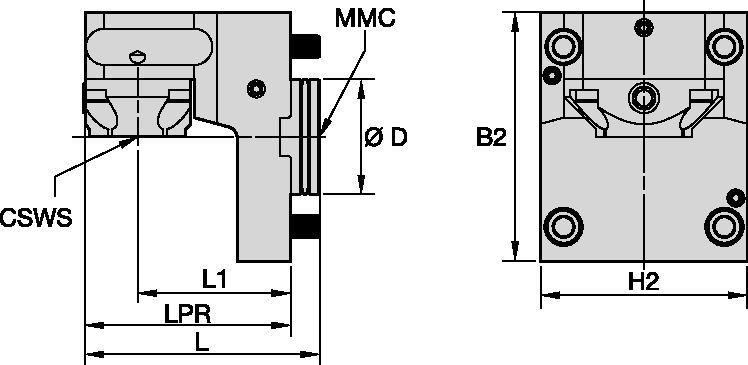

| [CSWS] System Size Workpiece Side | KM50 |
| Machine Mount Code | 002 |
| [B2] Overall Width | 130.0000 mm |
| [B2] Overall Width | 5.118 in |
| [D] Adapter / Shank / Bore Diameter | 60.0 mm |
| [D] Adapter / Shank / Bore Diameter | 2.362 in |
| [H2] Overall Height | 108.0000 mm |
| [H2] Overall Height | 4.252 in |
| [L] Overall Length | 122.5000 mm |
| [L] Overall Length | 4.823 in |
| [L1] Gage Length | 80.0000 mm |
| [L1] Gage Length | 3.150 in |
| [LPR] Protruding Length | 107.5000 mm |
| [LPR] Protruding Length | 4.232 in |
| Coolant Pressure Bar | 100.0 |
| Coolant Pressure PSI | 1500.0 |
| Coolant Delivery | I |
| Weight Kilograms | 5.70 |
| Torque Catalog Newton Meters | 27-34 |
| Torque Catalog Foot Pounds | 20-25 |
Through Coolant: Axial: Drilling
Shank - KM-TS ISO 26622
