Mazak • napędzane oprawki osiowe • KM • MMC 018
Mazak • napędzane oprawki osiowe • KM • MMC 018
Mazak • napędzane oprawki osiowe • KM • MMC 018
Mazak • napędzane oprawki osiowe • KM • MMC 018
Select the files you wish to request
Downloads SDS
Request {{cadTool}} format
{{cadTool}} format is not available

Sterowane narzędzie osiowe • KM™ • TACU018KM50DA60908166, TACU018KM50DA60908171

Mazak • napędzane oprawki osiowe • KM • MMC 018

Metryczne
Calowe
SAP Material Number 6391692
ISO Catalog Number TACU018KM50DA60908166
ANSI Catalog Number TACU018KM50DA60908166

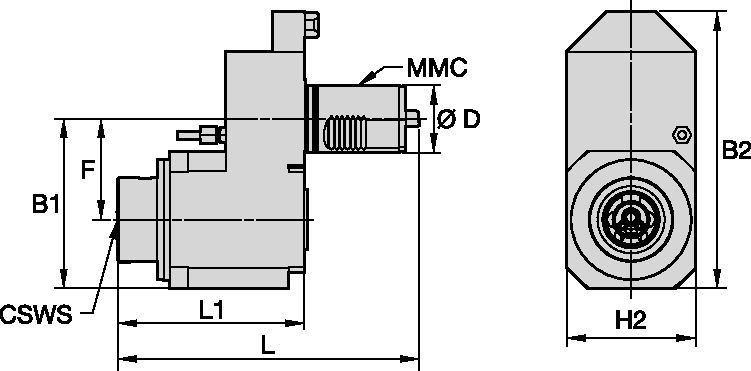

[CSWS] System Size Workpiece Side KM50
Machine Mount Code 018
[B1] Front Clearance 126 mm
[B1] Front Clearance 4.961 in
[B2] Overall Width 206 mm
[B2] Overall Width 8.11 in
[D] Adapter / Shank / Bore Diameter 50 mm
[D] Adapter / Shank / Bore Diameter 1.969 in
[F] F Dimension 75 mm
[F] F Dimension 2.953 in
[H2] Overall Height 96 mm
[H2] Overall Height 3.78 in
[L] Overall Length 225 mm
[L] Overall Length 8.858 in
[L1] Gage Length 139.5 mm
[L1] Gage Length 5.492 in
Torque Machine Spindle Nm 100
Coolant Pressure Bar 100
Coolant Pressure PSI 1500
Coolant Delivery E
[CS1] Coolant Supply Exit Size G 1/8
Max RPM 6000
Weight Kilograms 12.95
Torque Catalog Newton Meters 27-34
Torque Catalog Foot Pounds 20-25
Zobacz wszystkie warianty produktów

Właściwości i zalety

Machine Series:
  • Hyper Quadrex 450 M

  • Megaturn Nexus 900 M

  • Quick Turn Nexus 300-450 M, MY

  • Slant Turn Nexus 500, 550 M
