Sterowane narzędzie promieniowe • ER™ • TACU019ER40DR61301856

Mazak • napędzane oprawki promieniowe • ER • MMC 019

Metryczne
Calowe
SAP Material Number 6588986
ISO Catalog Number TACU019ER40DR61301856
ANSI Catalog Number TACU019ER40DR61301856

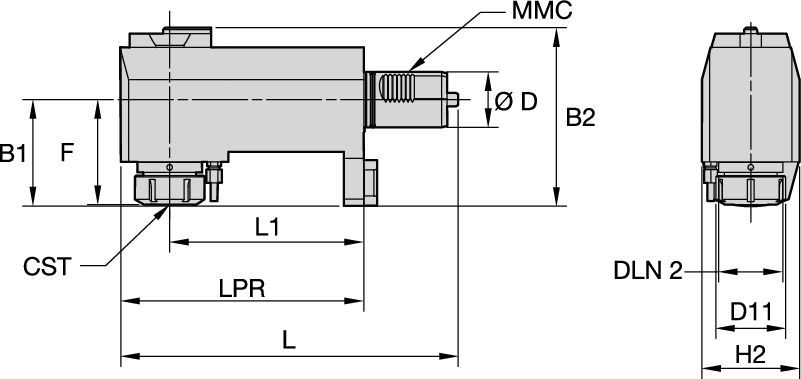

[CST] Catalog Collet Series ER40
Machine Mount Code 019
[B1] Front Clearance 96 mm
[B1] Front Clearance 3.779 in
[B2] Overall Width 161 mm
[B2] Overall Width 6.338 in
[D] Adapter / Shank / Bore Diameter 50 mm
[D] Adapter / Shank / Bore Diameter 1.968 in
[D11] Lock Nut Diameter 63 mm
[D11] Lock Nut Diameter 2.48 in
Lock Nut Diameter [DLN_2] 58 mm
HLD_LOCK_NUT_DIA_2_I 2.283 in
[F] F Dimension 94.5 mm
[F] F Dimension 3.72 in
[H2] Overall Height 88 mm
[H2] Overall Height 3.464 in
[L] Overall Length 304 mm
[L] Overall Length 11.968 in
[L1] Gage Length 175 mm
[L1] Gage Length 6.889 in
[LPR] Protruding Length 219 mm
[LPR] Protruding Length 8.622 in
Torque Machine Spindle Nm 100
Coolant Pressure Bar 70
Coolant Pressure PSI 1000
Coolant Delivery I/E
[CS1] Coolant Supply Exit Size G 1/8
Max RPM 4000
Weight Kilograms 16.94
Torque Newton Meters 176
Torque Foot Pounds 130
Zobacz wszystkie warianty produktów

Właściwości i zalety

Seria obrabiarki:

  • MP430 -12D

  • MP630 -12D

  • MP6300 -12D

  • MP6300Y -12D

  • MP650 -10D
