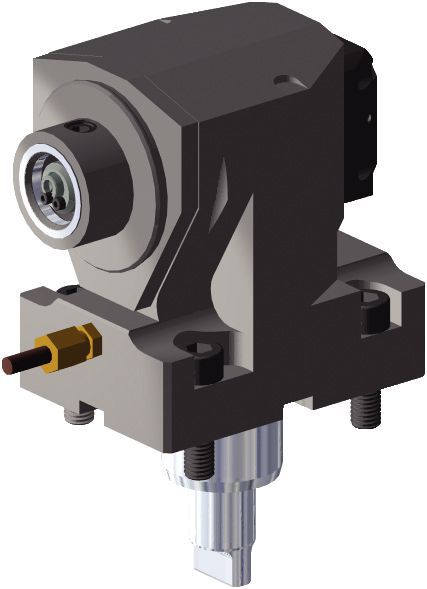

| SAP Material Number | 6201263 |
| ISO Catalog Number | TACU001KM32DR60648443 |
| ANSI Catalog Number | TACU001KM32DR60648443 |
| [CSWS] System Size Workpiece Side | KM32 |
| Machine Mount Code | 001 |
| [B2] Overall Width | 127.5000 mm |
| [B2] Overall Width | 5.019 in |
| [D] Adapter / Shank / Bore Diameter | 40.0 mm |
| [D] Adapter / Shank / Bore Diameter | 1.574 in |
| [F] F Dimension | 72.5000 mm |
| [F] F Dimension | 2.854 in |
| [H2] Overall Height | 78.0000 mm |
| [H2] Overall Height | 3.070 in |
| [L] Overall Length | 190.0000 mm |
| [L] Overall Length | 7.480 in |
| [L1] Gage Length | 85.0000 mm |
| [L1] Gage Length | 3.346 in |
| [LPR] Protruding Length | 121.0000 mm |
| [LPR] Protruding Length | 4.763 in |
| Torque Machine Spindle Nm | 32.000 |
| Coolant Pressure Bar | 100.0 |
| Coolant Pressure PSI | 1500.0 |
| Coolant Delivery | E |
| [CS1] Coolant Supply Exit Size | G 1/8 |
| Max RPM | 12000 |
| Weight Kilograms | 6.79 |
| Torque Catalog Newton Meters | 8-11 |
| Torque Catalog Foot Pounds | 6-8 |
