Fresamento de canto tangencial

  • Mill 4-12KT requer até 15% menos potência, o que permite maiores taxas de avanço, mesmo em máquinas pequenas.
  • O projeto patenteado de inserto, com uma margem em forma triangular, oferece estabilidade sem precedentes em aplicações de aço e ferro fundido.
  • Excelente acabamento superficial devido a batimento axial mínimo.
  • Com 7 classes, 7 raios de canto e profundidade de corte de até 0,472 " (12 mm), o programa oferece versatilidade para cobrir muitas aplicações de fresamento de canto.

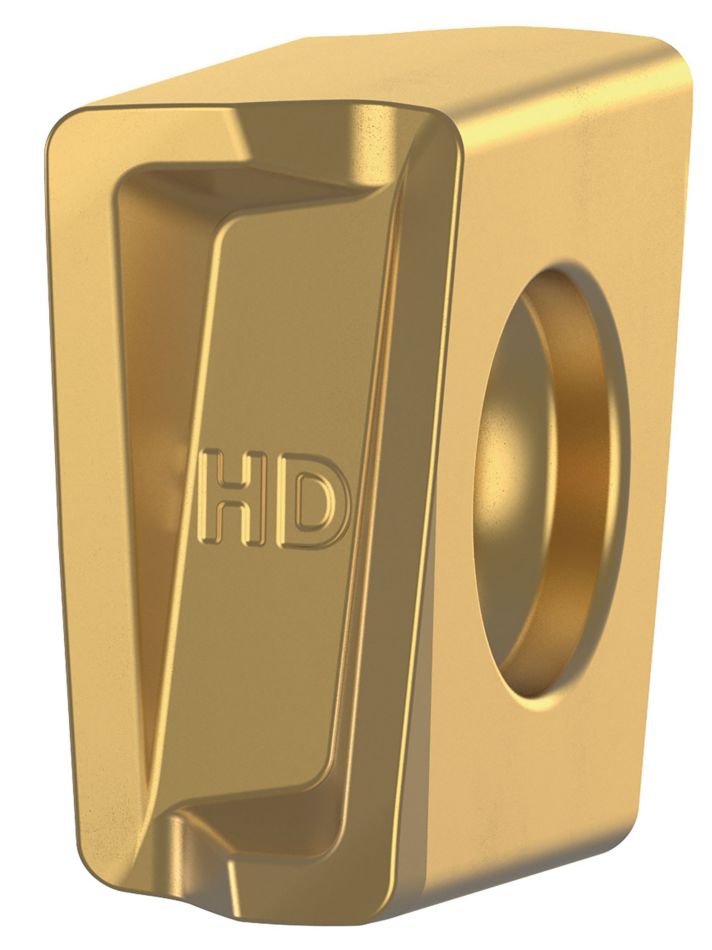

Insertos esquerdos para Fresas 4-12KT.

Para máxima estabilidade e precisão em soluções customizadas de fresas de abrir canais.

Soluções customizadas de fresas de abrir canais mediante solicitação.

Solicite mais informações

Exibir Mill 4-12KT em ação!

Desafio:

Melhore o custo por peça (CPP) aumentando a produtividade
ao aplicar em fresamento de desbaste sem refrigeração até o acabamento.

Leia a história completa!

Montagem radial

Requer alojamentos grandes, reduz o tamanho do núcleo da fresa.
Permite corpos de fresa com diâmetro muito pequeno.
O acesso ao parafuso do inserto pode ser difícil.

Montagem tangencial

Um alojamento raso permite um tamanho de núcleo grande para a fresa.
Aresta de corte muito resistente.
Fácil acesso ao parafuso do inserto.

Mill 4-12 tool schema
Select Filters
Filters
Filters
View filters in
Metric
Mais contatos
keyFilters
Workpiece Material
  • P Steel (80)
    • P0
      Low-Carbon Steels, Long Chipping C < .25%; <125 HB; <530 N/mm^2 UTS
      (68)
    • P1
      Low-Carbon Steels, Short Chipping C < .25%; <125 HB; <530 N/mm^2 UTS
      (68)
    • P2
      Medium and High Carbon Steels C < .25%; <220 HB; <25 HRC; >530 N/mm^2 UTS
      (68)
    • P3
      Alloy Steels & Tool Steels C > .25%; <330 HB; <35 HRC; 600-850 N/mm^2 UTS
      (68)
    • P4
      Alloy Steels & Tool Steels C > .25%; 350-420 HB; 35-43 HRC; 850-1400 N/mm^2 UTS
      (68)
    • P5
      Ferritic, Martensitic, and PH Stainless Steels <330 HB; <35 HRC; 600-900 N/mm^2 UTS
      (80)
    • P6
      High Strength Ferritic, Martensitic, and PH Stainless Steels 350-450 HB; 35-43 HRC; 900-2400 N/mm^2 UTS
      (80)
  • M Stainless Steel (80)
    • M1
      Austenitic Stainless Steel 130-200 HB; <600 N/mm^2 UTS
      (80)
    • M2
      High Strength Austenitic Stainless and Cast Stainless Steels 150-230 HB; <25 HRC; >600 N/mm^2 UTS
      (80)
    • M3
      Duplex Stainless Steel 135-275 HB; <30 HRC; 500-1200 N/mm^2 UTS
      (80)
  • K Cast Iron (70)
    • K1
      Gray Cast Iron 120-290 HB; <32 HRC; 125-500 N/mm^2 UTS
      (70)
    • K2
      Low and Medium Strength CGI and Ductile Irons 130-260 HB; <28 HRC; <600 N/mm^2 UTS
      (70)
    • K3
      High Strength Ductile and Austempered Ductile Iron 180-350 HB; <43 HRC; >600 N/mm^2 UTS
      (70)
  • S High-Temp Alloys (80)
    • S1
      Iron-Based, Heat-Resistant Alloys 160-260 HB; 25-48 HRC; 500-1200 N/mm^2 UTS
      (68)
    • S2
      Cobalt-Based, Heat-Resistant Alloys 250-450 HB; 25-48 HRC; 1000-1450 N/mm^2 UTS
      (68)
    • S3
      Nickel-Based, Heat Resistant Alloys 160-450 HB; <48 HRC; 600-1700 N/mm^2 UTS
      (68)
    • S4
      Titanium and Titanium Alloys 300-400 HB; 33-43 HRC; 900-1600 N/mm^2 UTS
      (80)
  • H Hardened Materials (38)
    • H1
      Hardened Materials 44-48 HRC
      (38)
Applications
  • Face Milling Face Milling (28)
  • ID Thread Turning ID Thread Turning (36)
  • Shoulder Milling Shoulder Milling (28)
  • Shoulder Roughing Shoulder Roughing (28)
Cutting Diameter
  • 50.0 (2)
  • 50.8 (2)
  • 63.0 (2)
  • 63.5 (2)
  • 76.2 (2)
  • 80.0 (2)
  • 100.0 (2)
  • 101.6 (2)
  • 125.0 (2)
  • 127.0 (2)
  • 152.4 (2)
  • 160.0 (2)
  • 200.0 (2)
  • 203.2 (2)
to
Cutting Diameter
  • 1.9685 (2)
  • 2.0 (2)
  • 2.4803 (2)
  • 2.5 (2)
  • 3.0 (2)
  • 3.1496 (2)
  • 3.937 (2)
  • 4.0 (2)
  • 4.9213 (2)
  • 5.0 (2)
  • 6.0 (2)
  • 6.2992 (2)
  • 7.874 (2)
  • 8.0 (2)
to
Cutting Length
  • 0.4777 (4)
  • 0.4781 (18)
  • 0.4782 (6)
to
Cutting Length
  • 12.135 (4)
  • 12.143 (4)
  • 12.144 (12)
  • 12.145 (4)
  • 12.146 (4)
to
Tool Cutting Edge Angle
  • 90.0 (28)
to
Connection Style
  • A-Socket Head Cap Screw (22)
  • C-Bolt Circle (6)
Cutting Edges Per Insert
  • 4.0 (100)
to
Internal Coolant Capability
cornerConfiguration
Corner Radius
  • 0.397 (36)
  • 0.794 (42)
  • 1.191 (40)
  • 1.558 (42)
  • 1.984 (40)
  • 2.381 (34)
  • 3.175 (34)
to
Corner Radius
  • 0.0156 (36)
  • 0.0312 (42)
  • 0.0469 (40)
  • 0.0625 (42)
  • 0.0781 (40)
  • 0.0938 (34)
  • 0.125 (34)
to
application
Grade Of Cutting Tool
  • KC522M (38)
  • KC725M (32)
  • KCK15 (38)
  • KCK20 (38)
  • KCK20B (28)
  • KCPK30 (40)
  • KCPM40 (42)
  • KCSM40 (40)
Hand Of Tool
  • R (28)
Wiper Insert
  • N (72)
Maximum Ramp Angle
  • 0.008 (4)
  • 0.01 (2)
  • 0.011 (2)
  • 0.013 (4)
  • 0.016 (4)
  • 0.02 (2)
  • 0.021 (2)
  • 0.026 (4)
  • 0.041 (2)
  • 0.042 (2)
to
frontEnd
Insert Shape
  • L-RECTANGLE ON EDGE 90 (100)
Center Cutting
insertGeometry
Shape
  • L-RECTANGLE ON EDGE 90 (72)
Cutting Tool Material
  • H W (72)
Chip Breaker CBMD
  • GE (72)
Tolerance Class
  • G (72)
backEnd
Connection Type
  • SHELL MILL (28)
Back-End Diameter
  • 0.75 (2)
  • 0.8666 (4)
  • 1.0 (4)
  • 1.0634 (2)
  • 1.25 (2)
  • 1.26 (1)
  • 1.2603 (1)
  • 1.5 (2)
  • 1.575 (3)
  • 1.5753 (1)
  • 2.0 (2)
  • 2.36 (1)
  • 2.363 (1)
  • 2.5 (2)
to
Back-End Diameter
  • 19.05 (2)
  • 22.0 (4)
  • 25.4 (4)
  • 27.0 (2)
  • 31.75 (2)
  • 32.0 (2)
  • 38.1 (2)
  • 40.0 (4)
  • 50.8 (2)
  • 60.0 (2)
  • 63.5 (2)
to
other
Grade
  • KC522M (10)
  • KC725M (4)
  • KCK15 (10)
  • KCK20 (10)
  • KCPK30 (12)
  • KCPM40 (14)
  • KCSM40 (12)
Platform
  • Mill 4-12KT (100)
Tool Unit
  • I (86)
  • M (86)
Over All Length [L]
  • 38.1 (2)
  • 40.0 (4)
  • 44.45 (4)
  • 50.0 (4)
  • 50.8 (2)
  • 60.325 (6)
  • 63.0 (6)
to
Over All Length [L]
  • 1.5 (2)
  • 1.5748 (4)
  • 1.75 (4)
  • 1.9685 (4)
  • 2.0 (2)
  • 2.375 (6)
  • 2.4803 (6)
to
Insert Hand
  • L (36)
  • R (36)
obsoleteFacet
  • false (100)
  • true (100)
Number of Inserts
  • 4.0 (2)
  • 5.0 (4)
  • 6.0 (2)
  • 7.0 (2)
  • 8.0 (2)
  • 9.0 (2)
  • 11.0 (4)
  • 12.0 (2)
  • 14.0 (2)
  • 16.0 (4)
  • 22.0 (2)
to
No filters matching ""
View Products in
Metric
Mais contatos
Fresamento de canto

Mill 4™-12KT • Passo largo • Fresa tipo árvore
(7 Products)
  • Fresamento de faceFresamento de face
  • Fresamento —   Lateral e de faceFresamento — Lateral e de face
  • Fresamento —   Refrigeração internaFresamento — Refrigeração interna
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number [D1] Effective Cutting Diameter [D1] Effective Cutting Diameter [D] Adapter / Shank / Bore Diameter [D] Adapter / Shank / Bore Diameter [D4] Bolt Circle 4 [D4] Bolt Circle 3 [D6] Hub Diameter [D6] Hub Diameter [L] Overall Length [L] Overall Length [AP1MAX] 1st Maximum Cutting Depth [AP1MAX] 1st Maximum Cutting Depth Number of Inserts Weight Kilograms Max RPM
6524753 KT4D050Z04S22LN12 KT4D050Z04S22LN12 50.0000 1.968 22.0 .8666     42.0000 1.653 40.0000 1.574 12.1350 .4777 4 0.29 26000
    List price:
    $439.35 /each.
    Your price::
    Qty
    6524755 KT4D063Z05S22LN12 KT4D063Z05S22LN12 63.0000 2.480 22.0 .8666     50.0000 1.968 40.0000 1.574 12.1460 .4782 5 0.50 22100
      List price:
      $590.85 /each.
      Your price::
      Qty
      6524757 KT4D080Z07S27LN12 KT4D080Z07S27LN12 80.0000 3.149 27.0 1.063     60.0000 2.362 50.0000 1.968 12.1450 .4781 7 1.03 19000
        List price:
        $666.6 /each.
        Your price::
        Qty
        6524759 KT4D100Z09S32LN12 KT4D100Z09S32LN12 100.0000 3.937 32.0 1.26     80.0000 3.149 50.0000 1.968 12.1440 .4781 9 1.51 16600
          List price:
          $818.1 /each.
          Your price::
          Qty
          6524761 KT4D125Z11S40LN12 KT4D125Z11S40LN12 125.0000 4.921 40.0 1.575     96.8380 3.812 63.0000 2.480 12.1440 .4781 11 2.81 14600
            List price:
            $969.6 /each.
            Your price::
            Qty
            6524763 KT4D160Z12S40LN12 KT4D160Z12S40LN12 160.0000 6.299 40.0 1.575 66.7000 2.626 90.0000 3.543 63.0000 2.480 12.1440 .4781 12 3.25 12700
              List price:
              $1287.75 /each.
              Your price::
              Qty
              List price:
              Discount: %
              Your price::
              Replacement This item is not available
              Replacement Product This item may be available through a distributor
              Qty
              Fresamento de canto

              Mill 4™-12KT • Passo médio • Fresa tipo árvore
              (7 Products)
              • Fresamento de faceFresamento de face
              • Fresamento —   Lateral e de faceFresamento — Lateral e de face
              • Fresamento —   Refrigeração internaFresamento — Refrigeração interna
              View Products
              SAP Material Number ISO Catalog Number ANSI Catalog Number [D1] Effective Cutting Diameter [D1] Effective Cutting Diameter [D] Adapter / Shank / Bore Diameter [D] Adapter / Shank / Bore Diameter [D4] Bolt Circle 4 [D4] Bolt Circle 3 [D6] Hub Diameter [D6] Hub Diameter [L] Overall Length [L] Overall Length [AP1MAX] 1st Maximum Cutting Depth [AP1MAX] 1st Maximum Cutting Depth Number of Inserts Weight Kilograms Max RPM
              6524769 KT4D050Z05S22LN12 KT4D050Z05S22LN12 50.0000 1.968 22.0 .8666     42.0000 1.653 40.0000 1.574 12.1350 .4777 5 0.30 26000
                List price:
                $515.1 /each.
                Your price::
                Qty
                6524770 KT4D063Z06S22LN12 KT4D063Z06S22LN12 63.0000 2.480 22.0 .8666     50.0000 1.968 40.0000 1.574 12.1460 .4782 6 0.51 22100
                  List price:
                  $666.6 /each.
                  Your price::
                  Qty
                  6524771 KT4D080Z08S27LN12 KT4D080Z08S27LN12 80.0000 3.149 27.0 1.063     60.0000 2.362 50.0000 1.968 12.1450 .4781 8 1.05 19000
                    List price:
                    $742.35 /each.
                    Your price::
                    Qty
                    6524772 KT4D100Z11S32LN12 KT4D100Z11S32LN12 100.0000 3.937 32.0 1.260     80.0000 3.149 50.0000 1.968 12.1440 .4781 11 1.55 16600
                      List price:
                      $969.6 /each.
                      Your price::
                      Qty
                      6524773 KT4D125Z14S40LN12 KT4D125Z14S40LN12 125.0000 4.921 40.0 1.575     96.8380 3.812 63.0000 2.480 12.1440 .4781 14 2.86 14600
                        List price:
                        $1272.6 /each.
                        Your price::
                        Qty
                        6524774 KT4D160Z16S40LN12 KT4D160Z16S40LN12 160.0000 6.299 40.0 1.575 66.7000 2.626 90.0000 3.543 63.0000 2.480 12.1440 .4781 16 3.31 12700
                          List price:
                          $1742.25 /each.
                          Your price::
                          Qty
                          List price:
                          Discount: %
                          Your price::
                          Replacement This item is not available
                          Replacement Product This item may be available through a distributor
                          Qty
                          Shoulder Milling

                          Mill 4™-12KT • Coarse Pitch • Shell Mill
                          (7 Products)
                          • Fresamento de faceFresamento de face
                          • Fresamento —   Lateral e de faceFresamento — Lateral e de face
                          • Fresamento —   Refrigeração internaFresamento — Refrigeração interna
                          View Products
                          SAP Material Number ISO Catalog Number ANSI Catalog Number [D1] Effective Cutting Diameter [D1] Effective Cutting Diameter [D] Adapter / Shank / Bore Diameter [D] Adapter / Shank / Bore Diameter [D6] Hub Diameter [D6] Hub Diameter [L] Overall Length [L] Overall Length [AP1MAX] 1st Maximum Cutting Depth [AP1MAX] 1st Maximum Cutting Depth Number of Inserts Weight Pounds Max RPM
                          6524718 KT4D200Z04S075LN12L150 KT4D200Z04S075LN12L150 50.8000 2.000 19.05 .75 44.4500 1.750 38.1000 1.500 12.1350 .4777 4 0.71 25700
                            List price:
                            $439.35 /each.
                            Your price::
                            Qty
                            6524719 KT4D250Z05S100LN12L175 KT4D250Z05S100LN12L175 63.5000 2.500 25.4 1.0 55.5620 2.187 44.4500 1.750 12.1460 .4782 5 1.35 22000
                              List price:
                              $590.85 /each.
                              Your price::
                              Qty
                              6524720 KT4D300Z07S100LN12L175 KT4D300Z07S100LN12L175 76.2000 3.000 25.4 1.0 55.5620 2.187 44.4500 1.750 12.1450 .4782 7 1.87 19600
                                List price:
                                $666.6 /each.
                                Your price::
                                Qty
                                6524731 KT4D400Z09S125LN12L200 KT4D400Z09S125LN12L200 101.6000 4.000 31.75 1.25 73.0250 2.875 50.8000 2.000 12.1440 .4781 9 3.23 16500
                                  List price:
                                  $818.1 /each.
                                  Your price::
                                  Qty
                                  6524732 KT4D500Z11S150LN12L238 KT4D500Z11S150LN12L238 127.0000 5.000 38.1 1.5 96.8380 3.812 60.3250 2.375 12.1440 .4781 11 5.80 14500
                                    List price:
                                    $969.6 /each.
                                    Your price::
                                    Qty
                                    6524733 KT4D600Z12S200LN12L238 KT4D600Z12S200LN12L238 152.4000 6.000 50.8 2.0 123.8250 4.875 60.3250 2.375 12.1440 .4781 12 9.25 13000
                                      List price:
                                      $1287.75 /each.
                                      Your price::
                                      Qty
                                      List price:
                                      Discount: %
                                      Your price::
                                      Replacement This item is not available
                                      Replacement Product This item may be available through a distributor
                                      Qty
                                      Shoulder Milling

                                      Mill 4™-12KT • Medium Pitch • Shell Mill
                                      (7 Products)
                                      • Fresamento de faceFresamento de face
                                      • Fresamento —   Lateral e de faceFresamento — Lateral e de face
                                      • Fresamento —   Refrigeração internaFresamento — Refrigeração interna
                                      View Products
                                      SAP Material Number ISO Catalog Number ANSI Catalog Number [D1] Effective Cutting Diameter [D1] Effective Cutting Diameter [D] Adapter / Shank / Bore Diameter [D] Adapter / Shank / Bore Diameter [D6] Hub Diameter [D6] Hub Diameter [L] Overall Length [L] Overall Length [AP1MAX] 1st Maximum Cutting Depth [AP1MAX] 1st Maximum Cutting Depth Number of Inserts Weight Pounds Max RPM
                                      6524735 KT4D200Z05S075LN12L150 KT4D200Z05S075LN12L150 50.8000 2.000 19.05 .75 44.4500 1.750 38.1000 1.500 12.1350 .4777 5 0.74 25700
                                        List price:
                                        $515.1 /each.
                                        Your price::
                                        Qty
                                        6524736 KT4D250Z06S100LN12L175 KT4D250Z06S100LN12L175 63.5000 2.500 25.4 1.0 55.5620 2.187 44.4500 1.750 12.1460 .4782 6 1.38 22000
                                          List price:
                                          $666.6 /each.
                                          Your price::
                                          Qty
                                          6524737 KT4D300Z08S100LN12L175 KT4D300Z08S100LN12L175 76.2000 3.000 25.4 1.0 55.5620 2.187 44.4500 1.750 12.1450 .4782 8 1.91 19600
                                            List price:
                                            $742.35 /each.
                                            Your price::
                                            Qty
                                            6524738 KT4D400Z11S125LN12L200 KT4D400Z11S125LN12L200 101.6000 4.000 31.75 1.25 73.0250 2.875 50.8000 2.000 12.1440 .4781 11 3.32 16500
                                              List price:
                                              $969.6 /each.
                                              Your price::
                                              Qty
                                              6524739 KT4D500Z14S150LN12L238 KT4D500Z14S150LN12L238 127.0000 5.000 38.1 1.5 96.8380 3.812 60.3250 2.375 12.1440 .4781 14 5.92 14500
                                                List price:
                                                $1272.6 /each.
                                                Your price::
                                                Qty
                                                6524740 KT4D600Z16S200LN12L238 KT4D600Z16S200LN12L238 152.4000 6.000 50.8 2.0 123.8250 4.875 60.3250 2.375 12.1440 .4781 16 9.41 13000
                                                  List price:
                                                  $1742.25 /each.
                                                  Your price::
                                                  Qty
                                                  List price:
                                                  Discount: %
                                                  Your price::
                                                  Replacement This item is not available
                                                  Replacement Product This item may be available through a distributor
                                                  Qty
                                                  Slotting Mills

                                                  Mill 4™-12KT • LNGQ12-KT4 • IC12 • Left Handed Inserts
                                                  (36 Products)
                                                  View Products
                                                  SAP Material Number ISO Catalog Number ANSI Catalog Number Grade [LI] Insert Length [LI] Insert Length [S] Insert Thickness [S] Insert Thickness [W] Insert Width [W] Insert Width [Rε] Corner Radius [Rε] Corner Radius Cutting Edges per Insert
                                                  6723709 LNGQ120604ELGEKT4 LNGQ120604ELGEKT4 KC522M 13.0000 .5118 6.3500 .2500 13.5040 .5316 0.3970 .0156 4
                                                    List price:
                                                    $311.0 /pkg. (pkg. of 10)
                                                    Your price::
                                                    Qty
                                                    6723710 LNGQ120604ELGEKT4 LNGQ120604ELGEKT4 KCK15 13.0000 .5118 6.3500 .2500 13.5040 .5316 0.3970 .0156 4
                                                      List price:
                                                      $317.0 /pkg. (pkg. of 10)
                                                      Your price::
                                                      Qty
                                                      6723721 LNGQ120604ELGEKT4 LNGQ120604ELGEKT4 KCK20 13.0000 .5118 6.3500 .2500 13.5040 .5316 0.3970 .0156 4
                                                        List price:
                                                        $311.0 /pkg. (pkg. of 10)
                                                        Your price::
                                                        Qty
                                                        6723722 LNGQ120604ELGEKT4 LNGQ120604ELGEKT4 KCPM40 13.0000 .5118 6.3500 .2500 13.5040 .5316 0.3970 .0156 4
                                                          List price:
                                                          $311.0 /pkg. (pkg. of 10)
                                                          Your price::
                                                          Qty
                                                          6723724 LNGQ120608ELGEKT4 LNGQ120608ELGEKT4 KCK15 13.0000 .5118 6.3500 .2500 13.3850 .5270 0.7940 .0312 4
                                                            List price:
                                                            $317.0 /pkg. (pkg. of 10)
                                                            Your price::
                                                            Qty
                                                            6723725 LNGQ120608ELGEKT4 LNGQ120608ELGEKT4 KCK20 13.0000 .5118 6.3500 .2500 13.3850 .5270 0.7940 .0312 4
                                                              List price:
                                                              $311.0 /pkg. (pkg. of 10)
                                                              Your price::
                                                              Qty
                                                              List price:
                                                              Discount: %
                                                              Your price::
                                                              Replacement This item is not available
                                                              Replacement Product This item may be available through a distributor
                                                              Qty
                                                              View Products
                                                              SAP Material Number ISO Catalog Number ANSI Catalog Number Grade [LI] Insert Length [LI] Insert Length [S] Insert Thickness [S] Insert Thickness [W] Insert Width [W] Insert Width [Rε] Corner Radius [Rε] Corner Radius Cutting Edges per Insert
                                                              6525559 LNGQ120604ERGEKT4 LNGQ120604ERGEKT4 KCK15 13.0000 .5118 6.3500 .2500 13.5040 .5316 0.3970 .0156 4
                                                                List price:
                                                                $158.40 /pkg. (pkg. of 5)
                                                                Your price::
                                                                Qty
                                                                6525691 LNGQ120604ERGEKT4 LNGQ120604ERGEKT4 KCPM40 13.0000 .5118 6.3500 .2500 13.5040 .5316 0.3970 .0156 4
                                                                  List price:
                                                                  $155.30 /pkg. (pkg. of 5)
                                                                  Your price::
                                                                  Qty
                                                                  6525560 LNGQ120604ERGEKT4 LNGQ120604ERGEKT4 KCK20 13.0000 .5118 6.3500 .2500 13.5040 .5316 0.3970 .0156 4
                                                                    List price:
                                                                    $155.30 /pkg. (pkg. of 5)
                                                                    Your price::
                                                                    Qty
                                                                    6525558 LNGQ120604ERGEKT4 LNGQ120604ERGEKT4 KC522M 13.0000 .5118 6.3500 .2500 13.5040 .5316 0.3970 .0156 4
                                                                      List price:
                                                                      $155.30 /pkg. (pkg. of 5)
                                                                      Your price::
                                                                      Qty
                                                                      6525751 LNGQ120608ERGEKT4 LNGQ120608ERGEKT4 KCK15 13.0000 .5118 6.3500 .2500 13.3850 .5270 0.7940 .0312 4
                                                                        List price:
                                                                        $158.40 /pkg. (pkg. of 5)
                                                                        Your price::
                                                                        Qty
                                                                        6525754 LNGQ120608ERGEKT4 LNGQ120608ERGEKT4 KCPM40 13.0000 .5118 6.3500 .2500 13.3850 .5270 0.7940 .0312 4
                                                                          List price:
                                                                          $310.60 /pkg. (pkg. of 10)
                                                                          Your price::
                                                                          Qty
                                                                          List price:
                                                                          Discount: %
                                                                          Your price::
                                                                          Replacement This item is not available
                                                                          Replacement Product This item may be available through a distributor
                                                                          Qty
                                                                          If you create a new solution, you will lose any solutions you were working on already. How would you like to proceed?
                                                                          You are about to create a duplicate . Do you want to proceed?
                                                                          You are about to delete Do you want to proceed?
                                                                          What would you like to rename your to?
                                                                          Please enter a valid name
                                                                          Please enter a name for the duplicate
                                                                          Please enter a valid name
                                                                          You are about to add to your My Solutions page. Do you want to proceed?
                                                                          Please enter a valid name
                                                                          Send a copy of

                                                                          Please enter a valid Email
                                                                          Please enter a valid name

                                                                          We have found the following CAD Drawings

                                                                          Select the files you are looking for and download them all at once

                                                                          You should be logged to see your dashboard information
                                                                          The product/s () you were trying to add to the cart is/are not available, please contact customer service.
                                                                          item(s) successfully added to the cart
                                                                          View Cart
