| SAP Material Number | 3029562 |
| ISO Catalog Number | U80 K30S-10 BUSHING |
| ANSI Catalog Number | U80 K30S-10 BUSHING |

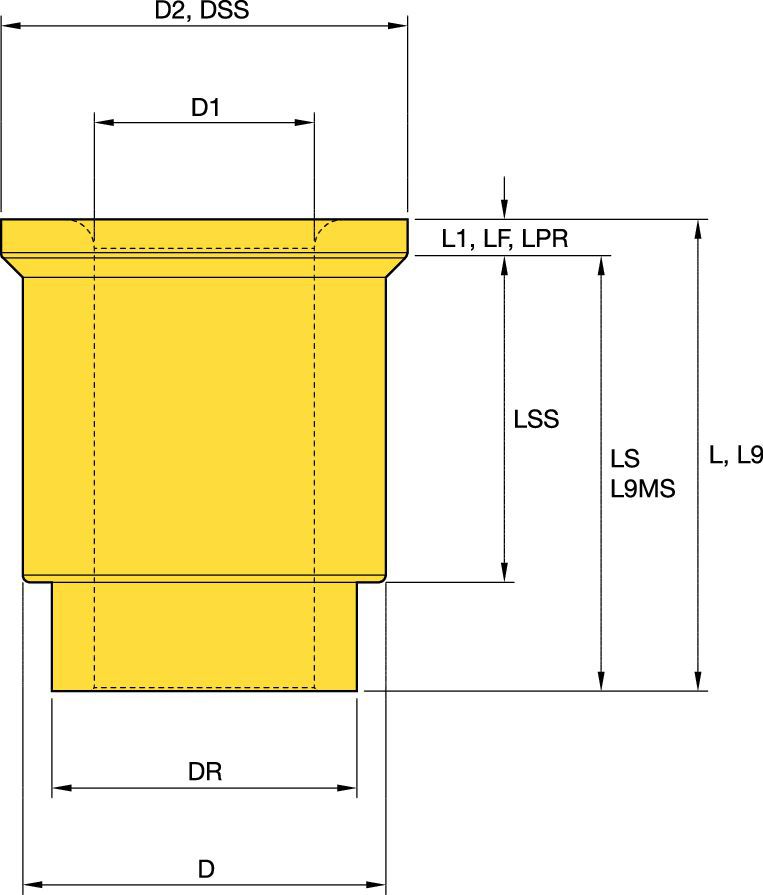

| [D] Adapter / Shank / Bore Diameter | 47.396 mm |
| [D] Adapter / Shank / Bore Diameter | 1.866 in |
| [D1] Adapter / Shank / Bore Diameter | 30.2640 mm |
| [D1] Adapter / Shank / Bore Diameter | 1.191 in |
| [D2] Body Diameter 1 Workpiece Side | 69.8500 mm |
| [D2] Body Diameter 1 Workpiece Side | 2.750 in |
| [DSS] Diameter Seating Surface | 57.15 mm |
| [DSS] Diameter Seating Surface | 2.25 in |
| [L] Overall Length | 64.6940 mm |
| [L] Overall Length | 2.547 in |
| [L1] Gage Length 1 | 15.7480 mm |
| [L1] Gage Length 1 | .6200 in |
| [L9] Clamping Length | 64.6940 mm |
| [L9] Clamping Length | 2.547 in |
| SLV_FUNCTIONAL_LENGTH_M | 15.7480 mm |
| SLV_FUNCTIONAL_LENGTH_I | .6200 in |
| SLV_PROTRUDING_L_M | 15.7480 mm |
| SLV_PROTRUDING_L_I | .6200 in |
| [LS] Shank Length | 48.946 mm |
| [LS] Shank Length | 1.927 in |
IH Treatment
Pressed ContactCódigo de catálogo ISO
